Jixiao_PWM controllers

Features:

1.Build-in industrial micro controller.

2.Big LCD display, all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

PRODUCT SPECIFICATIONS

Image Product Name Model Dimension (MM) Weight Warranty

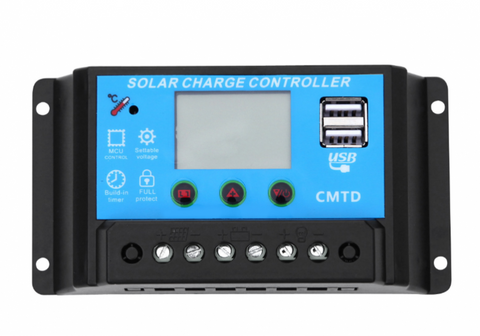

PWM Controller 12/24V 10A

PWM-10 145*80*40 0.2kg 2 year

PWM Controller 12/24V 20A

PWM-20 145*80*40 0.2kg 2 year
PWM Controller 12/24V 30A PWM-30 145*80*40 0.2kg 2 year
PWM Controller 12/24V 30A/40A JXP01/JXP02 164*103.5*47 0.39kg 2 year
PWM Controller 12/24V 50A/60A JXP06/JXP04 189.27*127.2*54 0.65kg 2 year



 Application

Jixiao_PWM controllers has four protections, which are overload protection, short-circuit protection, over voltage protection, low voltage protection. The charge regulator is  suitable for regulating solar modules.

JIXIAO_PWM CONTROLLERS

Advantages

JIXIAO_PWM CONTROLLERS
