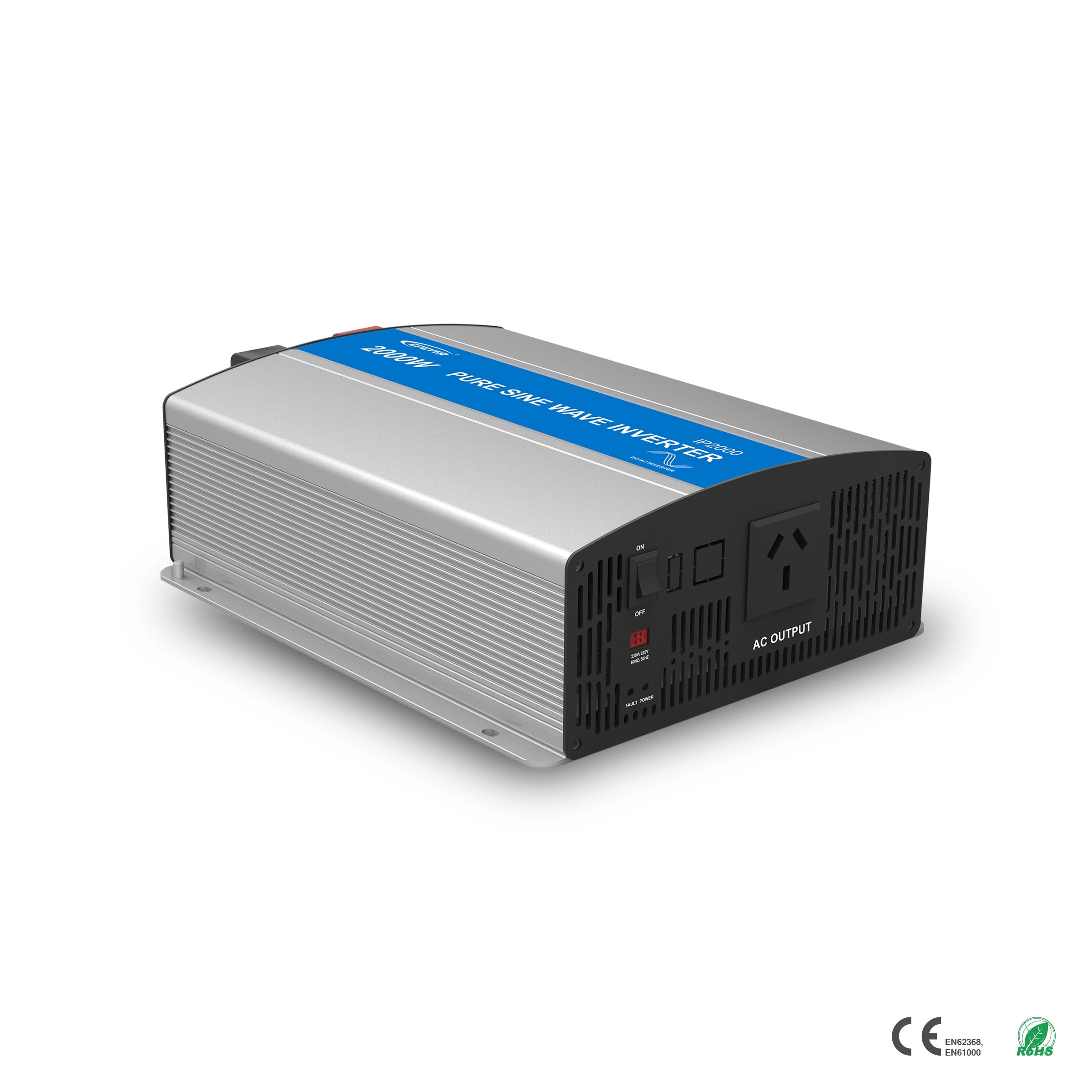

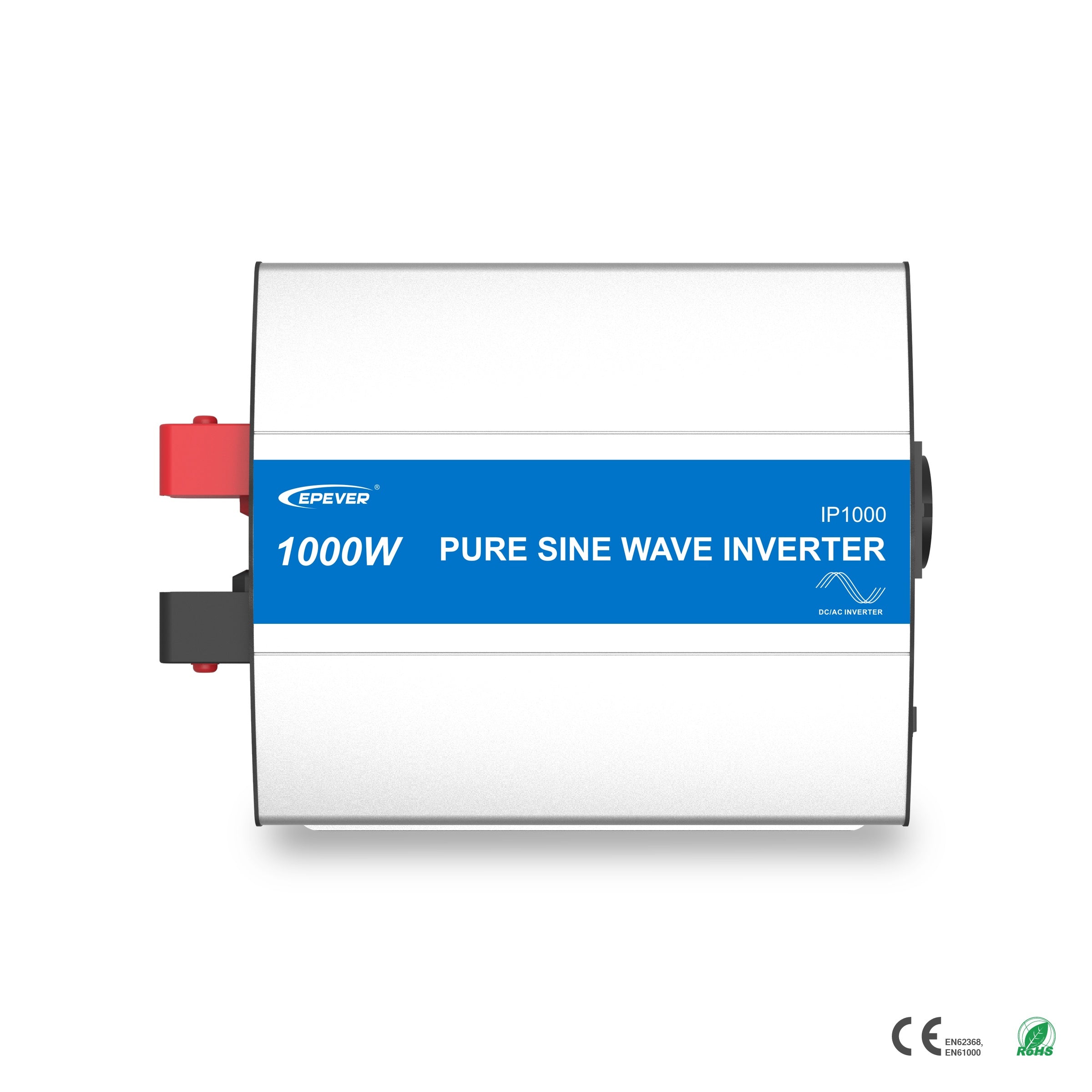

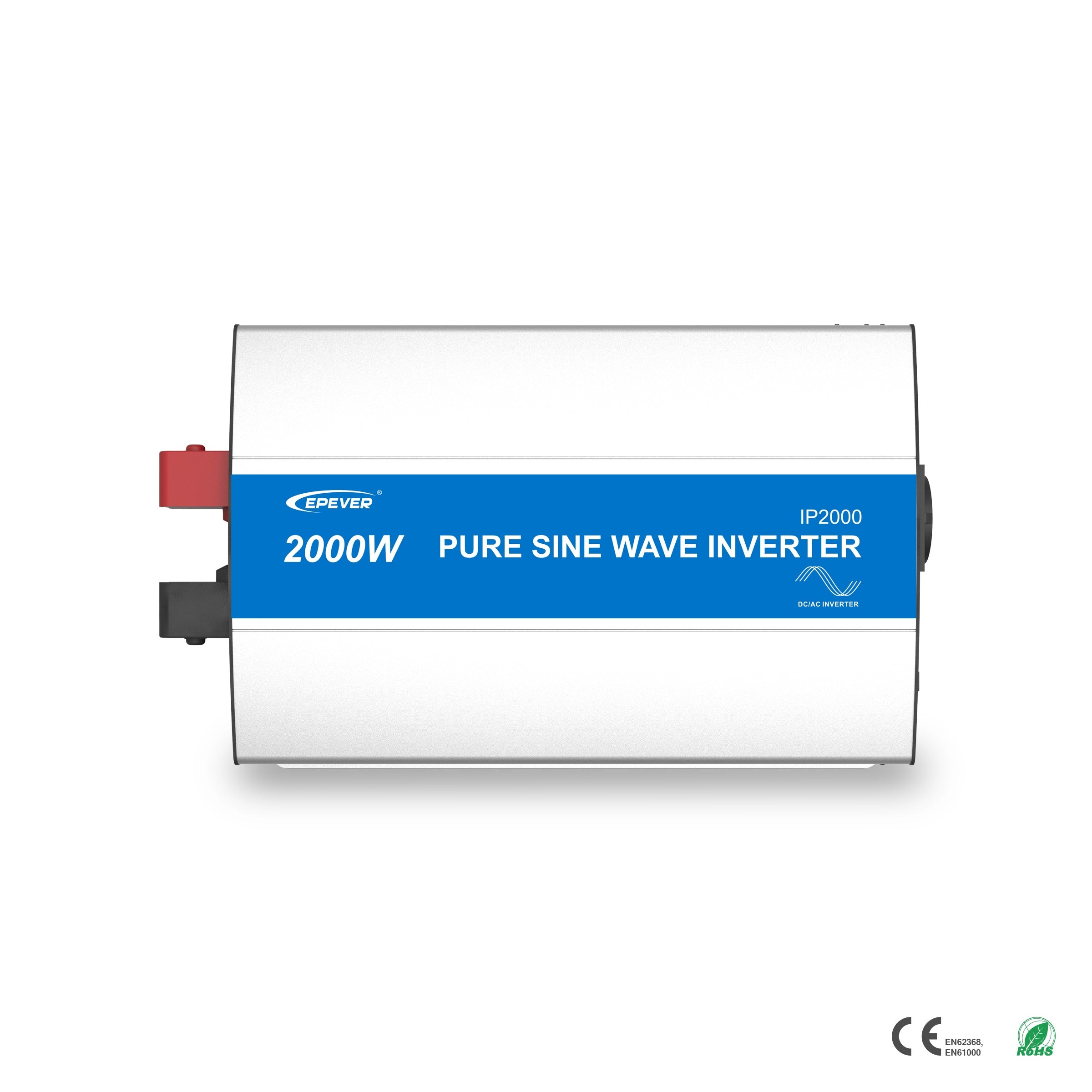

It is a pure sine wave inverter that can convert 12/24/48VDC to 110/120VAC. The power is from 350VA to 2000VA. The inverter can be applied in many fields. Its wide input voltage range is ideal for solar system applications.
System Nominal Voltage: 12VDC; 24VDC; 48VDC
Continuous output power: 280w; 480w; 800w; 1200w; 1600w
Output voltage: 110V/ 120V
Battery type: Lead-acid
1. Safe design with input and output electrical isolation
2. Adoption of advanced SPWM technology, pure sine wave output
3. Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch
4. Output frequency 50/60Hz, setted by DIP switch
5. LED indicators for working and fault status
6. Lower No-load consumption
7. Max. efficiency up to 95%
8. Input protection: Over voltage protection, low voltage protection
9. Output protection: Over load protection, short circuit protection
10.Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when over temperature.
