Jixiao_ Off-Grid Inverter (220/230VAC) 350~2000W Pure Sine Wave Inverter

Sale price

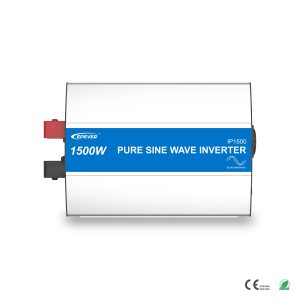

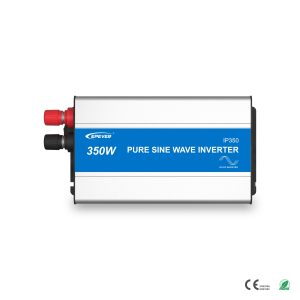

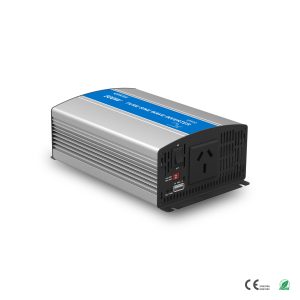

It is a pure sine wave inverter that can convert 12/24/48VDC to 220/230VAC(or 110/120VAC). The power is from 350VA to 2000VA. The inverter can be applied in many fields. Its wide input voltage range is ideal for solar system applications.


System Nominal Voltage: 12VDC; 24VDC; 48VDC

Continuous output power : 280W; 400W; 800W; 1200W;1600W

output voltage: 220V/230V

Battery type: Lead-Acid



Feature

1. Safe design with input and output electrical isolation

2. Adoption of advanced SPWM technology, pure sine wave output

3. Optional output voltage220/230VAC (or 110/120VAC ), setted by DIP switch

4. Output frequency 50/60Hz, setted by DIP switch

5. LED indicators for working and fault status

6. Lower No-load consumption

7. Max. efficiency up to 95%

8. Input protection: Over voltage protection, low voltage protection

9. Output protection: Over load protection, short circuit protection

10. Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when over temperature.



Specification Download

Manual Download
