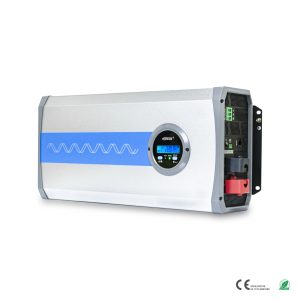

Jixiao Off-Grid Inverter (220/230VAC) 500~5000W
Jixiao Off-Grid Inverter (220/230VAC) 500~5000W
Jixiao Off-Grid Inverter (220/230VAC) 500~5000W
Jixiao Off-Grid Inverter (220/230VAC) 500~5000W
Jixiao Off-Grid Inverter (220/230VAC) 500~5000W
Jixiao Off-Grid Inverter (220/230VAC) 500~5000W
Jixiao Off-Grid Inverter (220/230VAC) 500~5000W

Jixiao Off-Grid Inverter (220/230VAC) 500~5000W

It is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 5000W, Ipower-Plus is compatible with lithium-ion batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.



System Nominal Voltage: 12VDC; 24VDC;48VDC.

Continuous output power :  500W; 1000W;1500W; 2000W;3000W; 4000W;5000W.

output voltage: 220V/230V

Battery type: Lead-Acid/Lithium



Feature

1. Pure sine wave output
2. Input to output electrical isolation
3. Digital dual closed-loop control of voltage and current
4. Input surge current suppression for lithium battery systems
5. Output power factor up to 1

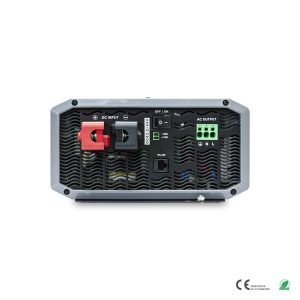

6. Simple system wiring & 180 degrees rotating LCD
7. Input Protection: Reverse polarity, Low-voltage, Over-voltage
8. Output Protection: Overload, Short circuit, Overheating
9. Phone and PC remote control through RS485 port
10. Extra external switch port
11. Safety (EN/IEC62109) & EMC approved by international standards

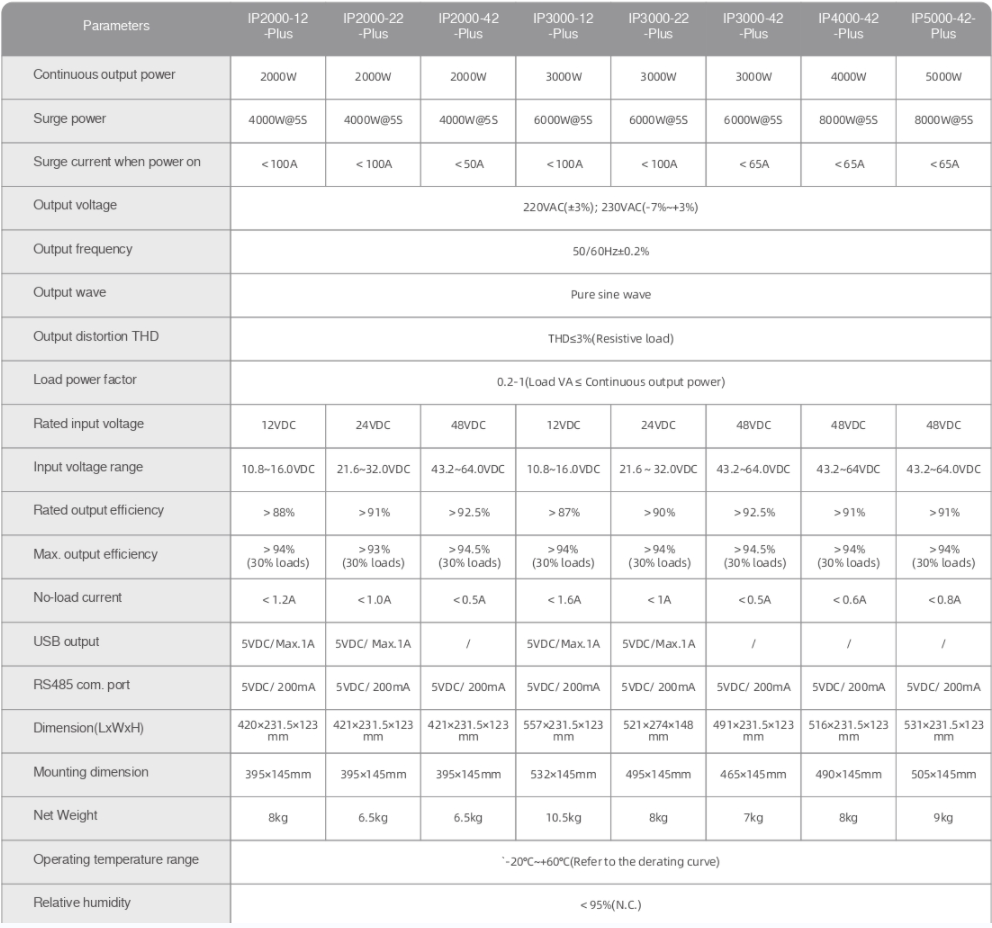

Specification Download

Manual Download
