Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W
Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W
Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W
Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W
Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W
Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W
Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W

Jixiao_ Off-Grid Inverter (110/120VAC) 500~4000W

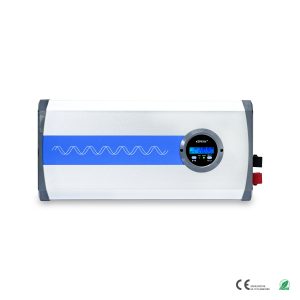

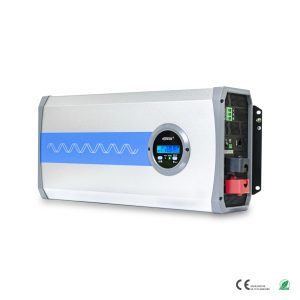

IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 110V/120V AC and power the AC loads. It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 4000W, Ipower-Plus is compatible with lithium-ion batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.



 System Nominal Voltage: 12VDC; 24VDC;48VDC.
Continuous output power : 500W; 1000W; 1500W; 2000W;3000W; 4000W.
output voltage: 110V/120V
Battery type: lead-acid/Lithium



Feature

1. Pure sine wave output

2. Input to output electrical isolation

3. Digital dual closed-loop control of voltage and current

4. Input surge current suppression for lithium battery systems

5. Output power factor up to 1

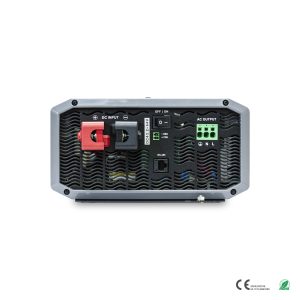

6. Simple system wiring & 180 degrees rotating LCD

7. Input Protection: Reverse polarity, Low-voltage, Over-voltage

8. Output Protection: Overload, Short circuit, Overheating

9. Phone and PC remote control through RS485 port

10. Extra external switch port

11.Safety (EN/IEC62109) & EMC approved by international standards

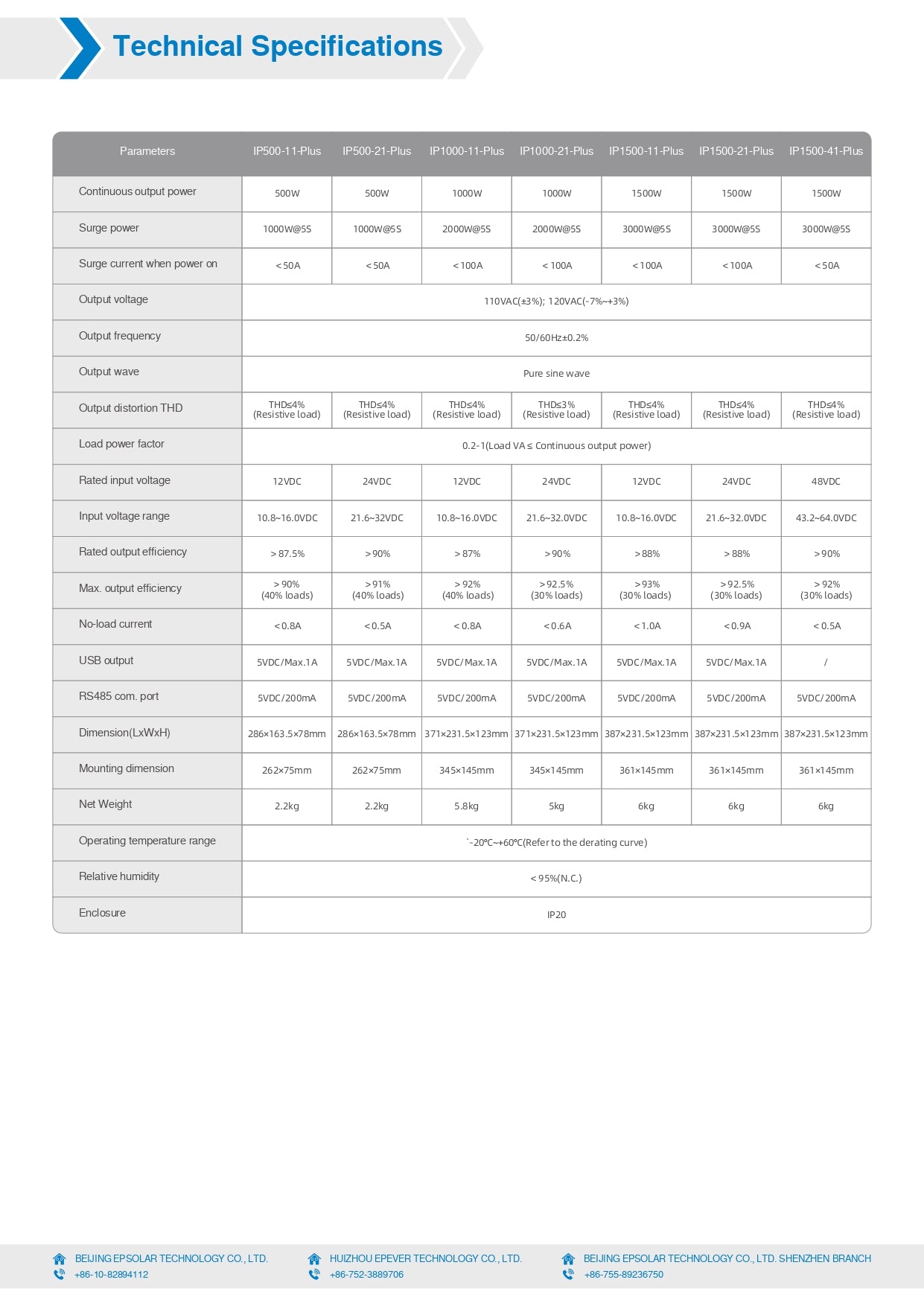

Specification Download

Manual Download
