Flexible solar panel - Xinpuguang@_Flexible Series

A kind of new and creative solar panel in the solar industry. The lightweight nature of flexible solar panels makes solar panels more effective for use in RVs, caravan,boats, tents, trailers, cabin, etc.

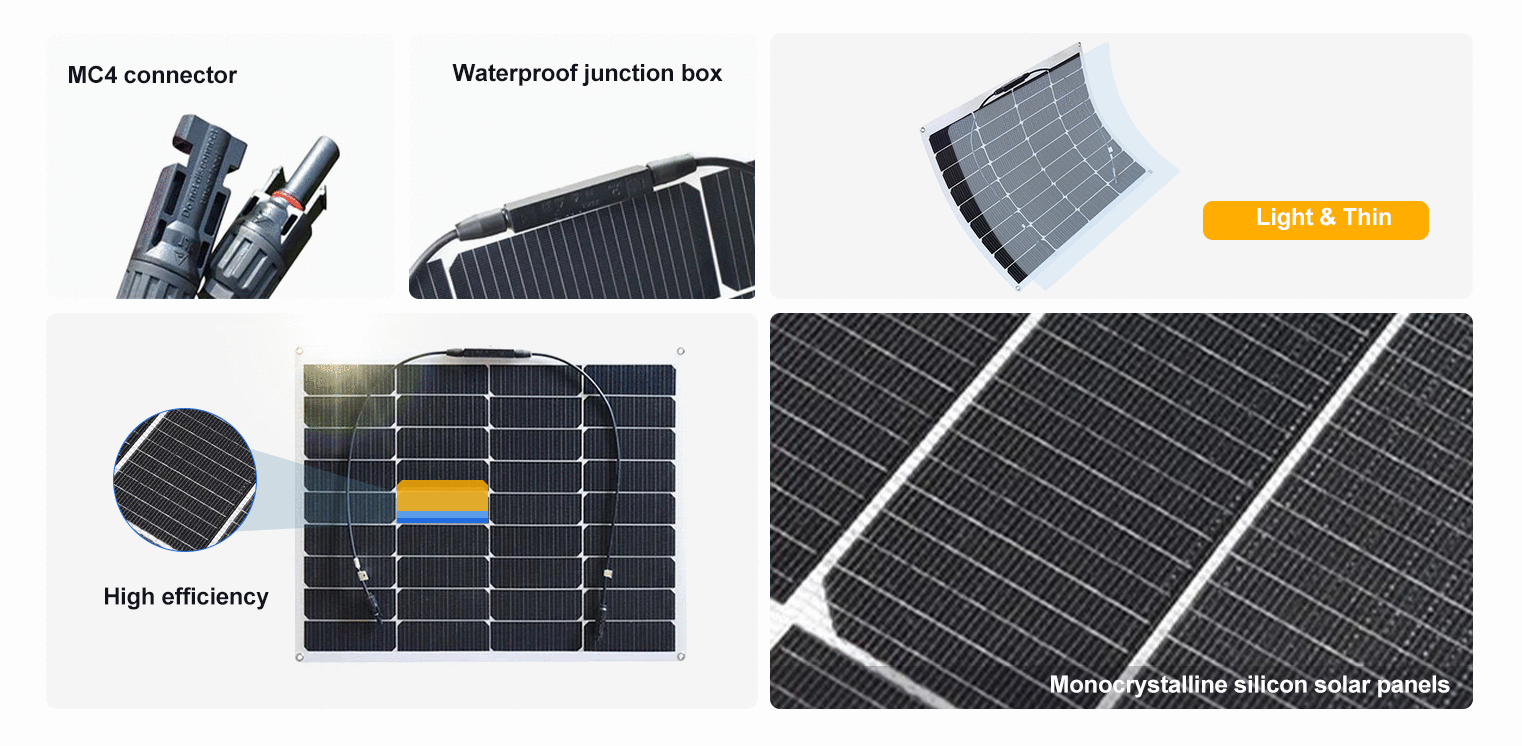

 xinpuguang flexible solar panels



Good weather resistance,Well waterproof,Good bend ability

①High photoelectric conversion efficiency. This bendable solar panel is thin and lightweight, easy to transport and remove.

②The solar panel can be curved to a maximum 30 degree arc. It is capable of meeting a wide range of applications,such as on the curved roof.

③80% lighter than glass solar panels and only 3mm thick, easy to carry, transport and install.

④Easy to clean. Be free from maintenance, rainfall can easily wash away dust and other foreign objects on the surface due to its nonstick surface.





Xinpuguang@_Flexible Series

Xinpuguang@_Flexible Series solar panel is a kind of new and creative solar panel in the solar industry. It uses high-efficiency Monocrystalline solar cells that offer higher efficiency up to 21% or more than traditional solar in sunny weather conditions. This bendable solar panel is thin and lightweight, easy to transport and remove.

Surface--Customizable (ETFE/PET/TPT)



PRODUCT SPECIFICATIONS

Image Product Name Model Cells Efficiency Surface material Dimension (mm) Solar cell Weight Warranty
10W 18v Flexible solar Panel 201010020 19.80% PET 440x190X3 Mono cell 0.1KG 3 year
20W 18v Flexible solar Panel 201010040 19.80% PET 420X330X3 Mono cell 0.2KG 3 year
25W 18v Flexible solar Panel 201010168 19.80% PET 340X465X3 Mono cell 0.43KG 3 year
30W 18v Flexible solar Panel 201010077 19.80% PET 510x330x3 Mono cell 0.45kg 3 year
40W 18V Flexible Solar Panel 201010045 19.80% PET 575×500×3 Mono cell 1.05KG 3 year
50W 16V Flexible Solar Panel / 19.80% PET 545×535×3 Mono cell 1.6KG 3 year
60W 18V Flexible Solar Panel 201040002 19.80% PET 670X535X3 Mono cell 0.9KG 3 year



Application

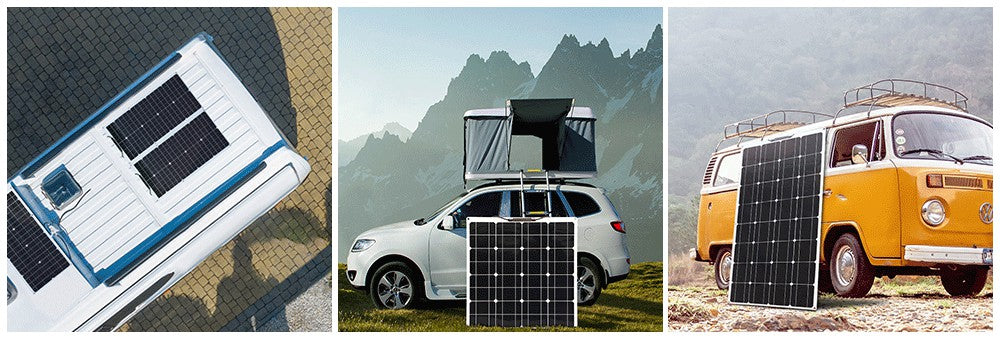

Applied to Golf cars, Yachts, Boats, RVs,Caravans, Electric vehicles, Travel tourism cars, Patrol cars, roofs, camping, roof power generation, tents, ships,etc.
