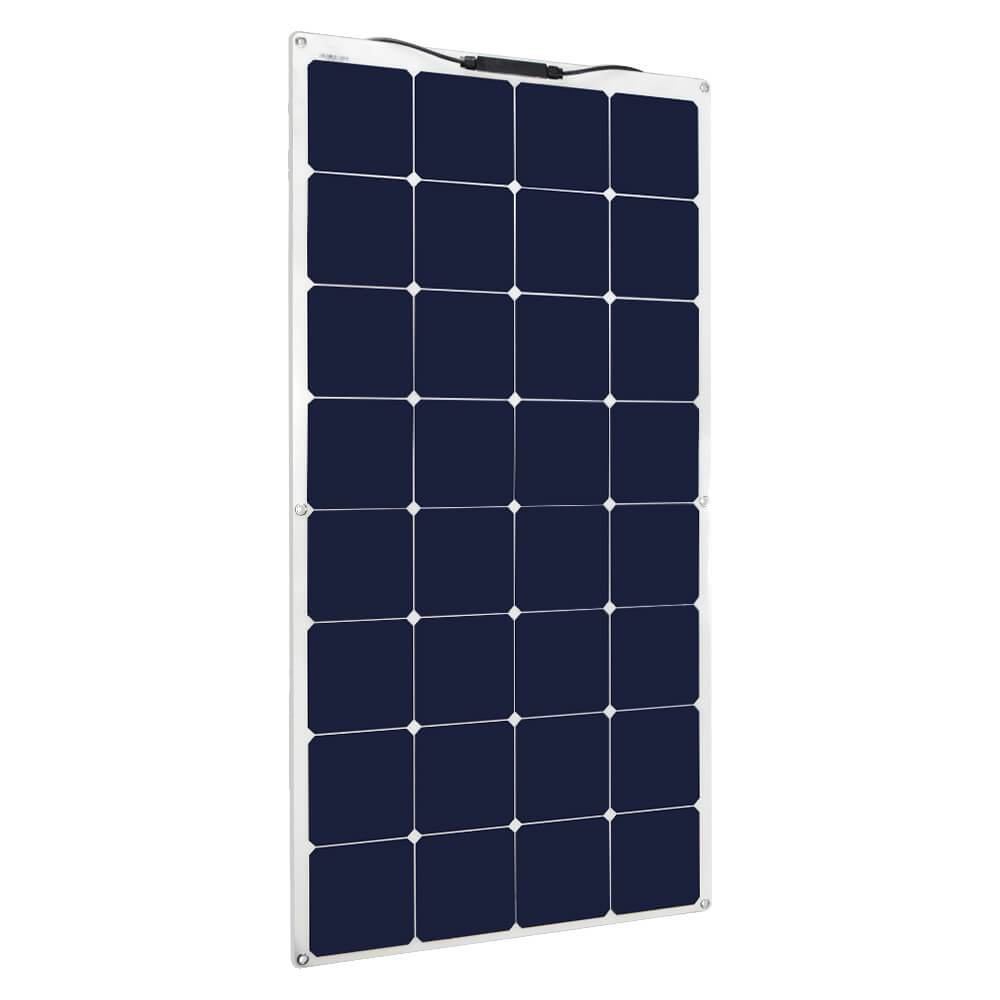

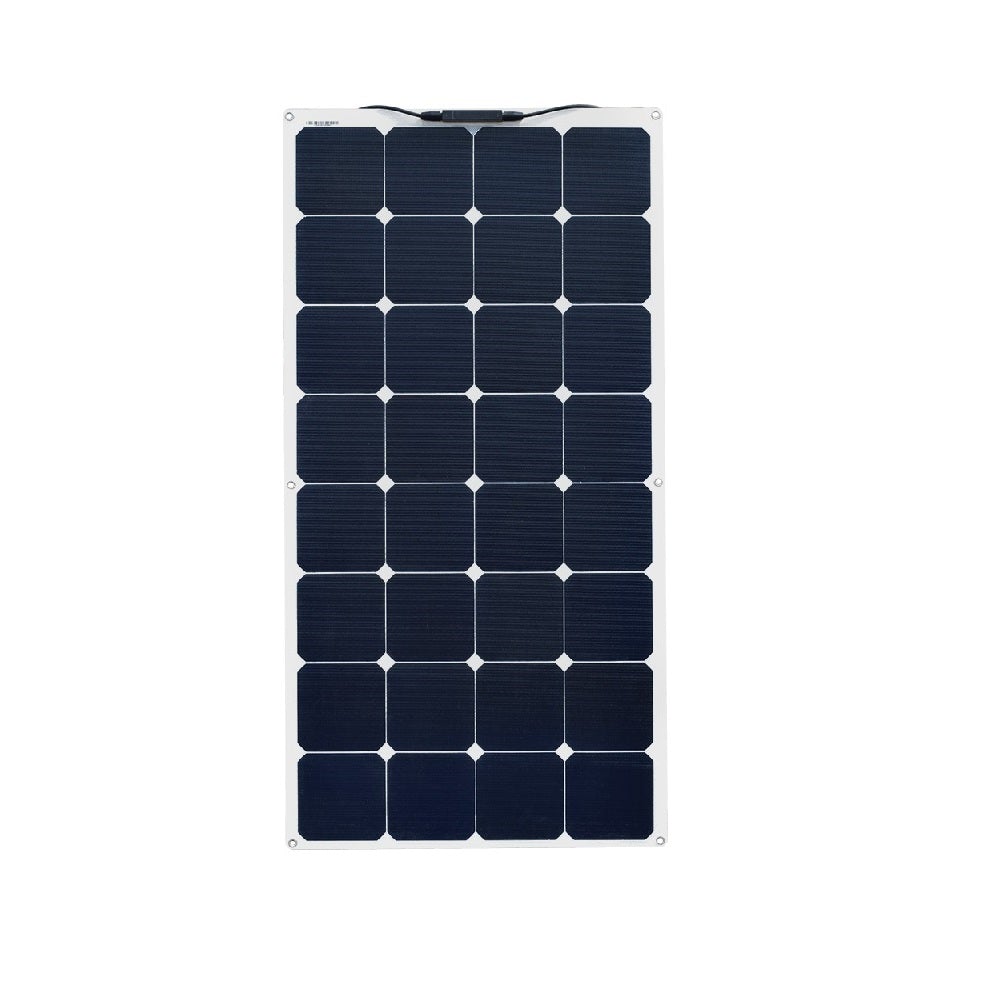

Solarparts@Sunpower Flexible solar panel PET 100W 17.6V 1050x540x3mm

Sale price

Flexible solar panel - Solarparts series

Solarparts@_Flexible Series Solar Panel adopts SP highest-efficiency solar cells. It delivers the most power and highest charging efficiency in their product class. SP cells are different from conventional cells. Traditional cells are prone to cracking when bent or impacted, resulting in power loss, but flexible panels made with SP cells can resist power loss due to bending and squeezing. Solarparts@_Flexible Series Solar Panels are the best choice for customers due to the combination of high power and cell ruggedness.



Model: PG-SP-FSP-100W

Product Description:

  1. Adopts SP highest-efficiency solar cells -- 22.4%-23.6% conversion, higher than average.

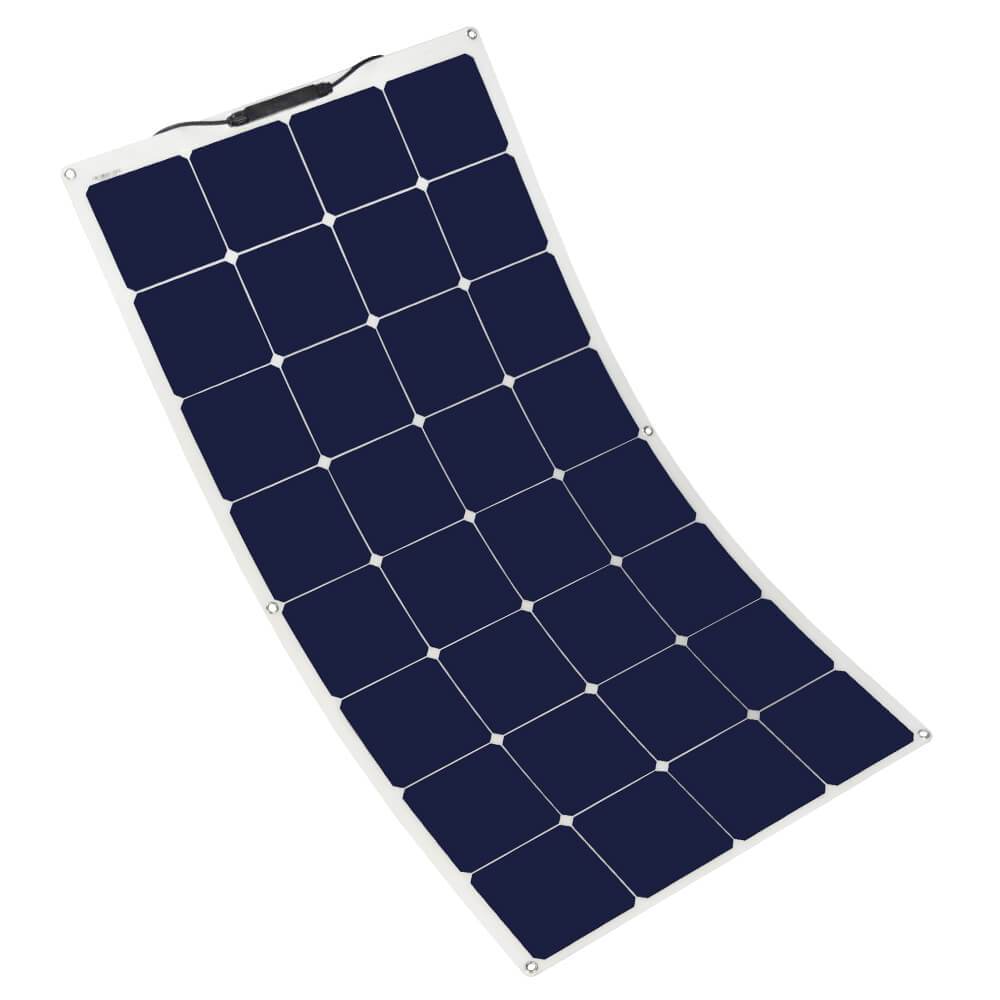

  1. Better flexibility -- bendable up to a maximum of 30 degrees. compared to other cells, SP cells are not easy to break.
  1. Ultra-Thin & Ultra-Light Design-- Constructed with top-grade, light-weight polymer materials, allowing for easy transport, installation.
  1. Exquisite appearance--There are no grid lines on the surface of SP cells

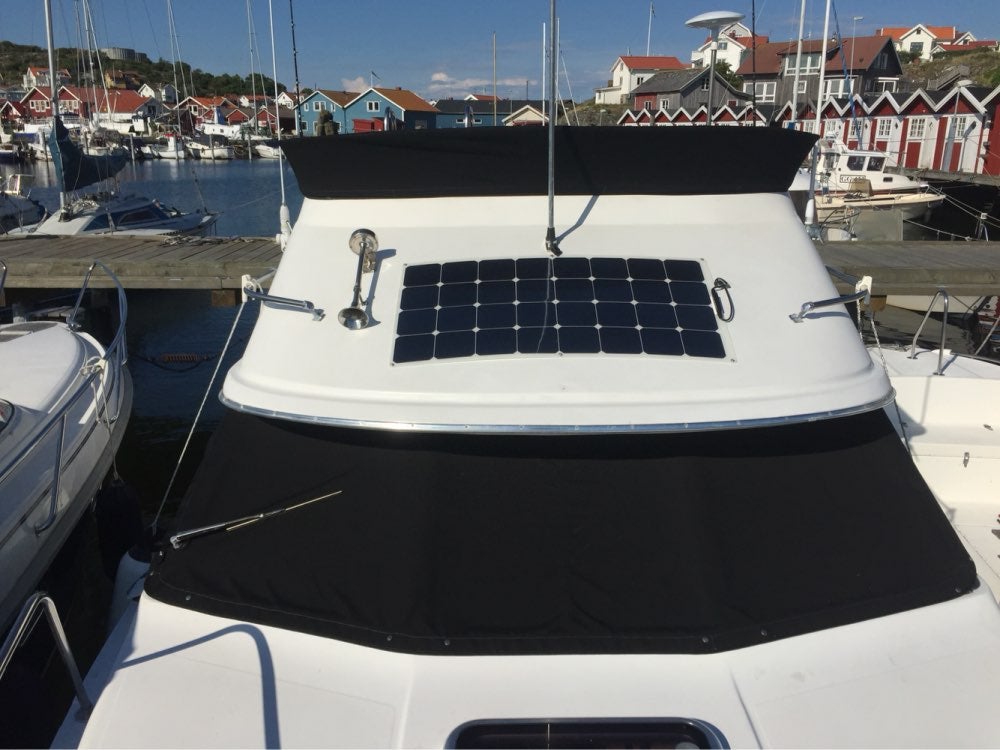

  1. Designed for 12V batteries, ideal for trailers, boats, cabins, tents, cars, trucks, trailers, yachts, trailers, roofs, or any other irregular surface.



The standard specification

Maximum power (pmax)

100W

Solar cell

125*125mm SP solar cell

Performance Tolerance

± 5%

Maximum voltage

700V DC

Open circuit voltage (VOC)

21.12V

Short circuit current (ISC)

1.53 A

Maximum voltage (VMP)

17.6V

Maximum Current (IMP)

5.68A

Operating Temperature (NOCT) degrees

± 2 degrees

Temperature range

-40C~+60C

Size

1050*540*3mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

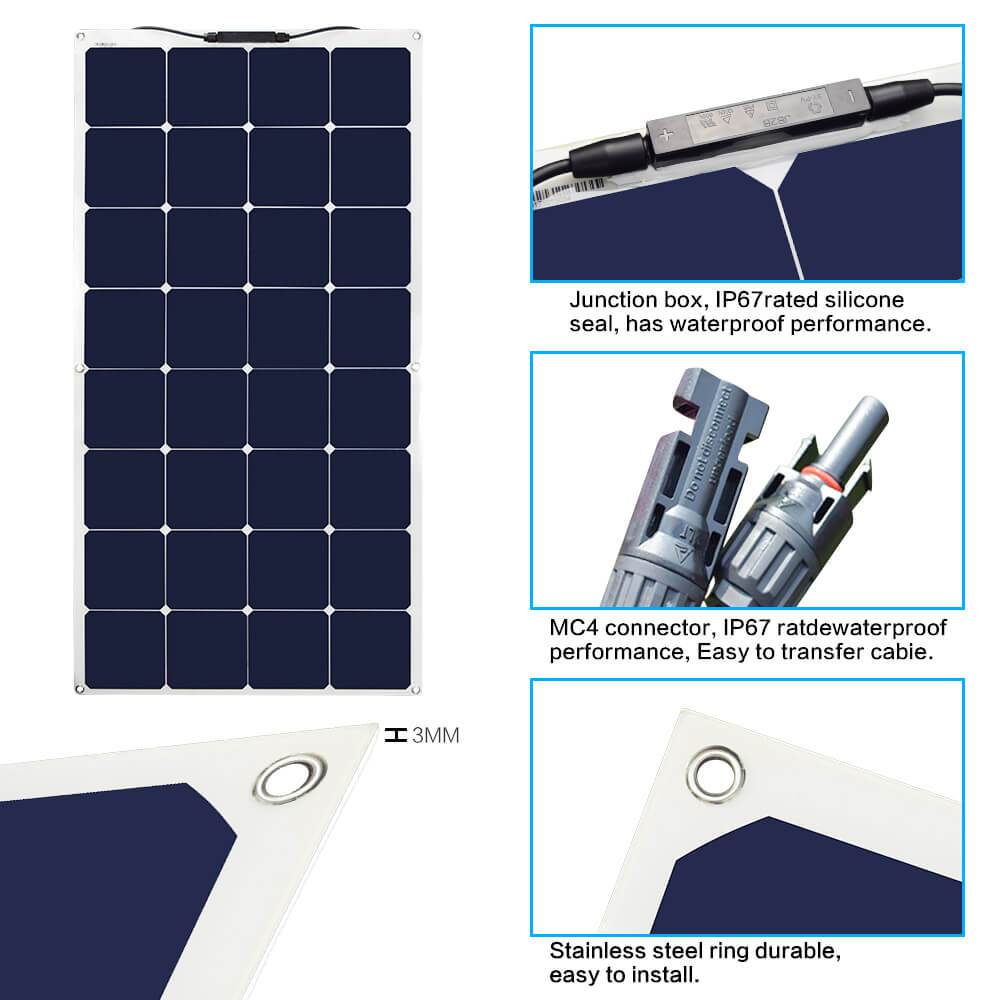

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5

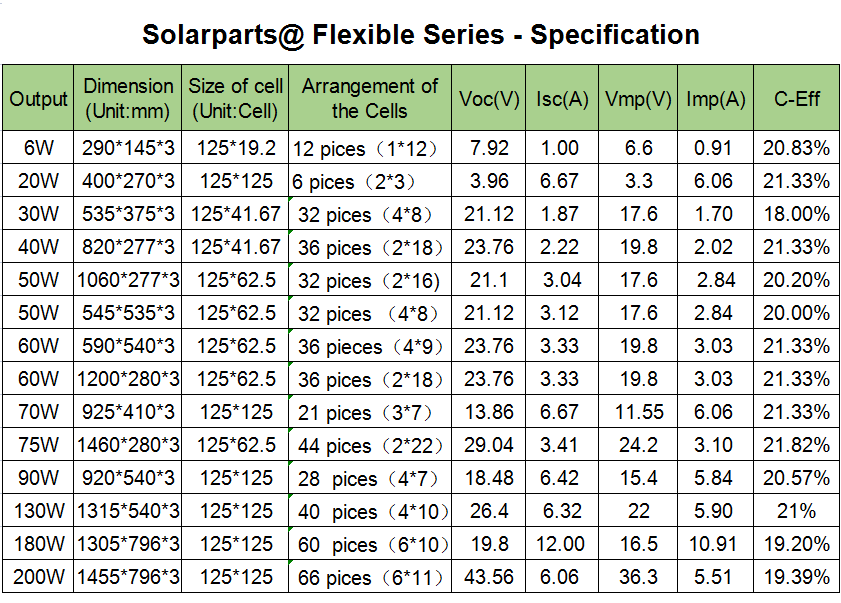

List More specifications as below ,  also it can be customized for you.

Specification

Pmax

Dimension

(Unit:mm)

Voc(V)

Isc(A)

Vmp(V)

Imp(A)

C-Eff

6W 290*145*3 7.92 1.00  6.6 0.91 20.83%
20W 400*270*3 3.96 6.67  3.3 6.06 21.33%
30W 535*375*3 21.12 1.87  17.6 1.7 18.00%
40W 820*277*3 23.76 2.22  19.8 2.02 21.33%
50W 1060*277*3 21.1 3.04  17.6 2.84 20.20%
50W 545*535*3 21.12 3.12  17.6 2.84 20.00%
60W 590*540*3 23.76 3.33  19.8 3.03  21.33%
60W 1200*280*3 23.76 3.33  19.8 3.03  21.33%
70W 925*410*3 13.86 6.67  11.55 6.06  21.33%
75W 1460*280*3 29.04 3.41  24.2 3.10  21.82%
90W 920*540*3 18.48 6.42  15.4 5.84  20.57%
130W 1315*540*3 26.4 6.32  22 5.90  21.00%
180W 1305*796*3 19.8 12.00  16.5 10.91  19.20%
200W 1455*796*3 43.56 6.06  36.3 5.51  19.39%
