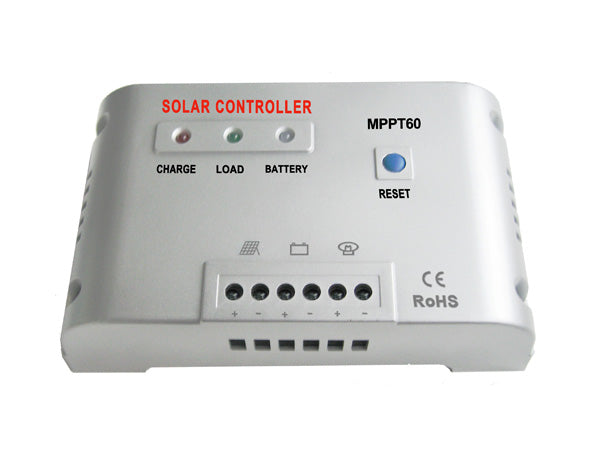

MPPT controllers

MPPT charge controller optimally charges batteries when using PV modules of grid-connected system.
It is a simple and reliable device providing maximum flexibility in module configuration. It is also possible to use thin film modules with this device. The latest technology guarantees the professional battery care combined with modern design and outstanding protection features.

Specification:

Model Photo Voltage(V) Current(A) Size(mm) Weight(kg)
MPPT15 12/24 10 250*155*10 0.26
12/24 15
MPPT30 48 10 315*255*10 0.75
48 15
12/24/48 20
12/24/48 30
MPPT60

12/24/48 40 490*255*10 1.1
12/24/48 50
12/24/48 60
12/24 80


Features:
MPPT solar charge controller MPPT10-60: Compared with normal solar charge controller,
this MPPT controller could increase efficiency by 10%-30%.
This controller can charge and discharge at the same time.
This MPPT controller has perfect SOC function, control charge current, and supply power to the loads.

Connection
As shown in the following diagram of connection, there are 6 terminals on the controller with clear sign.
