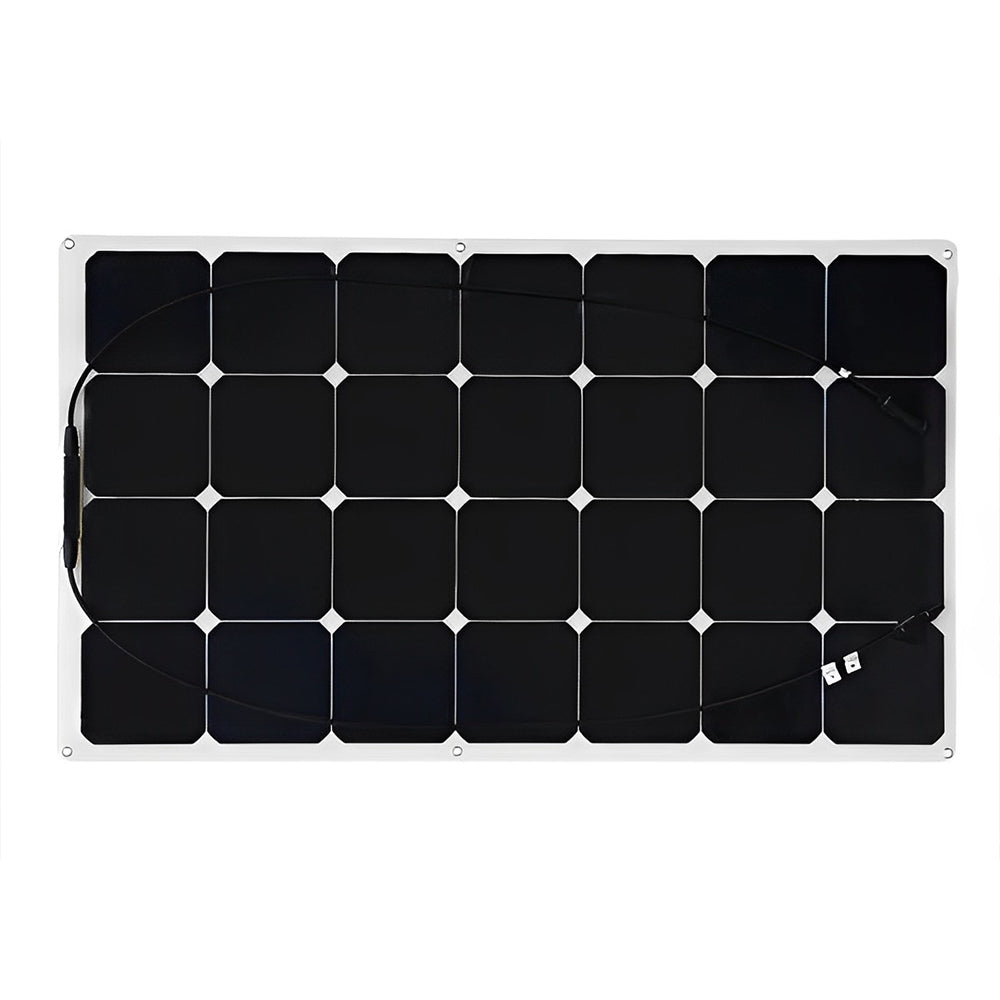

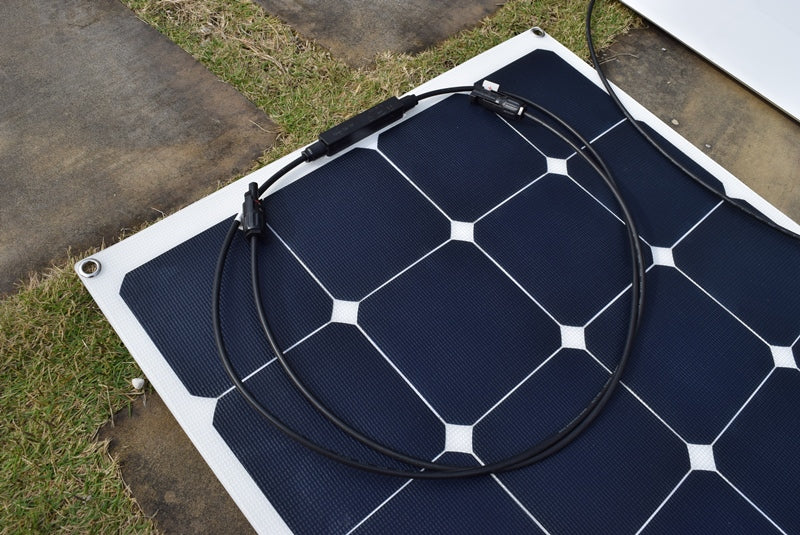

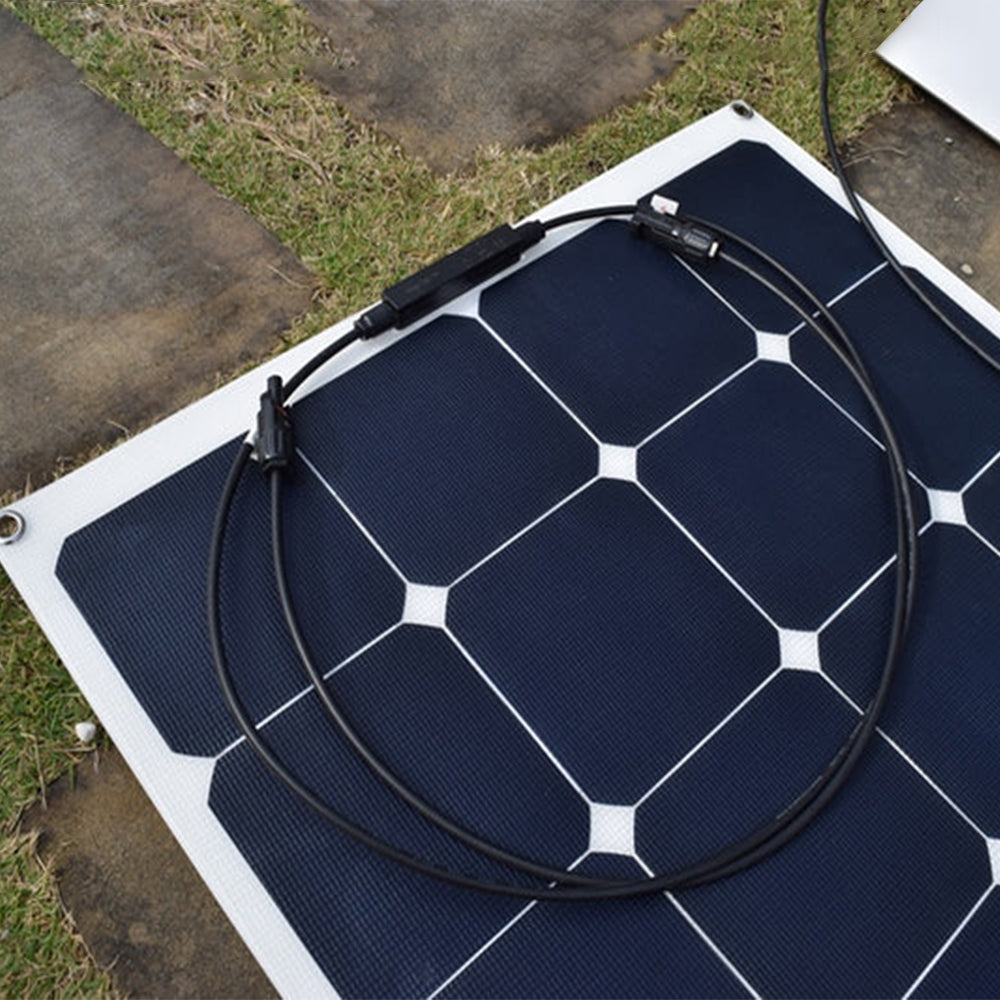

ETFE flexilbe solar panel

ETFE flexible solar panel and aluminum board flexible solar panel
Longest lifetime
Powerful performance
High quality
Anti-corrosive

---ETFE laminated solar modules

·3mm Thickness and semi flexible

·with high performance mono crystalline solar cells

·Light weight and portable

·Longest lifetime

·Marine grade and anti-corrosive


Model Power(W) Vmp(V) Imp(A) Voc(V) Isc(A) Size(mm) Weight(KG)
11501 18 19.5 0.92 23.7 1.073 505*277*3mm 0.29
11502 30 17.6 1.70 21.2 2.02 535*445*3mm 0.75
11503 40 19.5 2.33 23.6 2.05 535*487*3mm 0.90
11504 50 17.6 2.84 21.6 3.05 615*535*3mm 1.20
11505 100 17.7 5.70 21.7 6.10 1120*540*3mm 1.85
11506 150 26.8 5.60 32.1 6.15 1126*796*3mm 2.68
11507 180 32.92 5.48 39.8 5.85 1370*796*3mm 3.00
11508 200 18.10 11.04 21.7 12.15 1508*796*3mm 3.30


STC: Irradiance 1000W/ m2,  Temperature 25,  AM=1.5
