1.Build-in industrial micro controller.

2.Big LCD display, all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

PRODUCT SPECIFICATIONS

Image	Product Name	Model	Dimension (MM)	Weight	Warranty
	PWM Controller 12/24V 10A	PWM-10	145*80*40	0.2kg	2 year
	PWM Controller 12/24V 20A	PWM-20	145*80*40	0.2kg	2 year
	PWM Controller 12/24V 30A	PWM-30	145*80*40	0.2kg	2 year
	PWM Controller 12/24V 30A/40A	JXP01/JXP02	164*103.5*47	0.39kg	2 year
	PWM Controller 12/24V 50A/60A	JXP06/JXP04	189.27*127.2*54	0.65kg	2 year

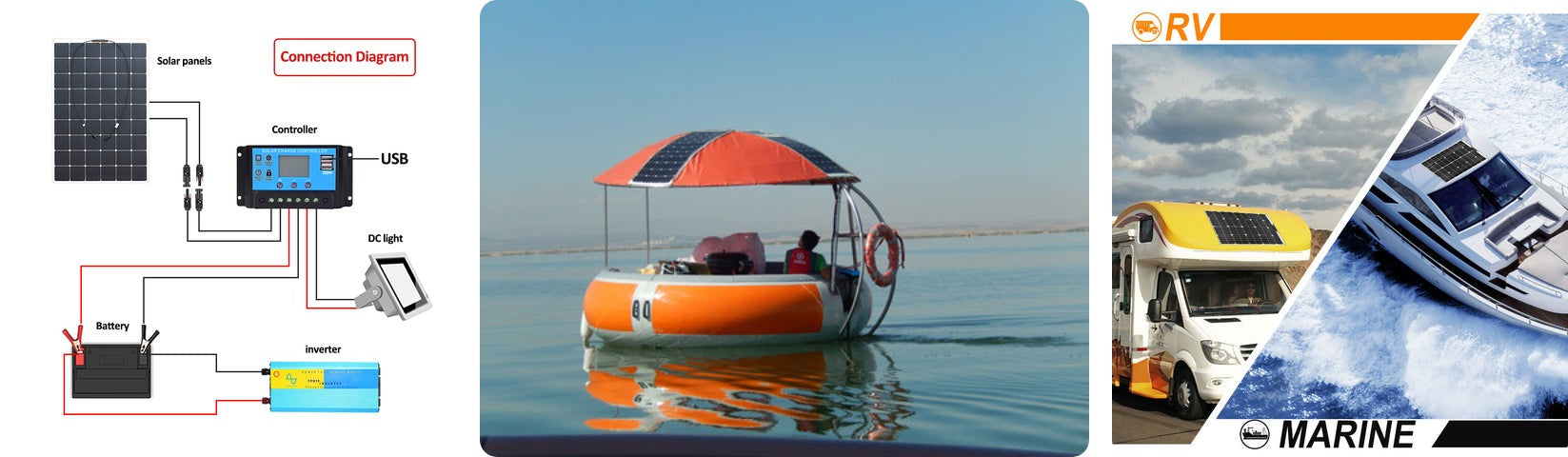

 Application

Jixiao_PWM controllers has four protections, which are overload protection, short-circuit protection, over voltage protection, low voltage protection. The charge regulator is  suitable for regulating solar modules.

Advantages
