20KW Off Grid Solar Power System

isolarparts

20KW Off Grid Solar Power System

セール価格

What is off grid system?

The off-grid photovoltaic system is generally composed of a photovoltaic array composed of solar cell modules, solar charge and discharge controller, battery pack, off grid inverter, DC load and AC load.

Specification

1. Solar panel
The solar cell module is the main part and also the most valuable component in the solar power supply system. Its function is to convert the solar radiation energy into DC energy.
2. )Solar charge and discharge controller (also known as "photovoltaic controller")
It is used to regulate and control the electric energy generated by solar cell modules. In addition, it is used to charge the battery to the greatest extent and protect the battery from overcharge and over-discharge.
3.)Battery
It is used to store the electricity generated by solar panels during the day for use when there is no light.
4.Off-grid inverter
The off-grid inverter is the core component of the off-grid power generation system, which is responsible for converting DC into AC for AC load. Only DC load can not need the inverter



Product Name

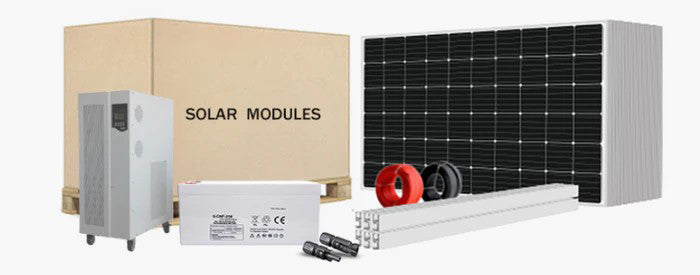

20KW Off Grid Solar Energy System Configuration List
Solar Panels
20KW Poly/Mono Solar Panel, Full Cell/Half Cell Optional
DC Combiner Box
1 unit (Switches, Breaker, SPD)
Off grid Inverter
1 unit 20KW 192V DC Voltage, 380V/400V/415V Three Phase AC Output Voltage
Solar Charge Controller
1 unit 192V 100A MPPT/PWM Type
Solar Battery
16pcs or 32pcs 12V 200/250Ah GEL/AGM type or 192V High Voltage Series Lithium ion
PV Cable
4 rolls, 4m㎡ or 6 m㎡ Black or Red
MC4 Connector
20 pairs. MC4; 30A/1000Vdc
Installation Brackets
1 set, Roof or Ground. Aluminum/Galvanized steel; Customized as request
Installation Tools
MC4 spanner, Crimping pliers, wire stripper
Technical Specification, Installation Manual, Quotation List, plz contact with our sales manager.



How to chose the suitable solar system?

1. Choosing solar energy system base on Installation area;

2. Choosing solar energy system base on your electricity bill;

3. Choosing solar energy system base on your home appliance capacity;

4. Choosing solar energy system base on your money/budget.

Application

Roofs of villas, residential buildings, schools, hotels, factories, etc; RV, yacht, street lamp and monitoring power generation system, photovoltaic building integration, photovoltaic water pump irrigation system, wind-solar complementary power generation, etc.
