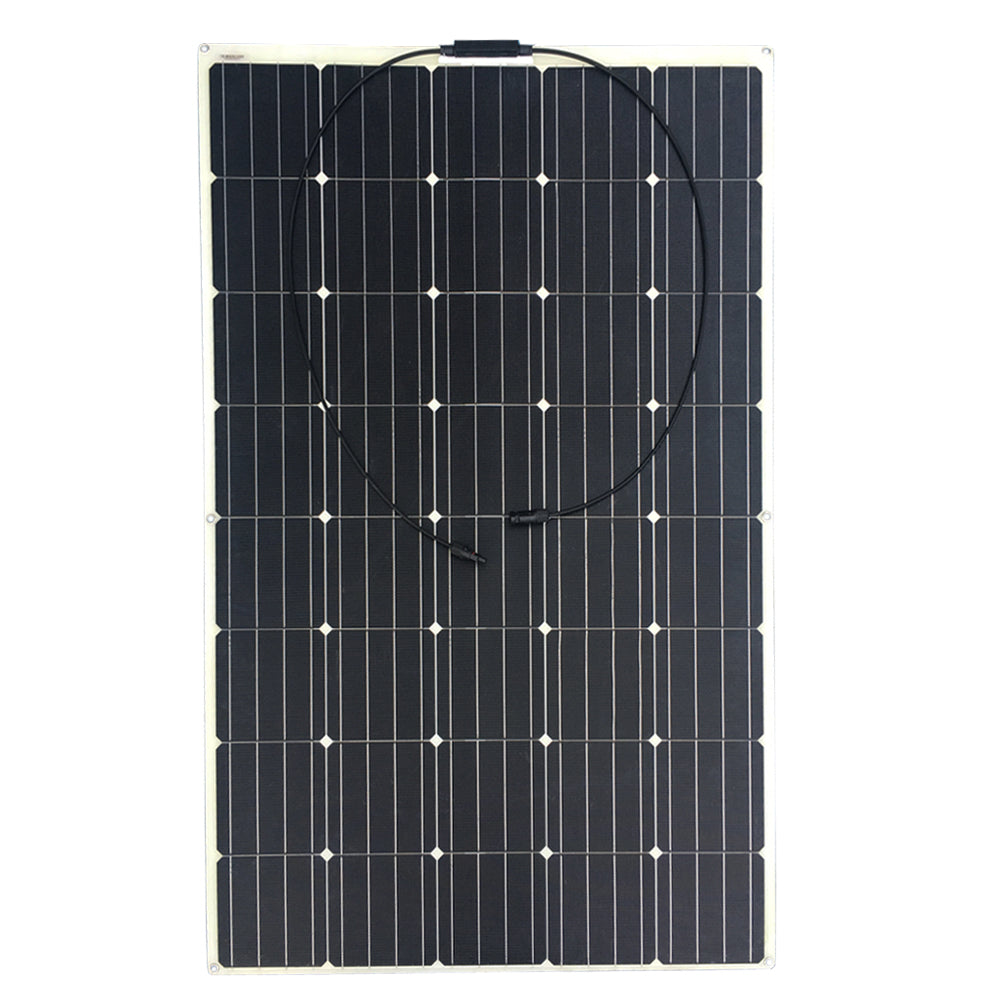

Xinpuguang@ 15V 180W Monoctrystalline ETFE Flexible Solar Panel - 1305*825*3mm

Adopt high efficiency monocrystalline cell with a conversion efficiency of more than 19.8%, conversion rate can reach up to 21%.

Model:PG-FSP180W

Product description:

Ultra-light

80% lighter than glass solar panels and only 3mm thick.

Self-cleaning

Nonstick surface makes rainfall easily wash away dust and other foreign objects.

Well waterproof

Made of advanced waterproof materials, suitable for surface installation in many water activity types of equipment.

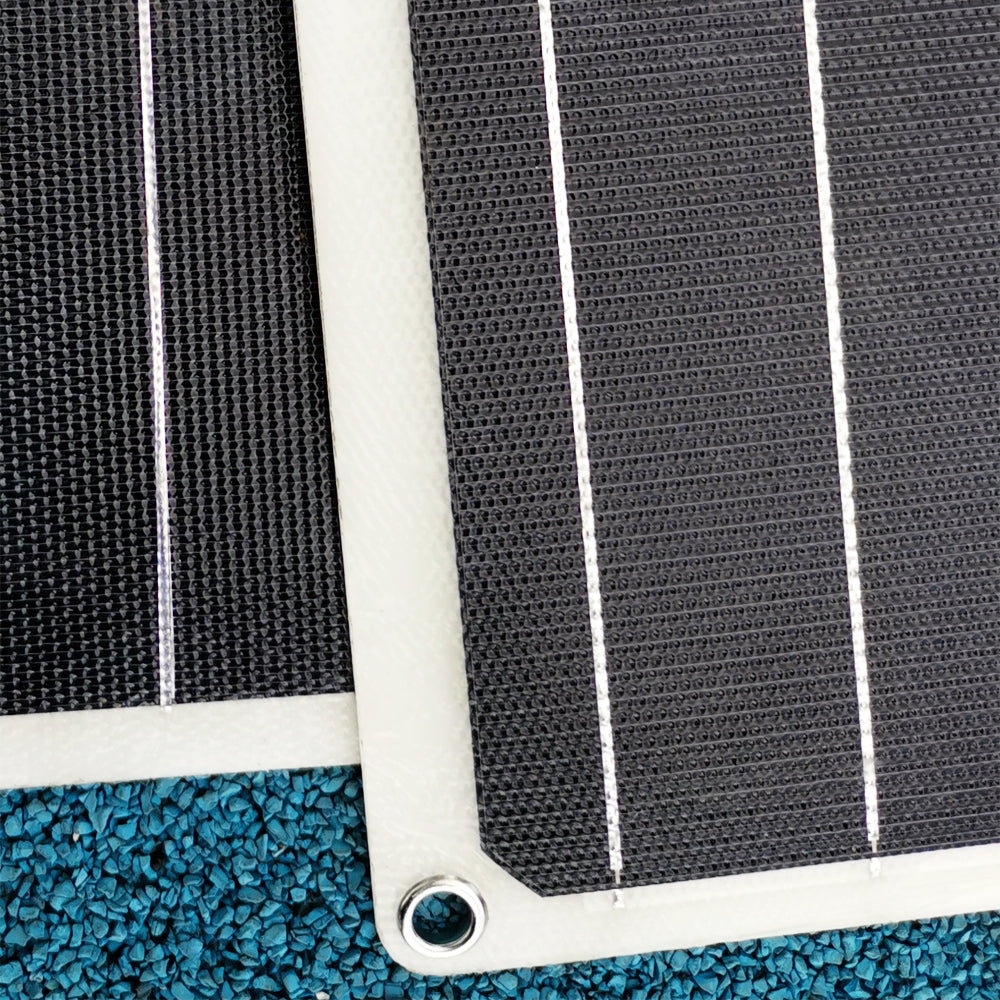

Easy installation

Equipped with spaced metal grommet mounting holes are available to attach fasteners.

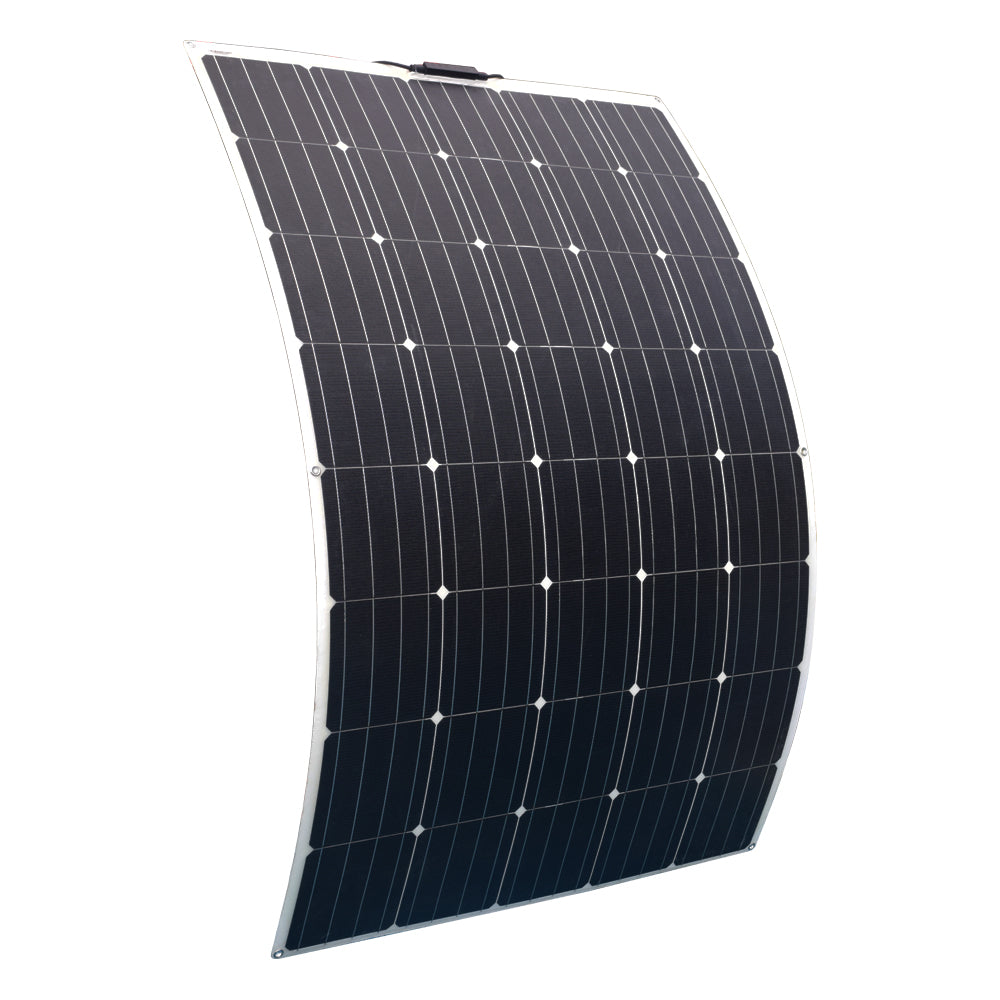

High flexibility

Can be bent 30 degrees, and be installed on most curved surface.

Broad compatible

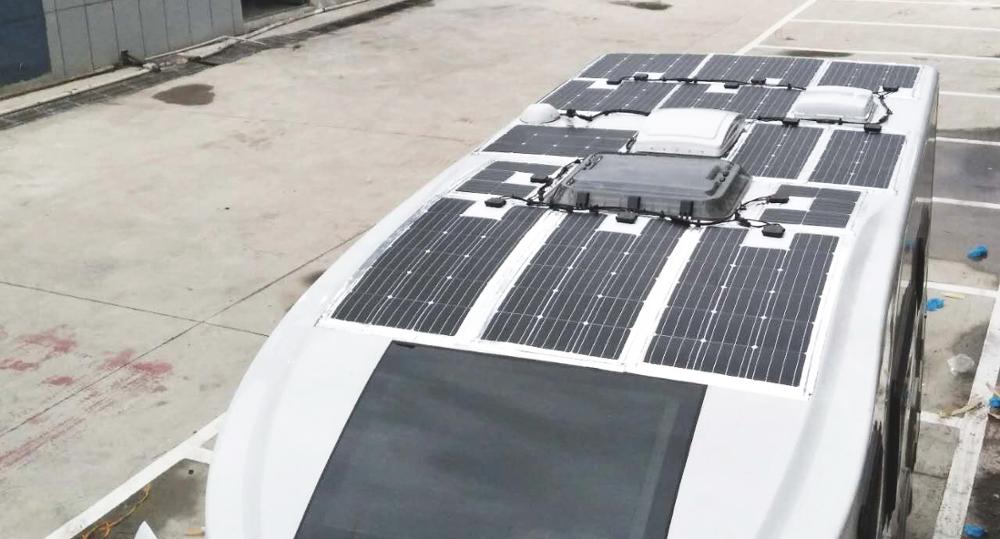

Perfect for Golf cars, Yachts, Boats, RVs,Caravans, Electric vehicles, Travel tourism cars, etc.



The standard specification

Maximum power (pmax)

180W

Solar cell

 Mono

Performance Tolerance

± 5%

Maximum voltage

700V DC

Open circuit voltage (VOC)

18V

Short circuit current (ISC)

13.2A

Maximum voltage (VMP)

15V

Maximum Current (IMP)

12A

Operating Temperature (NOCT) degrees

± 2 degrees

Temperature range

-40C~+60C

Size

1305*825*3mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5
