Solarparts@LiFe PO4 lithium battery 12.8V 50Ah
Features:
1. 4000 cycles @80% DoD for effectively lower total of ownership cost;
2. Low maintenance batteries with stable chemistry;
3. Battery Management System (BMS) is incorporated against abuse;
4. up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;
5. Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;
6. Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;
7. Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Application
•Caravan
•Marine
•Golf Car
•Buggies

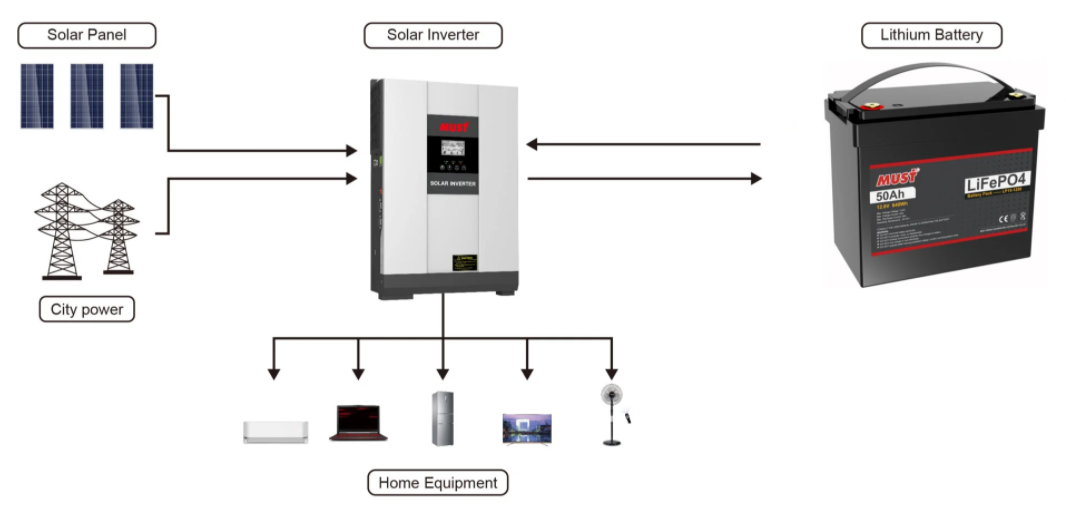

•Solar Storage
•Remote Monitoring
•Switching applications and more
Specification
Model | JX220802 | |
Nominal voltage | 12.8V | |
Nominal Capacity | 50Ah | |
Nominal energy | 640Wh | |
Life Cycles | 4000+ (80% DoD for effectively lower total of ownership cost) | |
Recommended Charge Voltage | 14.6V | |
Recommended Charge Current | 20.0A | |
End of discharge voltage | 10.0V | |
Standard method | Charge | 10.0A |
Discharge | 25.0A | |
Maximum continuous current | Charge | 50.0A |
Discharge | 50.0A | |
BMS Cut-Off Voltage | Charge | <15.6 V (3.9V/Cell) |
Discharge | >8.0 V (2s) (2.0V/Cell) | |
Temperature | Charge | (0 ~ 45℃ ) |
Discharge | -20-60°C | |
Storage Temperature | -20-45°C | |
Shipment voltage | ≥12.8V | |
Case Material | ABS+PC | |
Dimension (L x W x H) | 228 x 144 x 210 mm 9.0 x 5.7 x 8.3” |
|
Approx. Weight | 16.53 lbs (7.5 kg) |
