Solarparts@_Flexible Series Solar Pane adopts SP highest-efficiency solar cells. It delivers the most power and highest charging efficiency in their product class. SP cells are different from conventional cells. Traditional cells are prone to cracking when bent or impacted, resulting in power loss, but flexible panels made with SP cells can resist power loss due to bending and squeezing. Solarparts@_Flexible Series Solar Panels are the best choice for customers due to the combination of high power and cell ruggedness.

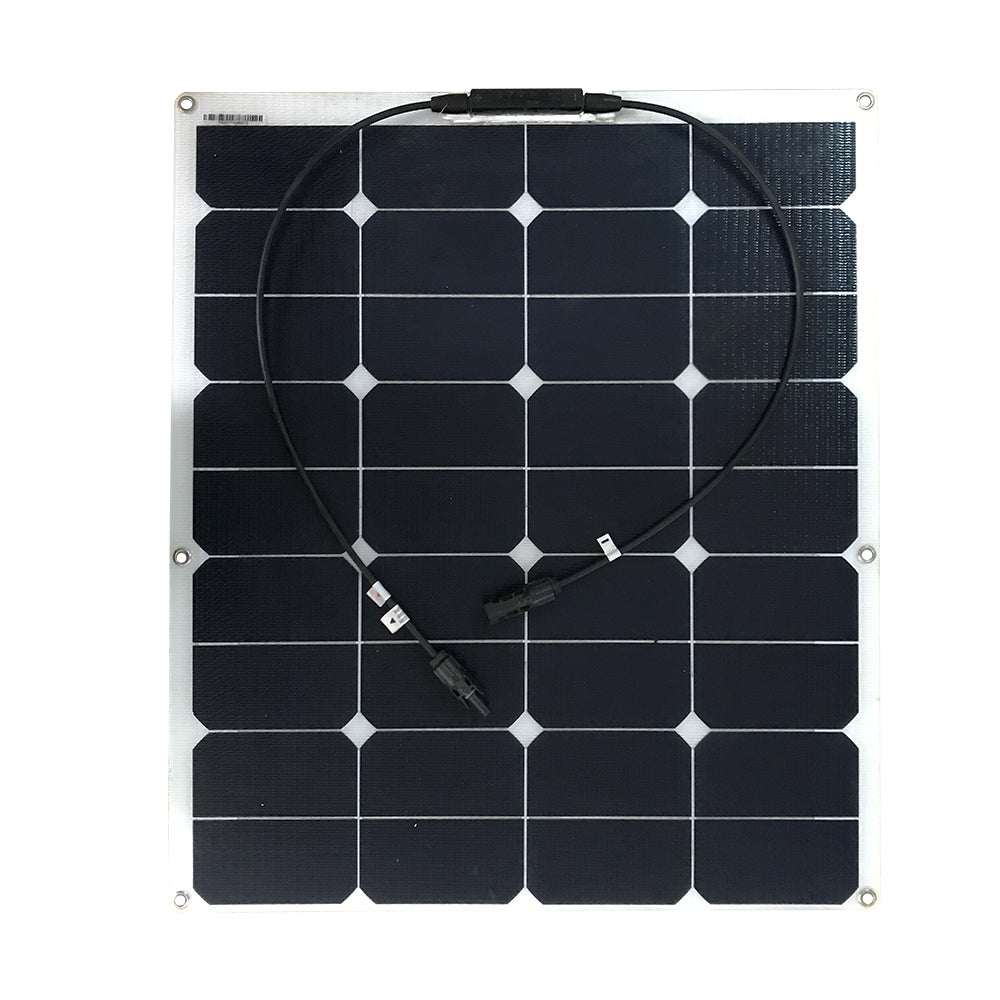

Solarparts@ Flexible Series Solar Panel
Model: PG-SP-FSP-60W
Product Description：
1. It adopt high quality mono cells, which with more flexibility and higher conversion rate.
2. The Panel is highly stain-resistant and easily gets cleaned by the rain. Highly resistant to the harsh operating conditions of a marine environment.

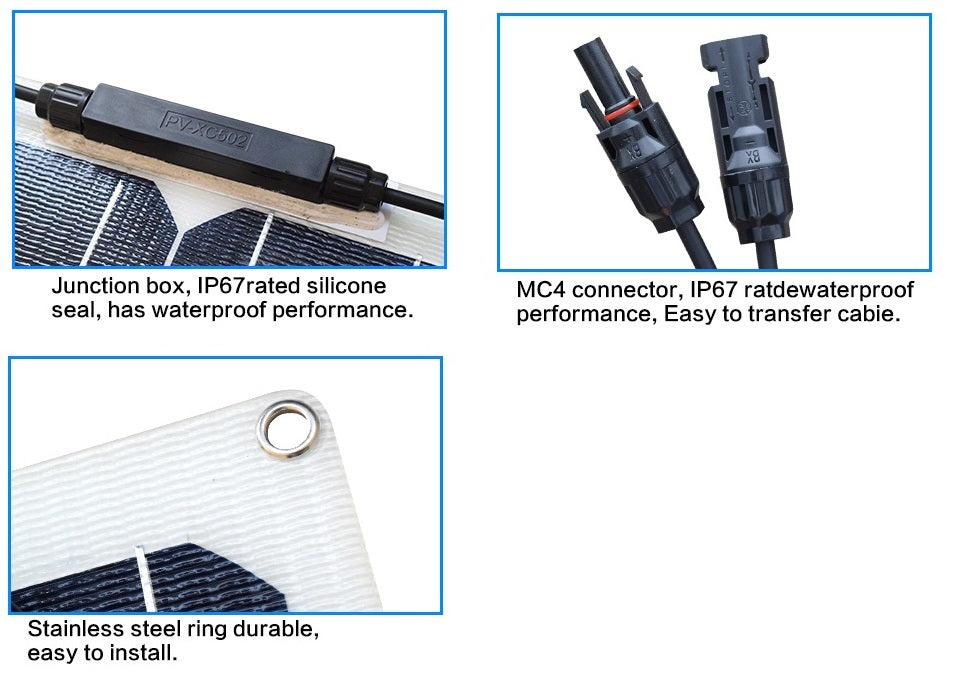

3. 6 stainless eyelets at the edges for easy installation; can be easily affixed by adhesives, silicon glues, double sticky tape, zip ties or velcro.
4. Application -- Designed for 12V batteries, ideal for trailers, boats, cabins, tents, cars, trucks, trailers, yachts, trailers, roofs, or any other irregular surface.
The standard specification
|
Maximum power (pmax) |
60W |
|
Solar cell |
SP solar cell |
|
Maximum voltage (VMP) |
19.8V |
|
Maximum Current (IMP) |
3.03A |
|
Open circuit voltage (VOC) |
23.7V |
|
Short circuit current (ISC) |
3.33A |
|
Size |
610x540x3MM |
|
Surface |
Customizable (ETFE/PET/TPT) |
|
Output Interface |
Customizable (USB /DC/MC4) |
|
Standard test condition |
lrradiance 1000 W/m^2, temperature degrees deg am = 1.5 |
