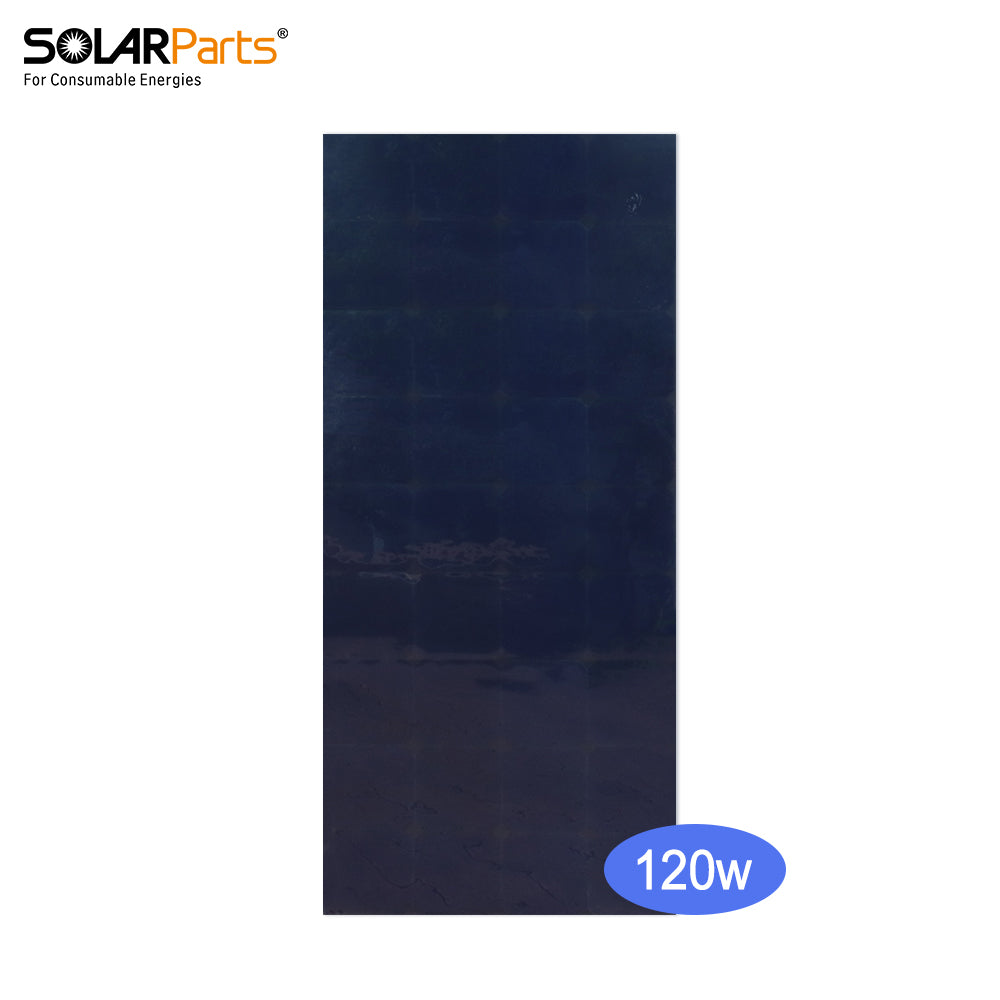

Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm
Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm

solarparts

Solarparts@ 120W 19.8V Semi-Flexible Solar Panel 1148×520×3mm

Prix de vente

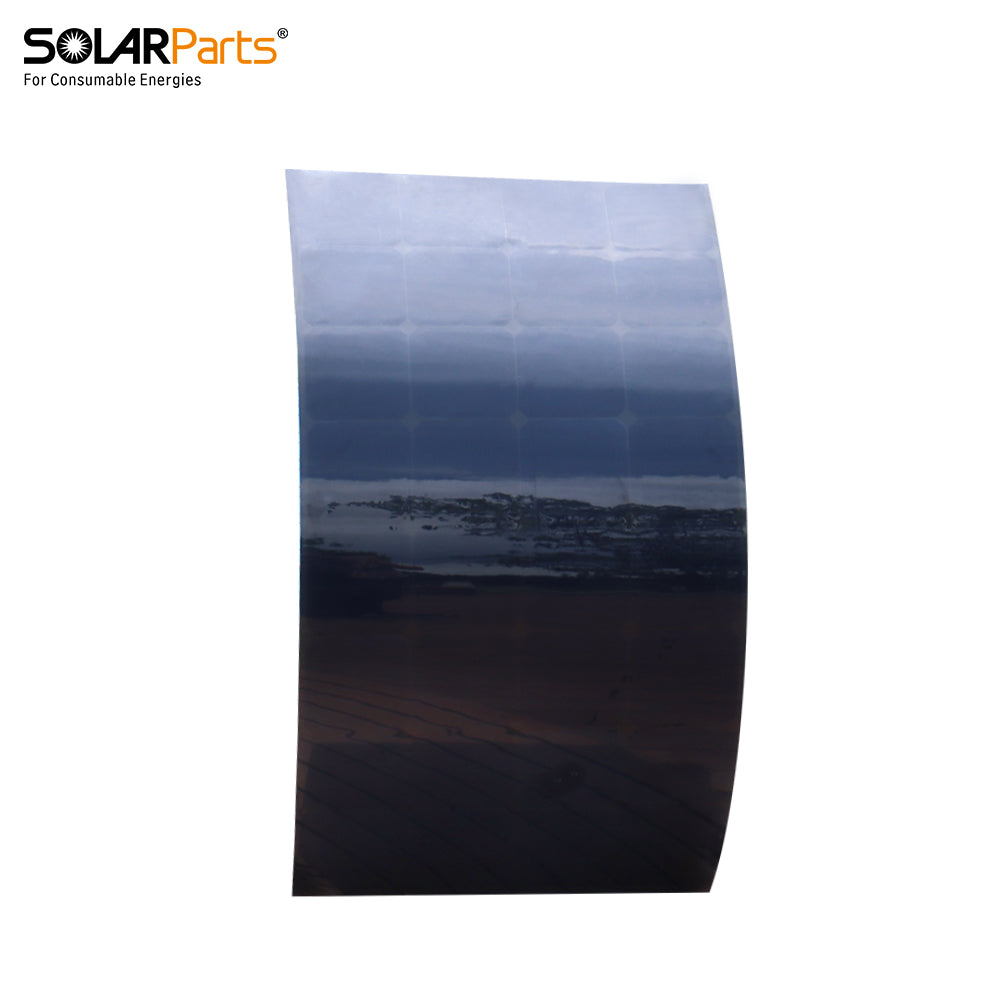

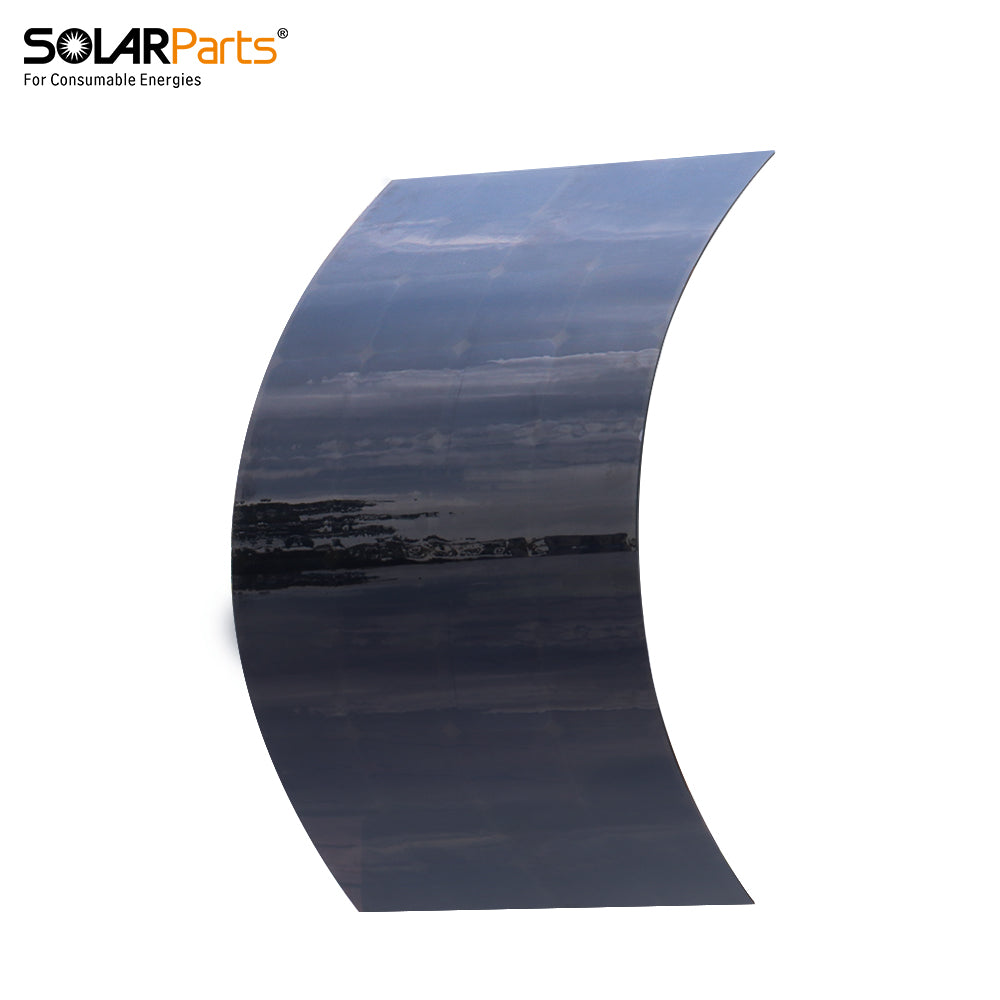

SP highest-efficiency solar cells and top-grade lightweight polymer materials are used to guarantee its high flexibility and adaptability.



Solarparts@ Flexible Series Solar Panel

Model: PG-SP-FSP-120W

Product Description:

Low degradation

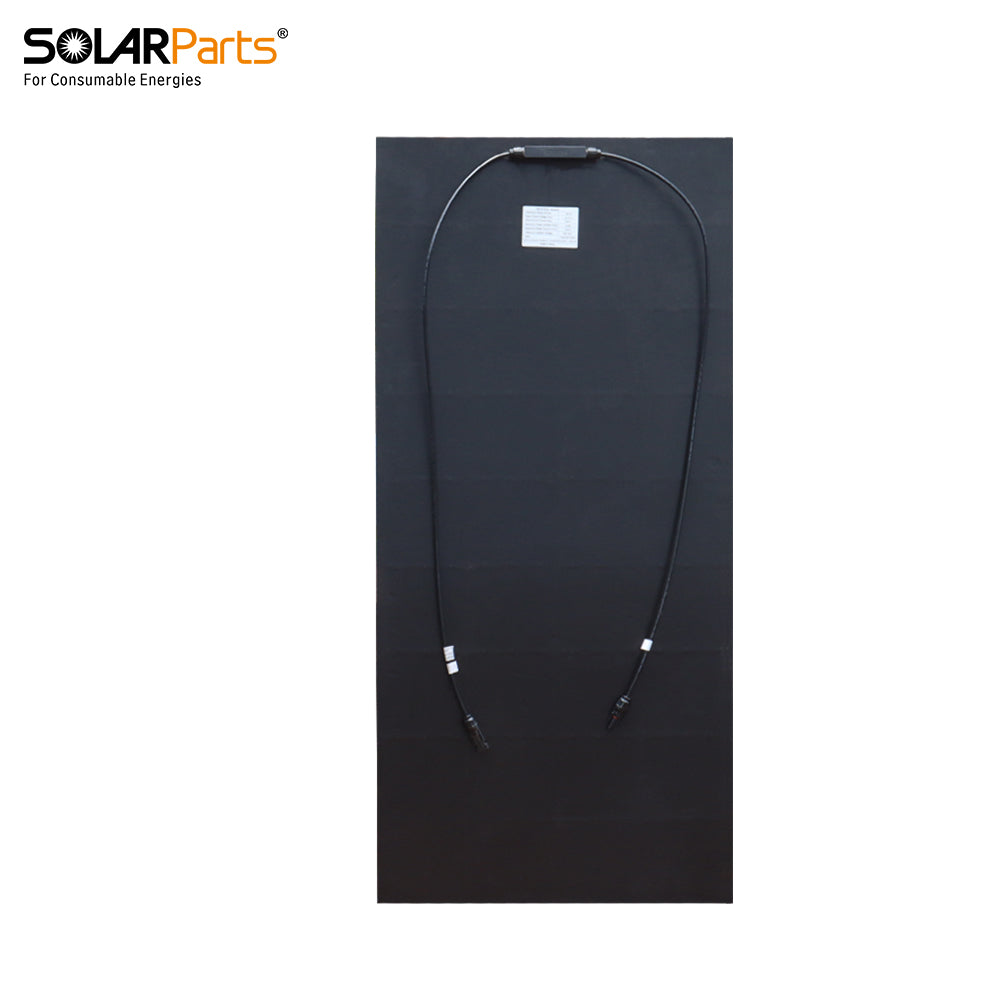

With IP65 junction box, resist power loss due to bending and squeezing.



Fully compatible

Easily connect to various devices, fully compatible with mainstream inverters and trackers, with no system matching issues.

Long durability

    With high light transmittance and excellent outdoor performance to give its longevity.

Easy Transportation

Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.

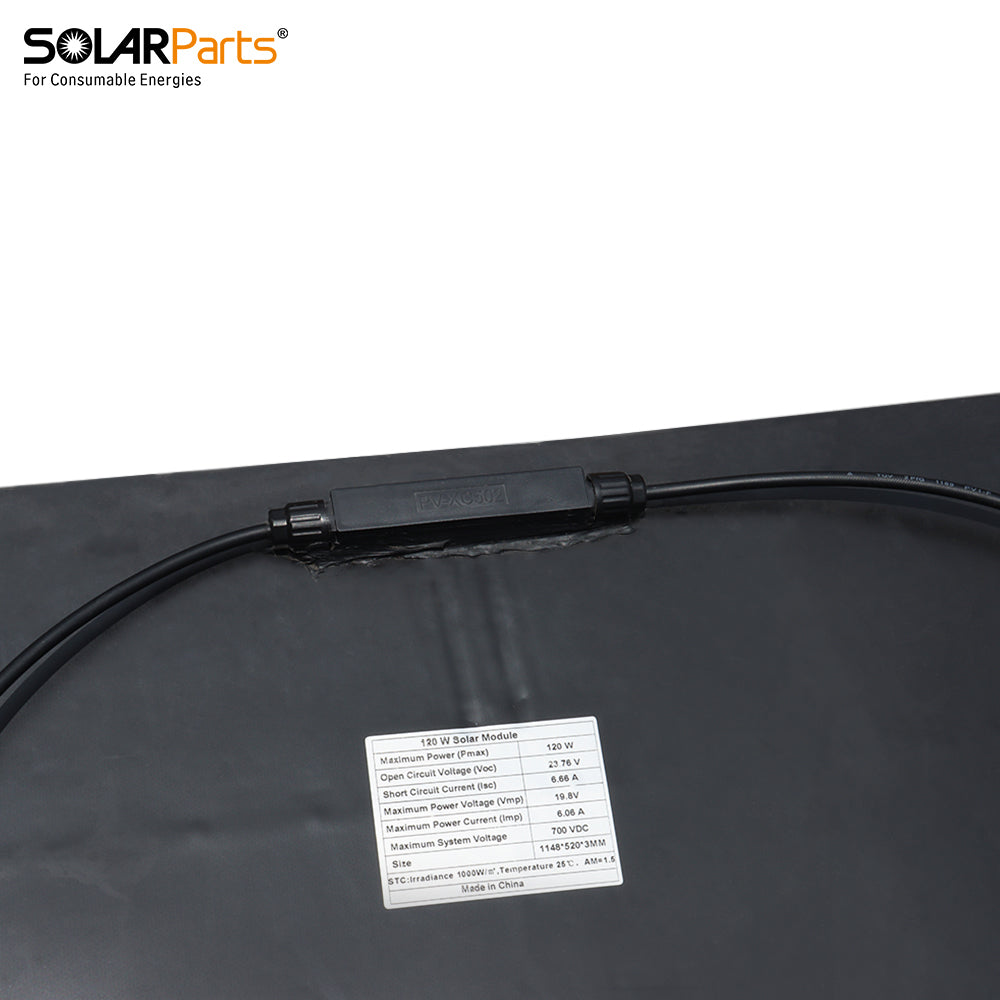

The standard specification

Maximum power (pmax)

120W

Solar cell

 SP solar cell

Maximum voltage (VMP)

19.8V

Maximum Current (IMP)

6.06A

Open circuit voltage (VOC)

23.76V

Short circuit current (ISC)

6.67A

Size

1148x520x3mm

Surface

PET

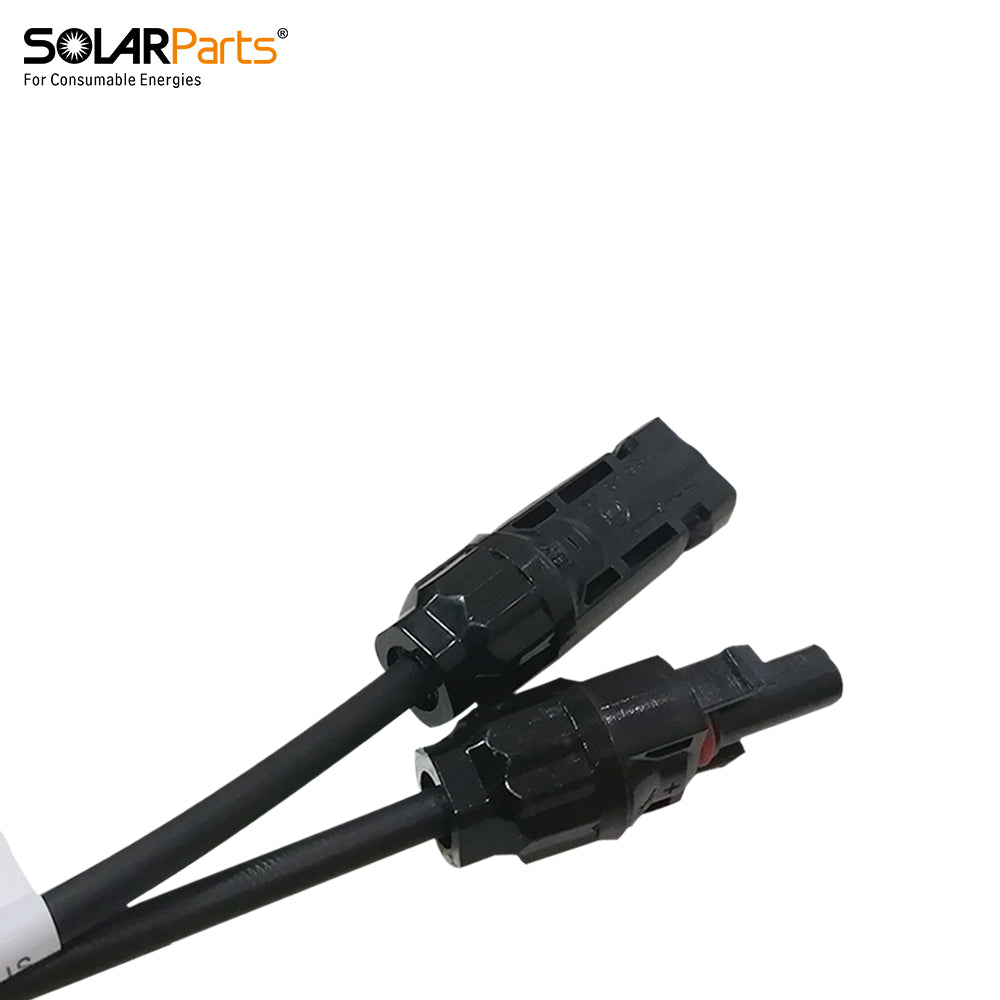

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5
