MPPT controllers

MPPT charge controller optimally charges batteries when using PV modules of grid-connected system.
It is a simple and reliable device providing maximum flexibility in module configuration. It is also possible to use thin film modules with this device. The latest technology guarantees the professional battery care combined with modern design and outstanding protection features.

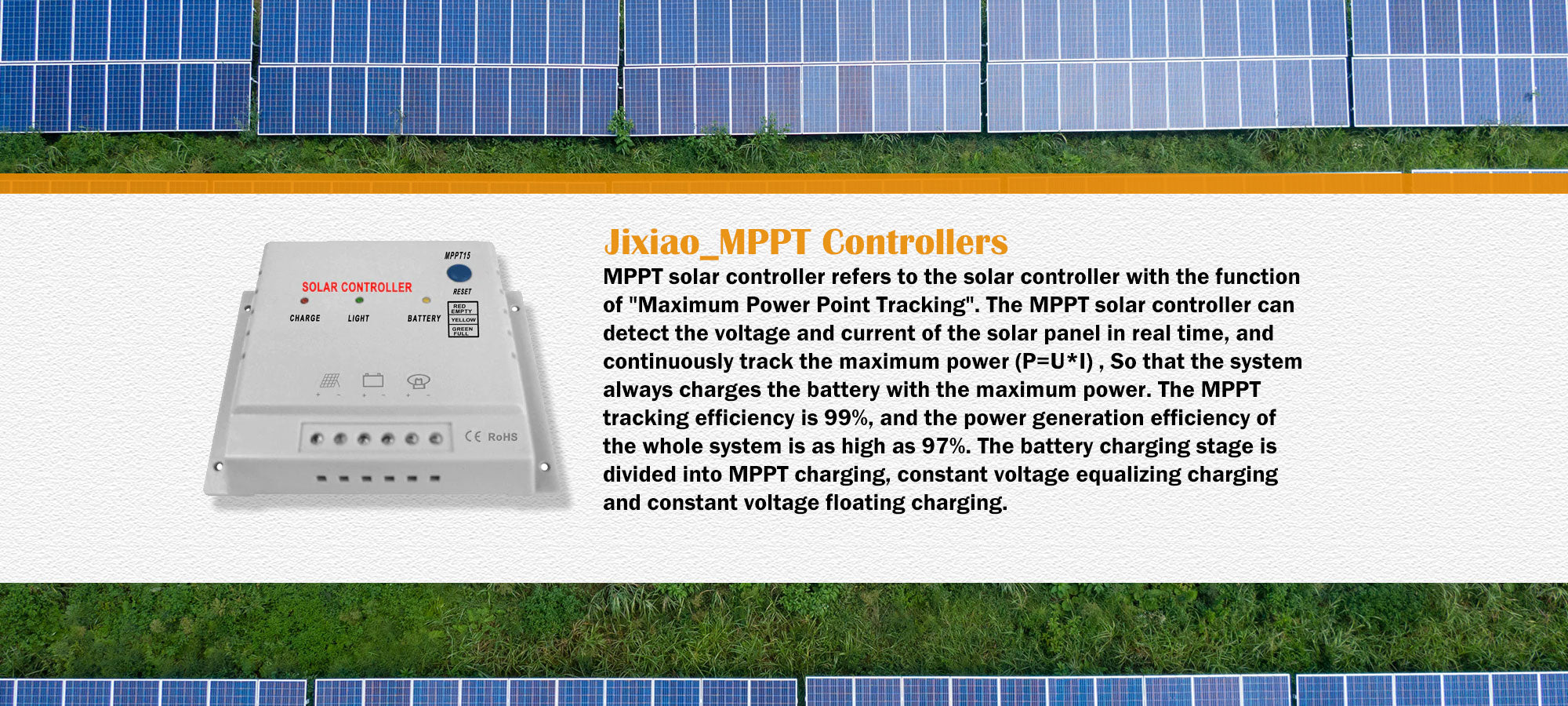

Jixiao_MPPT Controllers

Image Product name Model Voltage(V) Current(A) Size(mm) Weight(kg)
MPPT Controller 10A MPPT15 12/24 10 250*155*10 0.26
MPPT Controller 20/30A  MPPT30 48 15 315*255*10 0.75
12/24/48 20
12/24/48 30



MPPT Controller 40A


MPPT60 12/24/48 40 490*255*10 1.1



Features:
MPPT solar charge controller MPPT10-60: Compared with normal solar charge controller,
this MPPT controller could increase efficiency by 10%-30%.
This controller can charge and discharge at the same time.
This MPPT controller has perfect SOC function, control charge current, and supply power to the loads.

Connection:
As shown in the following diagram of connection, there are 6 terminals on the controller with clear sign.
