Xinpuguang@ 18V160W ETFE Flexible Solar Panel 1465*660*2.5mm
Xinpuguang@ 18V160W ETFE Flexible Solar Panel 1465*660*2.5mm
Xinpuguang@ 18V160W ETFE Flexible Solar Panel 1465*660*2.5mm

Xinpuguang@ 18V160W ETFE Flexible Solar Panel 1465*660*2.5mm

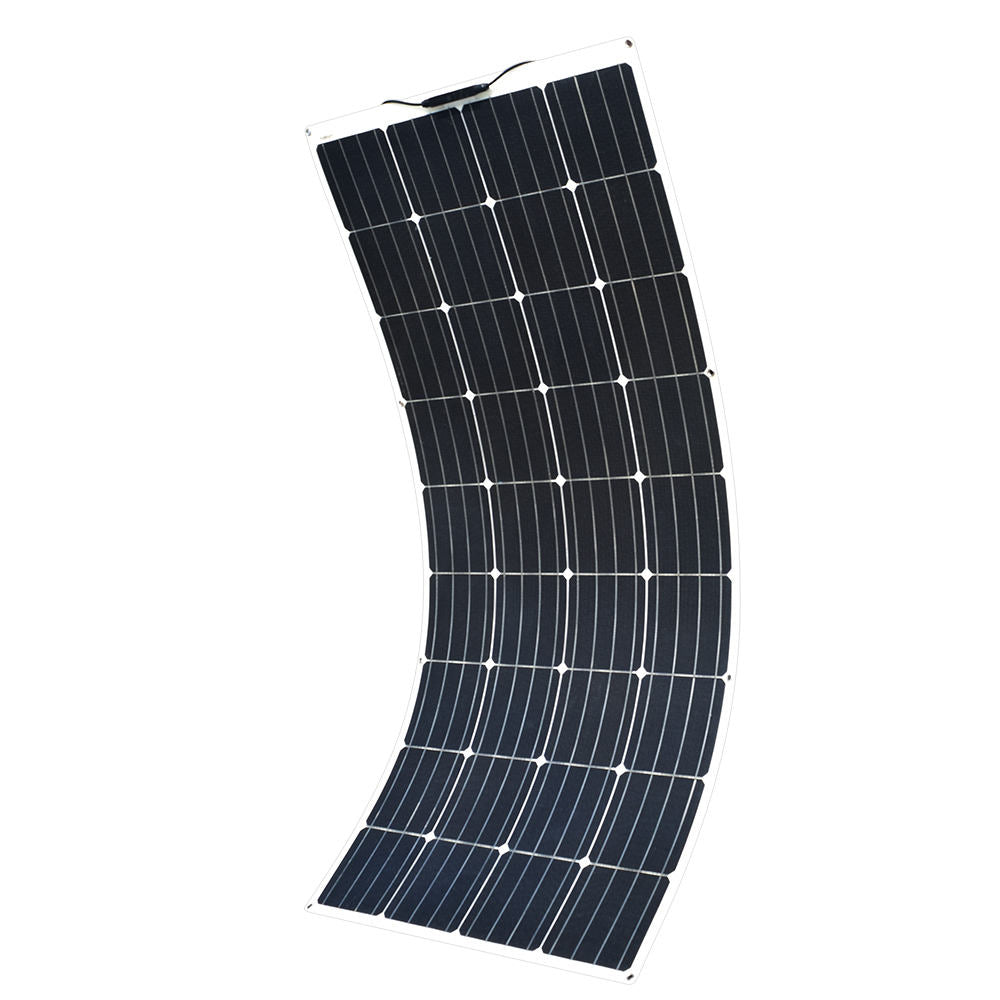

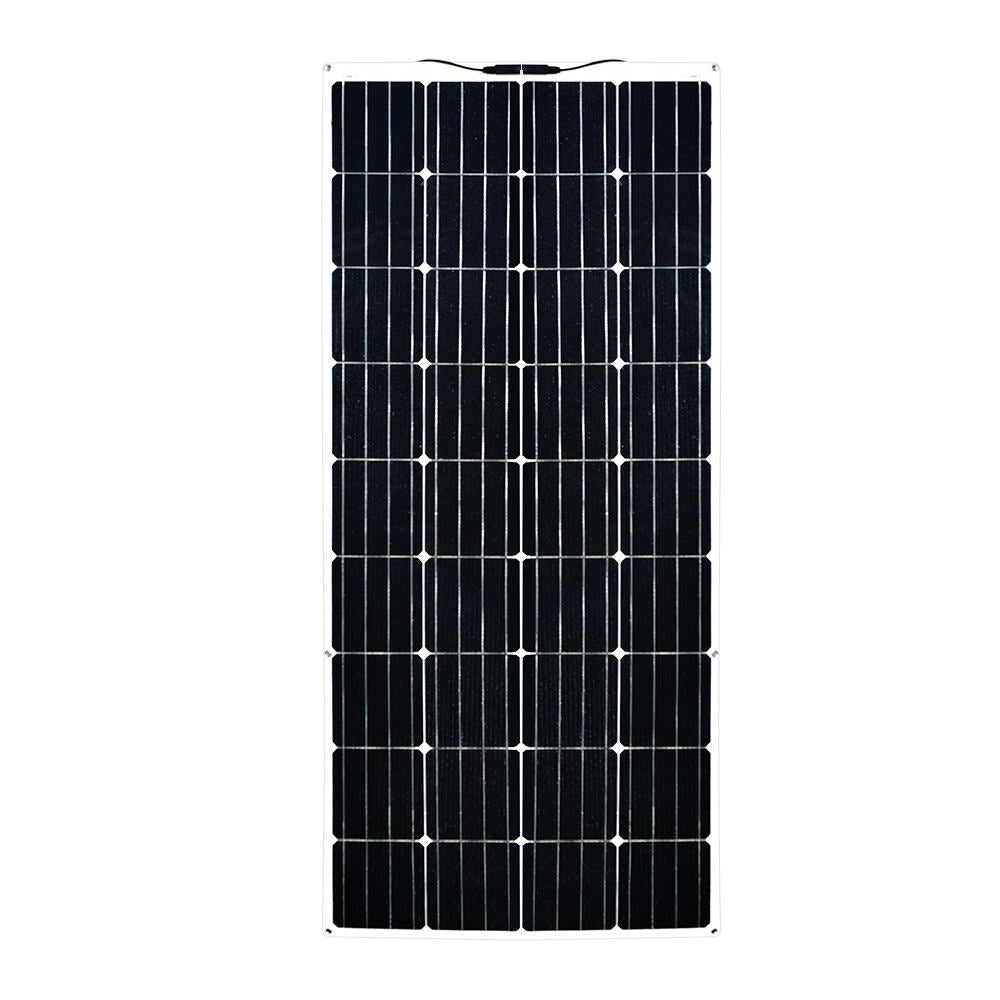

Xinpuguang@-Flexible Series Solar Panel adopt 156/166 high-quality mono cells, and laminated PET/ETFE film at surface.

Model:PG-FSP160W

Product description:

1: Lightweight: It is only 0.1 inches tall and 6.5 kg, and is easy to transport and remove.

2: Waterproof: Suitable for surface installation in RVs, yachts, boats and many water activity types of equipment.

3: Durable: The ETFE-laminated case is durable enough to extend the lifespan of the solar panel.

The standard specification

Maximum power (pmax)

160W

Solar cell

 Mono

Performance Tolerance

± 5%

Maximum voltage

700V DC

Open circuit voltage (VOC)

21.6V

Short circuit current (ISC)

9.8A

Maximum voltage (VMP)

18V

Maximum Current (IMP)

8.9A

Operating Temperature (NOCT) degrees

± 2 degrees

Temperature range

-40C~+60C

Size

1465*660*2.5mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5


Catalogue Download
