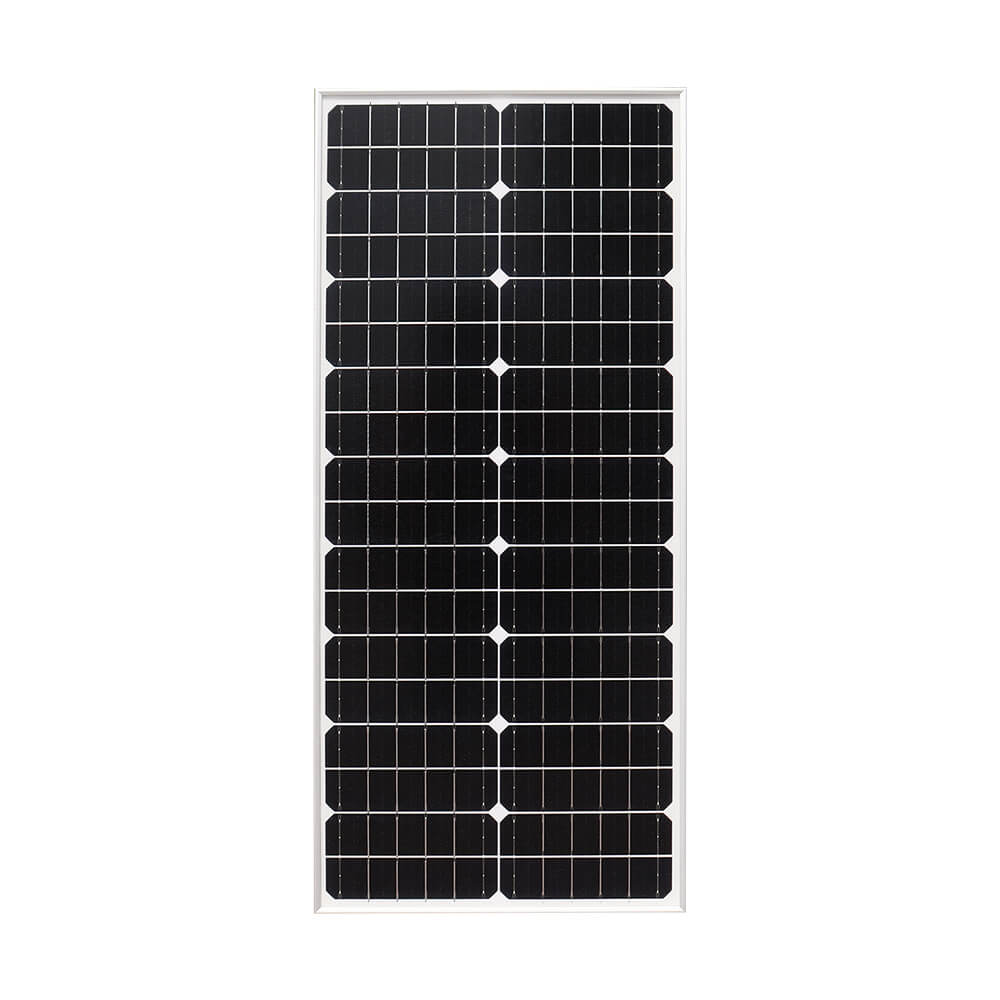

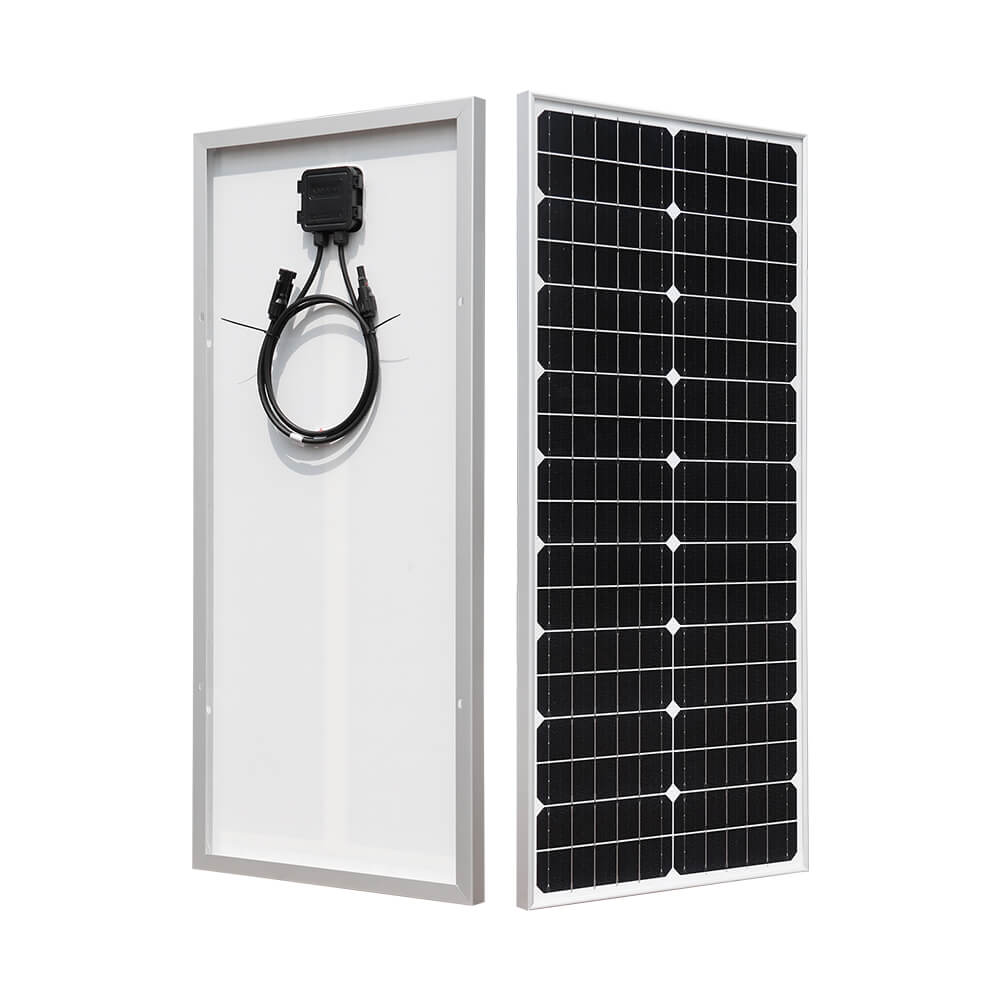

Solarparts Mono glass solar panel 19.8V/50W 810*360*25mm with junction box and MC4 0.9M cable

Feature:

1.Long service life and virtually maintenance-free. Up to more than 25 years.

2.Good performance in low light environment.

3.Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa).

4.Corrosion-resistant aluminum material can withstand the changing outdoor environment.

5.Bypass diodes reduce power drop caused by shadows and ensure excellent performance in low-light environments.

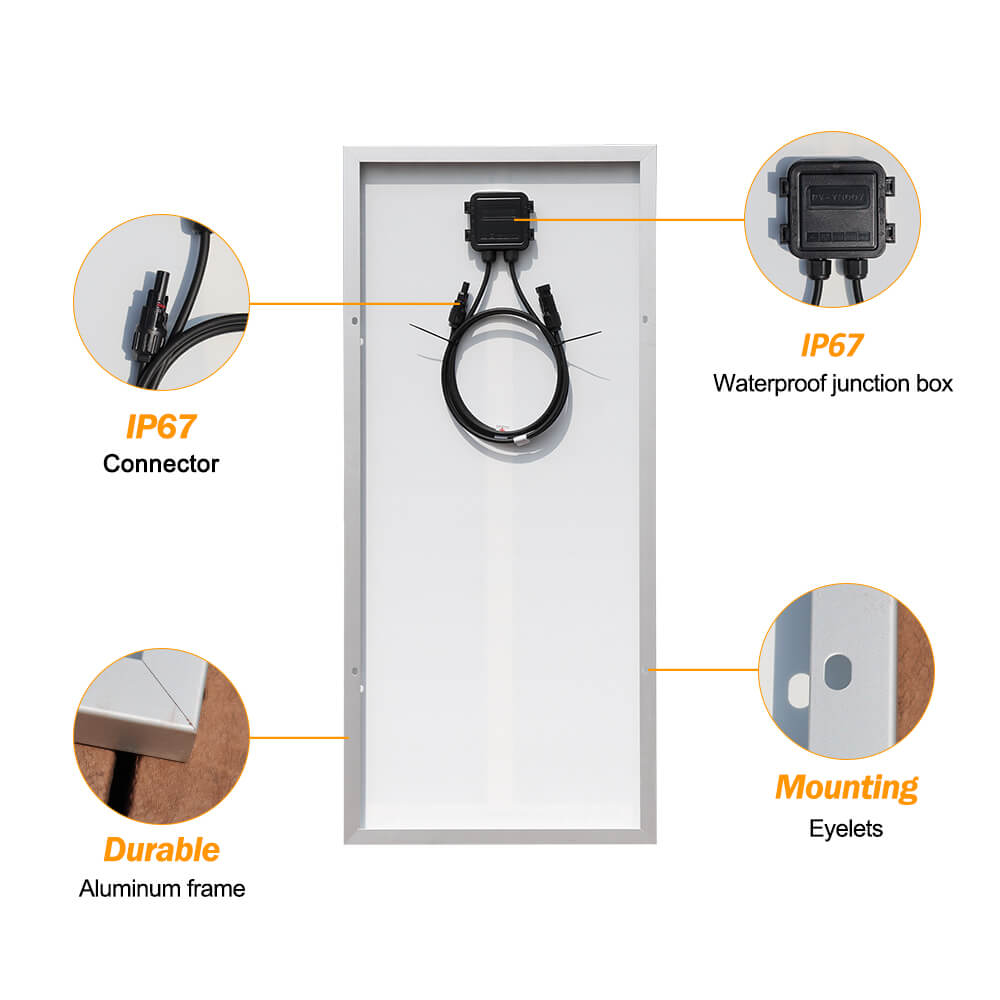

6.Easy to install with pre-drilled holes on the back of panel for fast mounting and securing. Can be matched with various solar panel brackets.

Specification:

Model:202010169

Solar cell:Mono silicon

Max Power：50w

Max Power Voltage : 19.8V

Max Power Current: 2.52A

Open-circuit voltage: 23.76V

Short-circuit current:2.77A

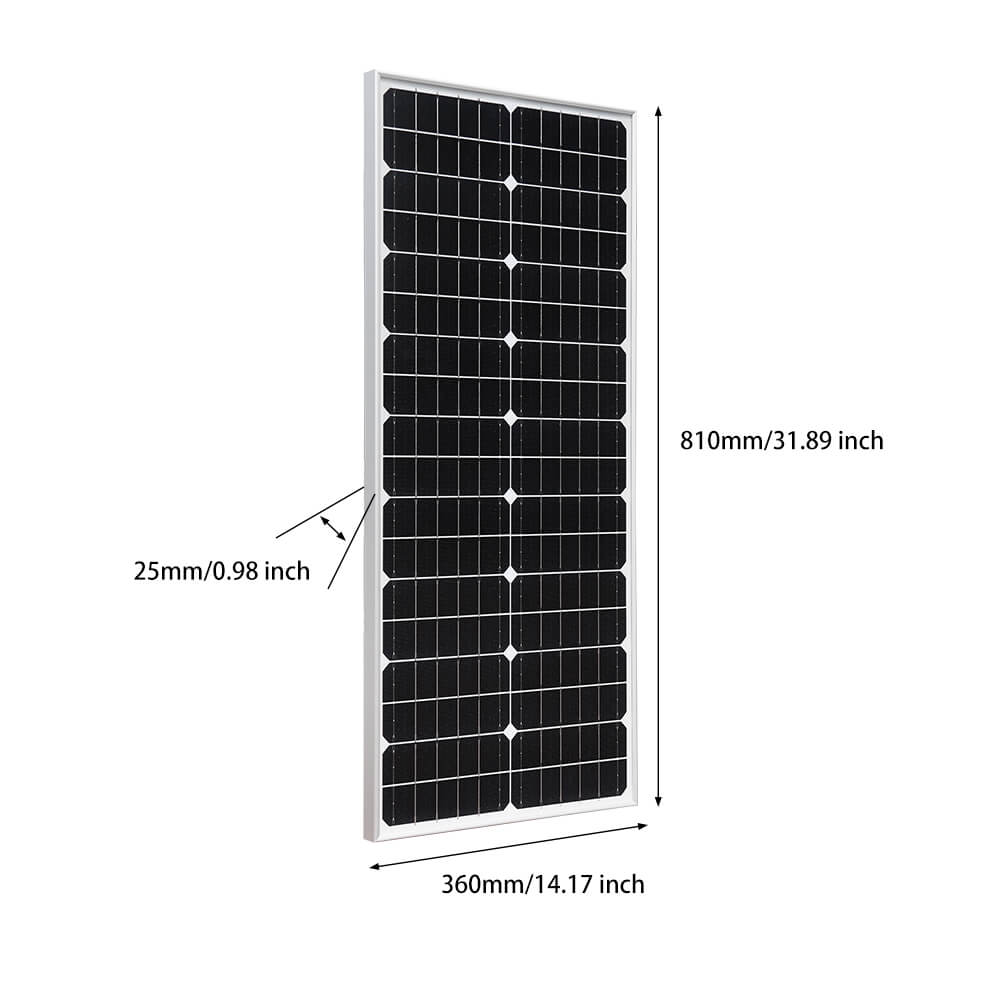

Size:810*360*25mm

Product weight:3.5kg

Efficiency:≥21%

Operating temperature:-20 - 85℃

Package size:850*410*270mm，5pcs packed in one carton

Package Weight:19.8kg
