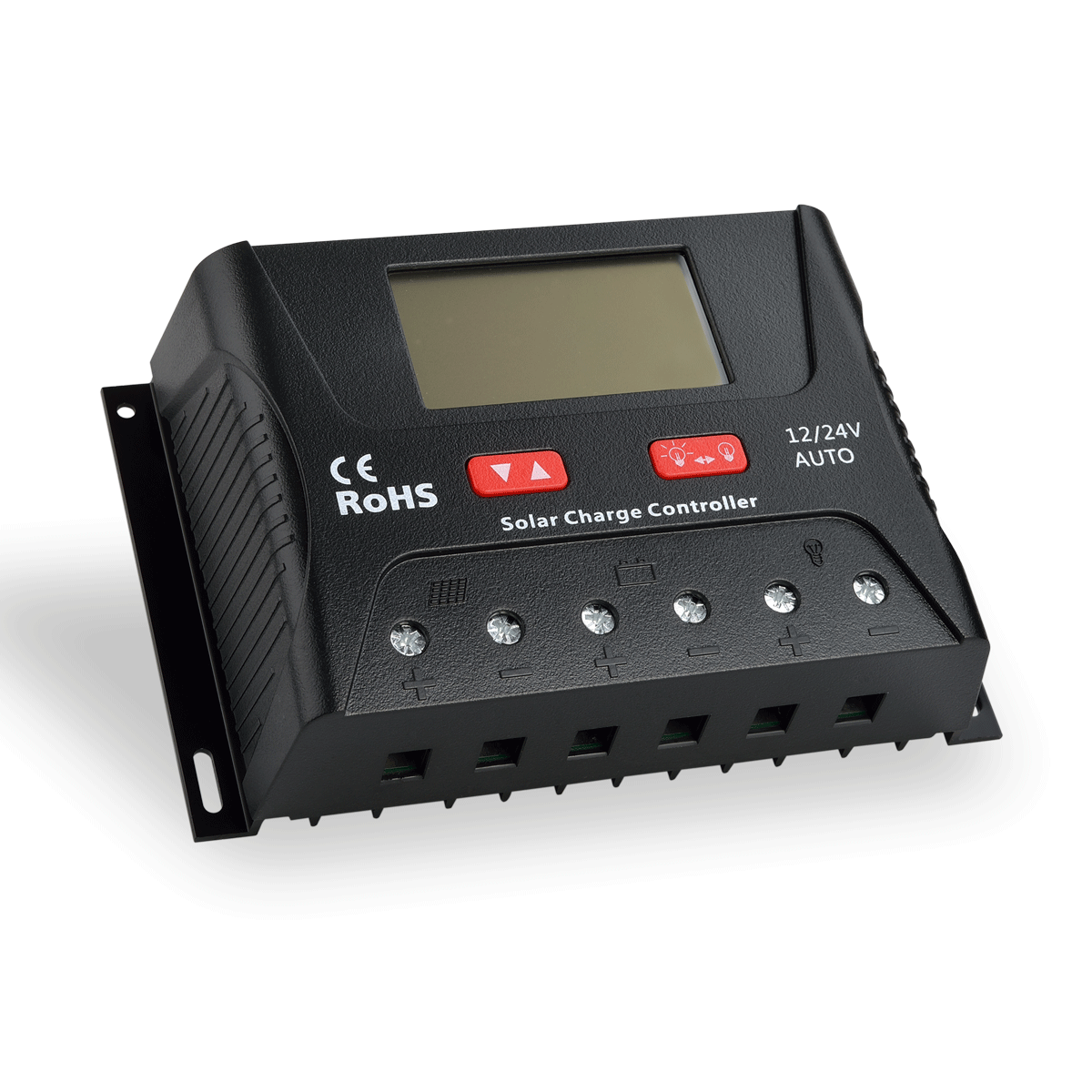

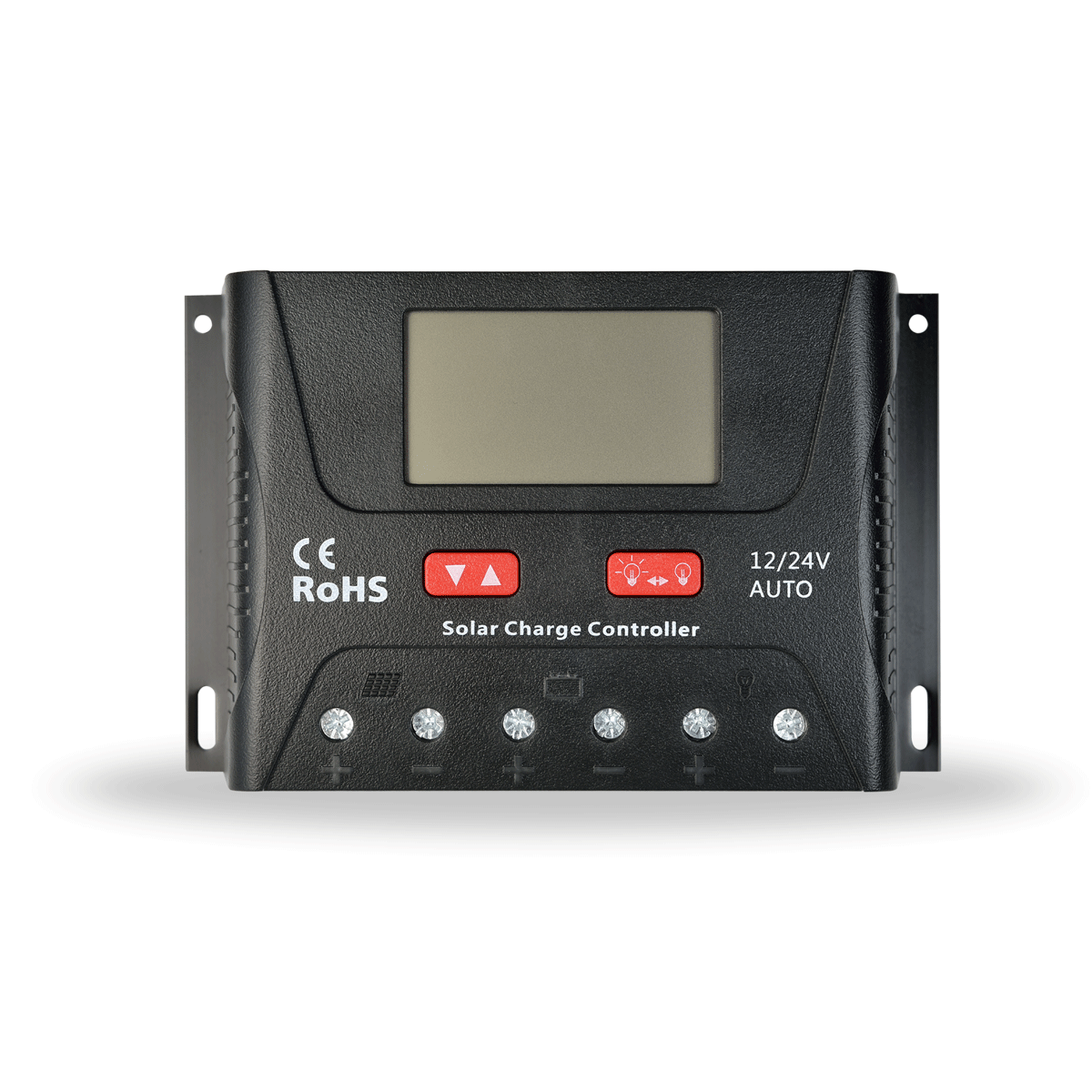

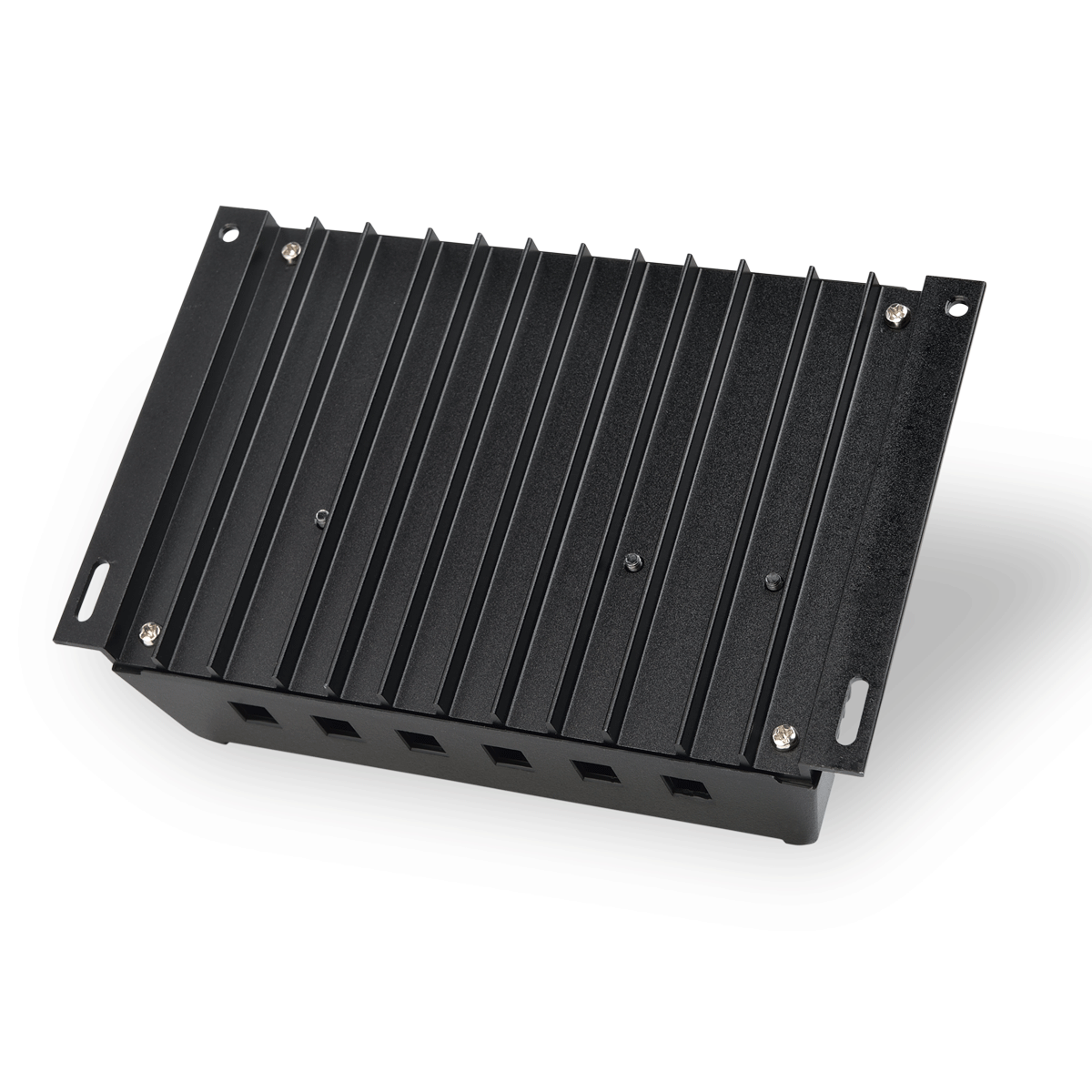

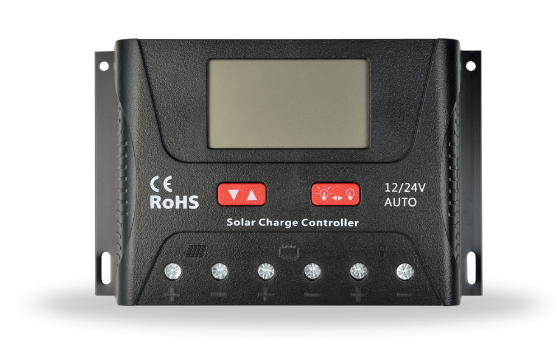

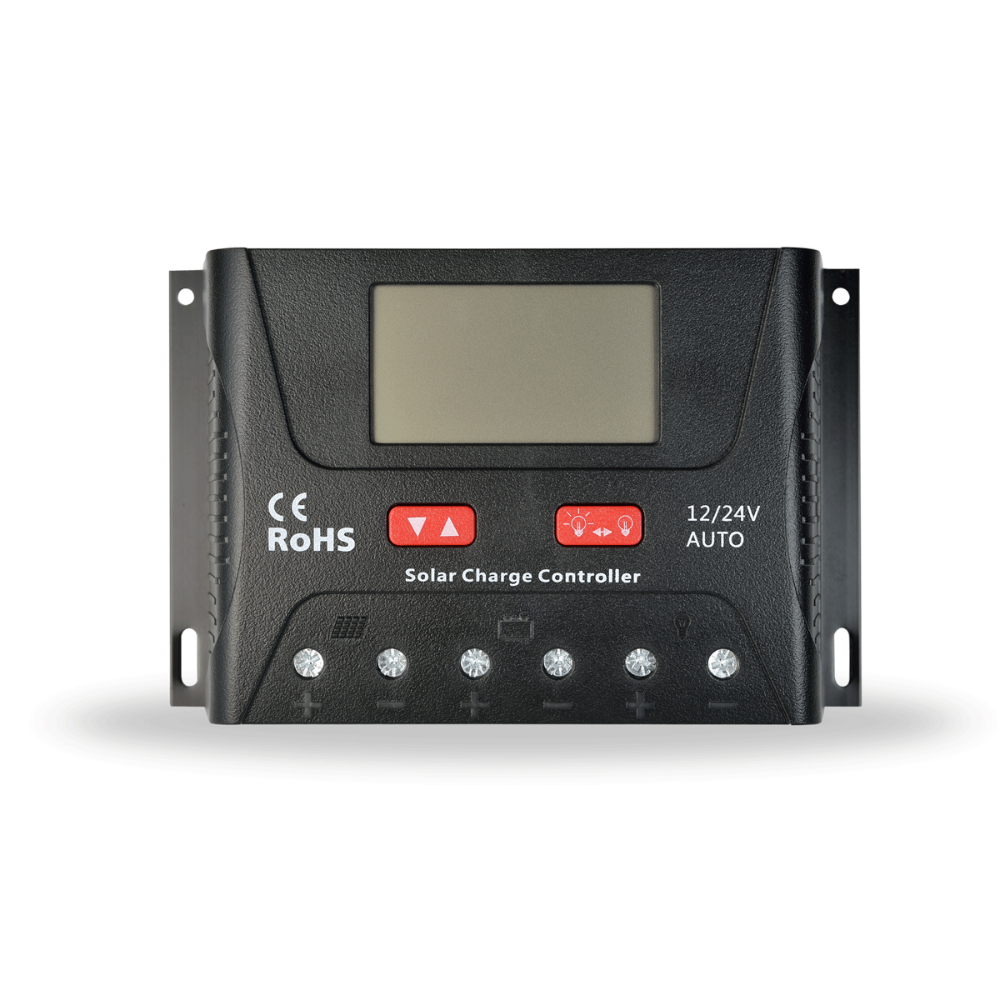

Jixiao_PWM controllers JXP series

1. Automatic identification of system voltage.



2. Support charging gel batteries, sealed batteries, lead-acid batteries and lithium batteries, etc.



3. An upgraded 3-stage PWM charging algorithm is adopted. Overdischarge or application of an equalizing charging to the battery regularly can effectively prevent the battery from non-equalization and sulfuration and extend the lifespan of battery.



4. Featuring a temperature compensation function, the controller can automatically adjust charging parameters.



5. A variety of load working modes which facilitate the product's application to different types of loads.



6. The product provides overcharge, overdischarge, overload, short-circuit and reverse connection protection.



7. Advanced startup method of load: Large capacitance loads can be started smoothly.



8. The product adopts a dot-matrix graphic LCD screen and a human-machine interface with two switches.



Model	JXP01/JXP02		JXP03/JXP04
Rated current	30A/40A		50A/60A
System voltage	12V/24V
No-load loss	<13mA/12V；<15mA/24V
Max.Solar energyinput voltage	<55V
Max.voltage at the battery end	c34V
Battery type	Flooded FLD	Sealed SLD
Over voltage protection	16.0V
Floating chargingvoltage	13.8V	13.8V
Boost charging time	2H
USB function	Yes		optional
Bluetooth faction	optional
Operating temperature	-25C to+55℃；
IP protection degree	IP30
Net weight	390g		650g
Dimensions	164.0x103.5x47.0(mm)		189.27*127.2x54.0(mm)
