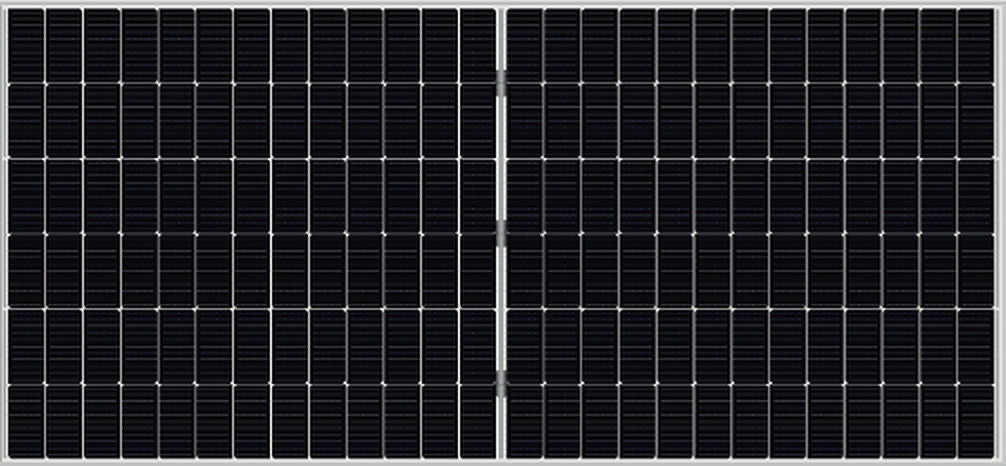

Xinpuguang@ Rigid Series - Monocrystalline modules

Xinpuguang@ Rigid Series - Monocrystalline modules

More than 23% conversion efficiency under sunny days, high-performance monocrystalline solar cells are used to make it be the perfect addition for off-grid application.

Specification

Pmax Dimension (Unit:mm) Size of cell Voc(V) Isc(A) Vmp(V) Imp(A) C-Eff
20W 505*295*18 156*19.5 21.60  1.22  18.00  1.11  18.26%
20W 630*285*25 125*31.25 21.60  1.22  18.00  1.11  14.22%
20W 415*350*18 156*19.5  21.60  1.22  18.00  1.11  18.26%
25W 425*340*18 156*31.2 14.40  2.29  12.00  2.08  21.40%
26W 540*350*18 78*26 43.20  0.79  36.00  0.72  17.81%
26W 740*280*18 125*17.85 43.20  0.79  36.00  0.72  16.18%
30W 630*345*18 156*31.2 21.60  1.83  18.00  1.67  17.12%
32W 630*350*18 78*31.2 43.20  0.98  36.00  0.89  18.26%
35W 465*500*18 156*52 14.40  3.21  12.00  2.92  17.98%
35W 440*500*18 156*39 18.00  2.57  15.00  2.33  19.18%
40W 665*520*25 156*52 20.88  2.53  17.40  2.30  13.70%
45W 980*280*25 156*39 21.60  2.75  18.00  2.50  20.55%
50W 680*510*25 156*52 21.60  3.06  18.00  2.78  17.12%
50W 545*535*25 125*62.5 19.20  3.44  16.00  3.13  20.00%
50W 665*520*5 156*52 21.60  3.06  18.00  2.78  17.12%
80W 950*530*25 161*80.5 19.80  5.33  16.50  4.85  18.70%
85W 1160*540*30 125*125 21.12  5.31  17.60  4.83  15.10%
90W 1480*345*30 156*78 21.60  5.50  18.00  5.00  20.55%
95W 1050*540*30 125*125 19.20  6.53  16.00  5.94  19.00%
100W 1160*530*25 125*125 21.60  6.11  18.00  5.56  17.78%
100W 1175*530*25 125*125 21.00  6.29  17.50  5.71  17.78%
100W 1160*540*30 125*125 21.60  6.11  18.00  5.56  17.78%
100W 1020*515*20 161*80.5 21.60  6.11  18.00  5.56  21.43%
100W 770*675*25 161*80.5 21.60  6.11  18.00  5.56  21.43%
100W 955*530*25 166*81.5 21.60  6.11  18.00  5.56  21.99%
100W 915*660*25 125*125 21.00  6.29  17.50  5.71  18.29%
100W 960*530*25 166*83 21.60  6.10  18.00  5.56  22.00%
115W 1000*670*30 156*52 43.20  3.51  36.00  3.19  19.69%
120W 1130*530*25 166*83 25.80  6.10  21.50  5.58  22.30%
135W 1450*670*35 156*156 21.60  8.25  18.00  7.50  15.41%
150W 1040*795*30 166*166 36.00  5.50  30.00  5.00  20.30%
150W 1295*670*30 156*156 19.20  10.31  16.00  9.38  19.26%
180W 1370*700*30 166*166 21.10  11.20  17.60  10.30  20.60%
190W 1580*808*35 125*125 43.20  5.81  36.00  5.28  16.89%
200W 1580*808*35 125*125 43.20  6.11  36.00  5.56  17.78%
200W 1670*690*35 161*161 24.00  11.00  20.00  10.00  19.29%
200W 1460*670*35 156*156 21.60  12.22  18.00  11.11  22.83%
200W 1545*700*35 166*166 23.70  10.80  19.80  10.10  20.30%

 STC: Irradiance 1000W/m2, Temperature 25℃, AM=1.5

 Features:

Waterproof

The junction box with IP65 waterproof rating resist long-term erosion in harsh rainy and humid weather.

High conversion rate

High-efficiency monocrystalline cells with the conversion rate is as high as 23% .

Solid structure

Heavy-duty anodized frame provides strong protection for panel structure.

Rugged design

Featured with rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa).

Easy Installation

With pre-drilled holes on the back of panel for fast mounting and securing.
