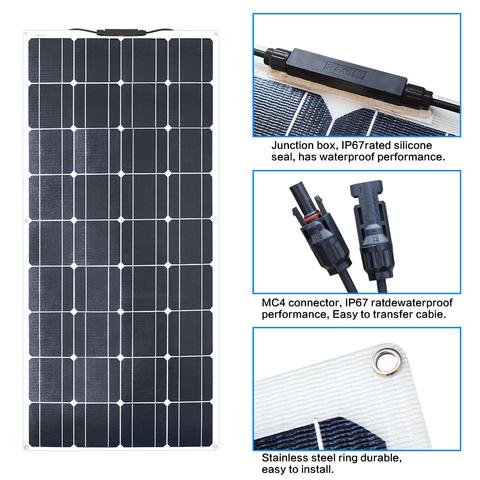

100W ETFE monocrystalline solar panel

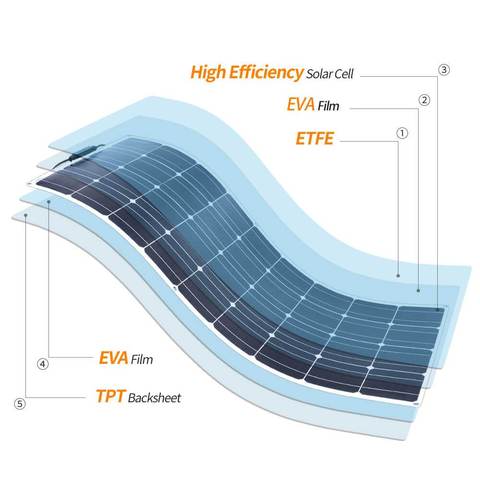

structural diagram of solar panel

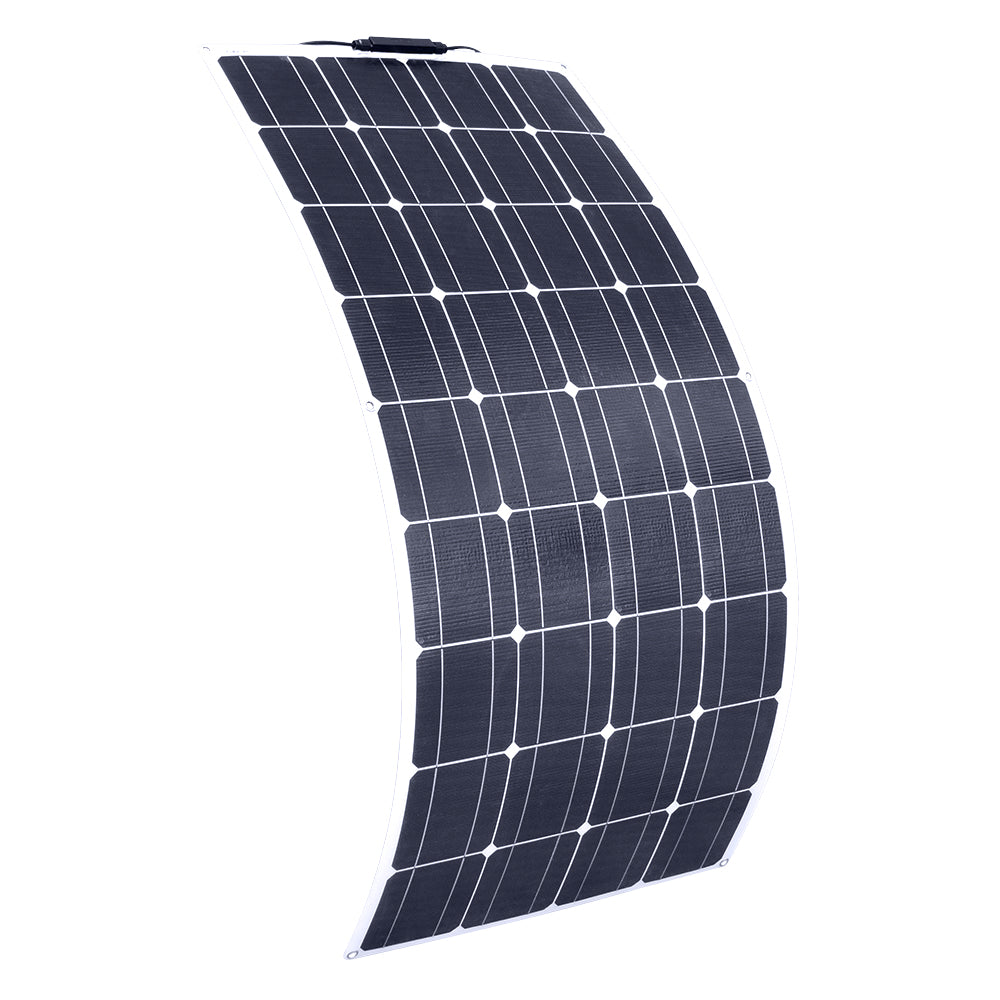

100W ETFE monocrystalline solar panel

isolarparts

Xingpuguang 18V100W ETFE Monocrystalline solar panel 1175mm*540mm*3mm

Prezzo di vendita

Adopt high efficiency monocrystalline cell with a conversion efficiency of more than 19.8%, conversion rate can reach up to 21%.

Product description:

Ultra-light

80% lighter than glass solar panels and only 3mm thick.

Self-cleaning

Nonstick surface makes rainfall easily wash away dust and other foreign objects.

Well waterproof

Made of advanced waterproof materials, suitable for surface installation in many water activity types of equipment.

Easy installation

Equipped with spaced metal grommet mounting holes are available to attach fasteners.

High flexibility

Can be bent 30 degrees, and be installed on most curved surface.

Broad compatible

Perfect for Golf cars, Yachts, Boats, RVs,Caravans, Electric vehicles, Travel tourism cars, etc.

The standard specification

Maximum power (pmax)

100W

Solar cell

 Mono

Performance Tolerance

± 5%

Maximum voltage

700V DC

Open circuit voltage (VOC)

21.6V

Short circuit current (ISC)

6.1A

Maximum voltage (VMP)

18V

Maximum Current (IMP)

5.6A

Operating Temperature (NOCT) degrees

± 2 degrees

Temperature range

-40C~+60C

Size

1175*540*2.5mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5
