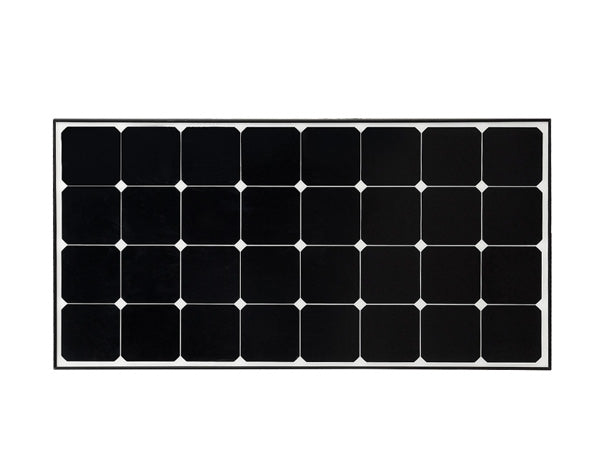

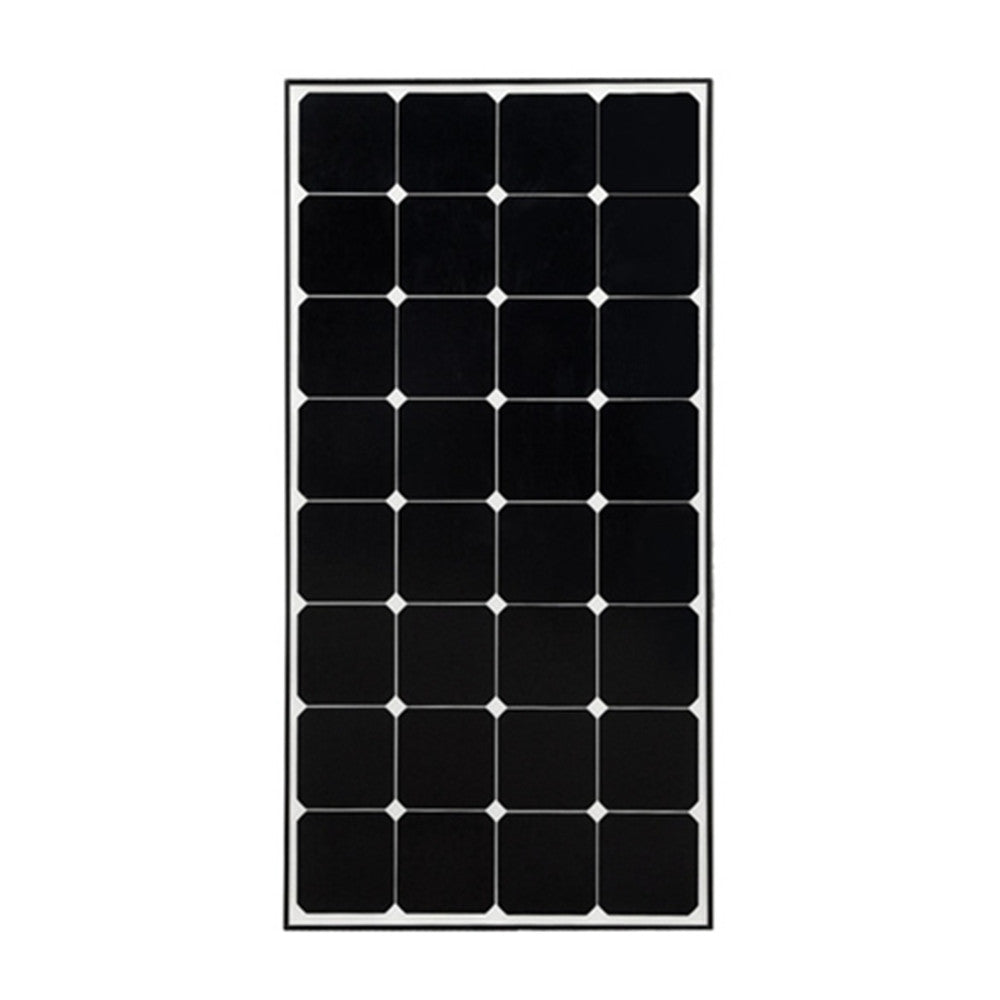

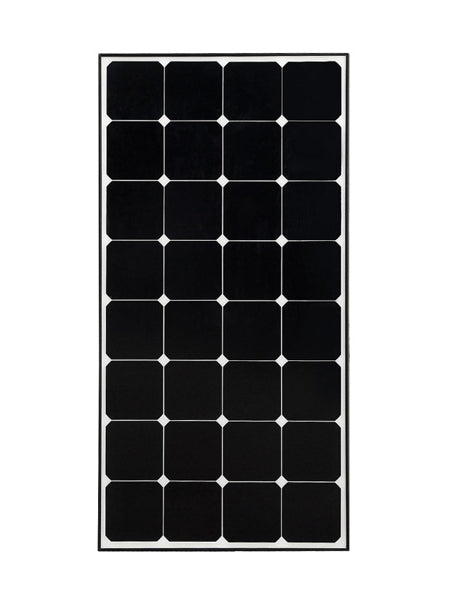

Solarparts@ Rigid Panel adpot unique back connected 125mmx125mm cells. Which with high quality , efficiency and reliablity.  It's ideal for Off-grid applications



Pmax Dimension (Unit:mm) Voc(V) Isc(A) Vmp(V) Imp(A) C-Eff
25W 540*300*18 21.12 1.56  17.6  1.42  20.00%
50W 545*535*25 21.12  3.13  17.60  2.84  20.00%
96W 1305*415*30 19.80  6.40  16.50  5.82  20.50%
105W 1050*540*30 21.12  6.56  17.60  5.97  21.00%
220W 1440*808*35 22.20  13.08  18.50  11.89  21.33%


Material used

Cell technology Mono crystalline sunpower cells
Front Tempered glass
Frame Aluminum frame
Junction box IP65 with MC4 compatible connector


1. Corrosion-resistant:adopt corrosion-resistant aluminum material that can withstand the changing outdoor environment;

2. Great Adaptability: Compatible with different mounting systems such as Z-brackets, Pole Mounts, and Tilt Mounts.

3. Durable:It provides long-lasting durability and has an excellent performance in the low light environment. The Sturdy panel can withstand high wind (2400 Pa) and snow loads (5400 Pa) .
