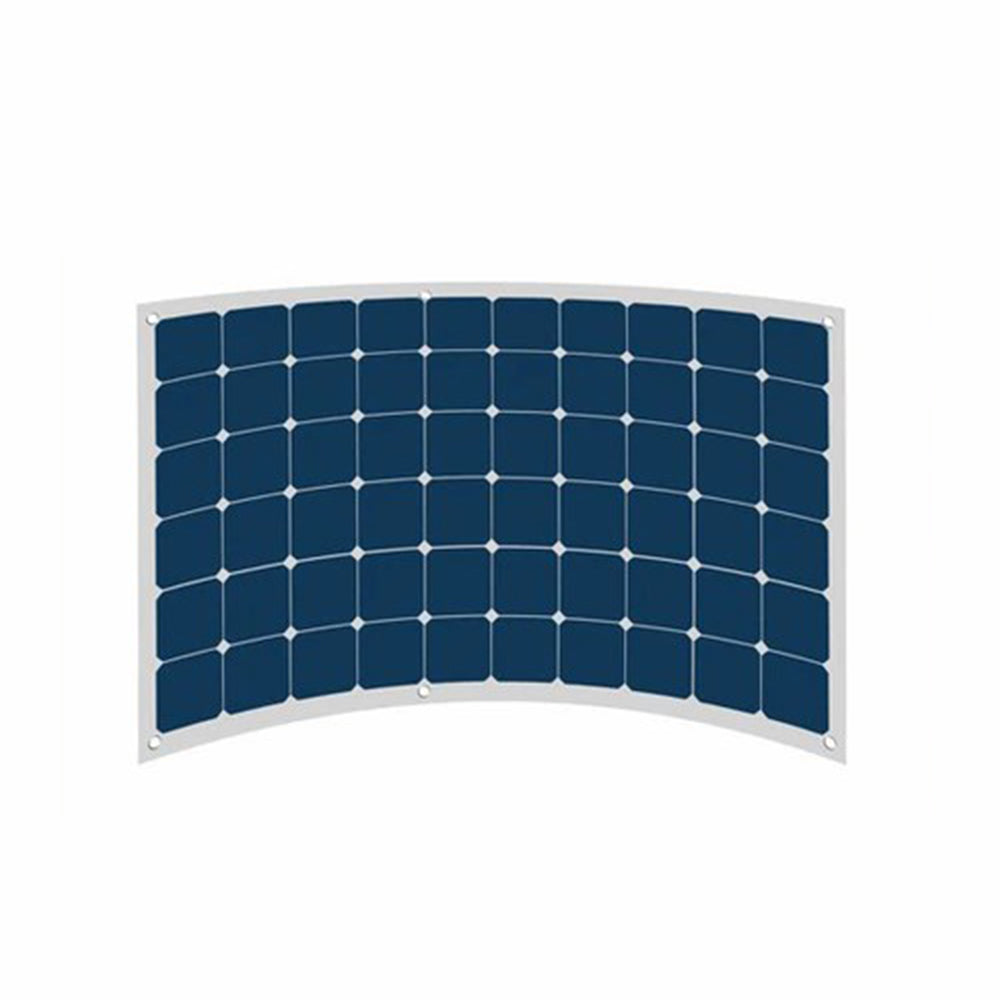

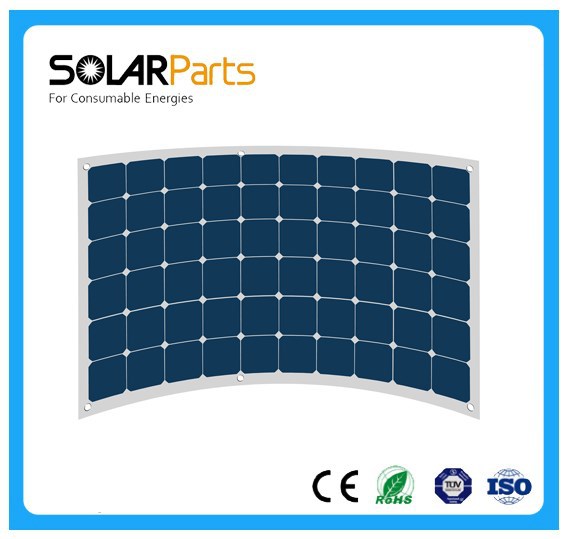

Solarparts@ 36V 200W Flexible Solar Panel-1440X790X3MM

Solarparts@ 36V 200W Flexible Solar Panel-1440X790X3MM

Solarparts@_Flexible Series Solar Pane adopts SP highest-efficiency solar cells. It delivers the most power and highest charging efficiency in their product class. SP cells are different from conventional cells. Traditional cells are prone to cracking when bent or impacted, resulting in power loss, but flexible panels made with SP cells can resist power loss due to bending and squeezing. Solarparts@_Flexible Series Solar Panels are the best choice for customers due to the combination of high power and cell ruggedness.



Solarparts@ Flexible Series Solar Panel

Model: PG-SP-FSP-200W

Product Description:



Output about 36.6V 5.51A to provide energy for the corresponding parameter product equipment;

Features:

  1. Safe and reliable, no battery, no fear of exposure to high temperature, no combustion or explosion risk;
  2. The circuit has the design of input over-current protection and reverse connection protection,  to improve and improve the safety guarantee for daily use;
  3. Adopt the crystal silicon solar panels of first-class manufacturers, the photoelectric conversion efficiency is more than 20%, which is at the level of the industry. Laminate technology is adopted, which is not easy to scratch, integration presses more sturdy and durable, service life is longer.
  4. Small size, lightweight, comfortable feel, portable and practical;
  5. It is possible to flexibly set up charging equipment parameters in accordance with electronic circuit rules;
  6. Few faults, as long as there is sun, the high conversion rate of continuous power supply can be achieved;

The standard specification

Maximum power (pmax)

200W

Solar cell

SP solar cell

Maximum voltage (VMP)

33V

Maximum Current (IMP)

6.06A

Open circuit voltage (VOC)

39.6V

Short circuit current (ISC)

6.67A

Size

1440x790x3mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5



Instructions:

  1. Put the solar panel in the correct position to ensure that the sunlight is not covered by other objects;
  2. Please keep it clean and clean regularly to prevent covered foreign bodies. In this case, it may not work properly;
  3. The standard solar lighting: solar radiation intensity 1000 w/m2, temperature 25 ℃, AM = 1.5.
