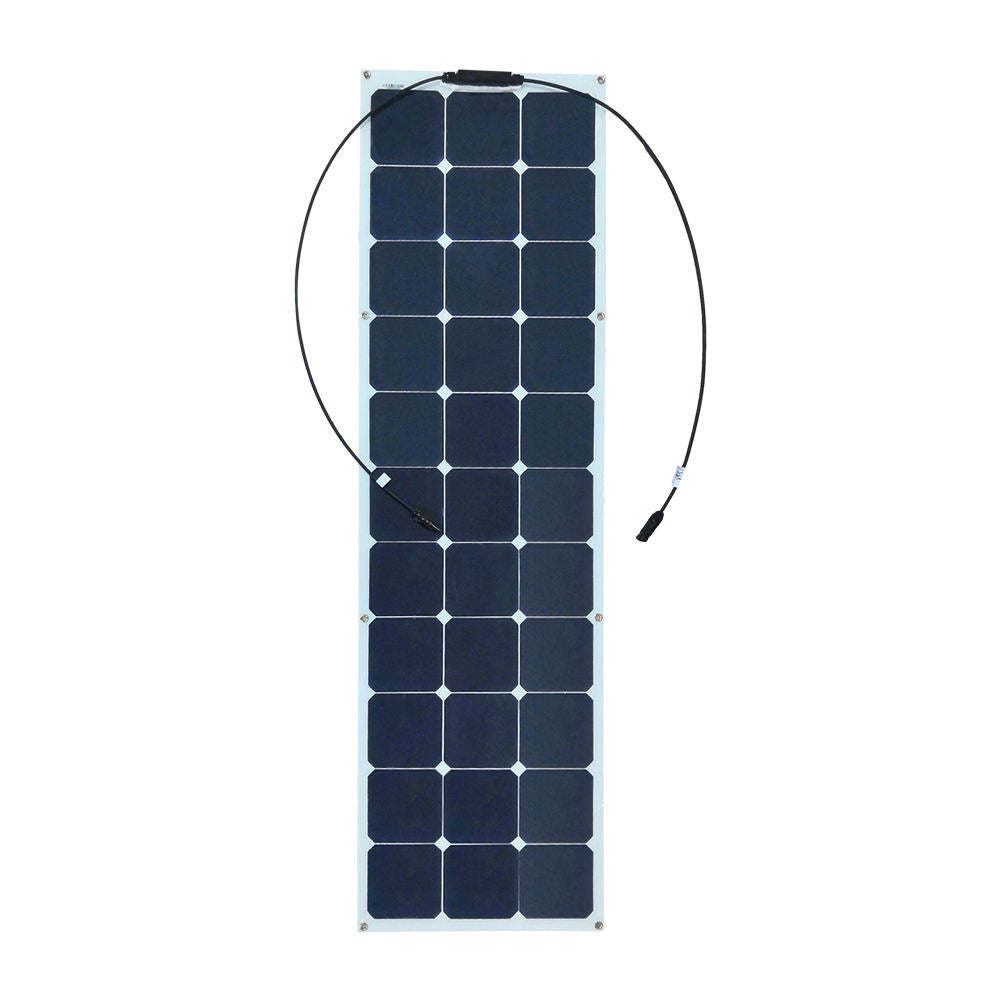

Solarparts@ 19.4V 108W PET Semi-flexible Solar Panel -1445X415X3mm
Solarparts@ 19.4V 108W PET Semi-flexible Solar Panel -1445X415X3mm
Solarparts@ 19.4V 108W PET Semi-flexible Solar Panel -1445X415X3mm

Solarparts@ 19.4V 108W PET Semi-flexible Solar Panel -1445X415X3mm

 Solarparts@_Flexible Series Solar Pane adopts SP highest-efficiency solar cells. It delivers the most power and highest charging efficiency in their product class. SP cells are different from conventional cells. Traditional cells are prone to cracking when bent or impacted, resulting in power loss, but flexible panels made with SP cells can resist power loss due to bending and squeezing. Solarparts@_Flexible Series Solar Panels are the best choice for customers due to the combination of high power and cell ruggedness.



Solarparts@ Flexible Series Solar Panel

Model: PG-SP-FSP-108W

Product Description:

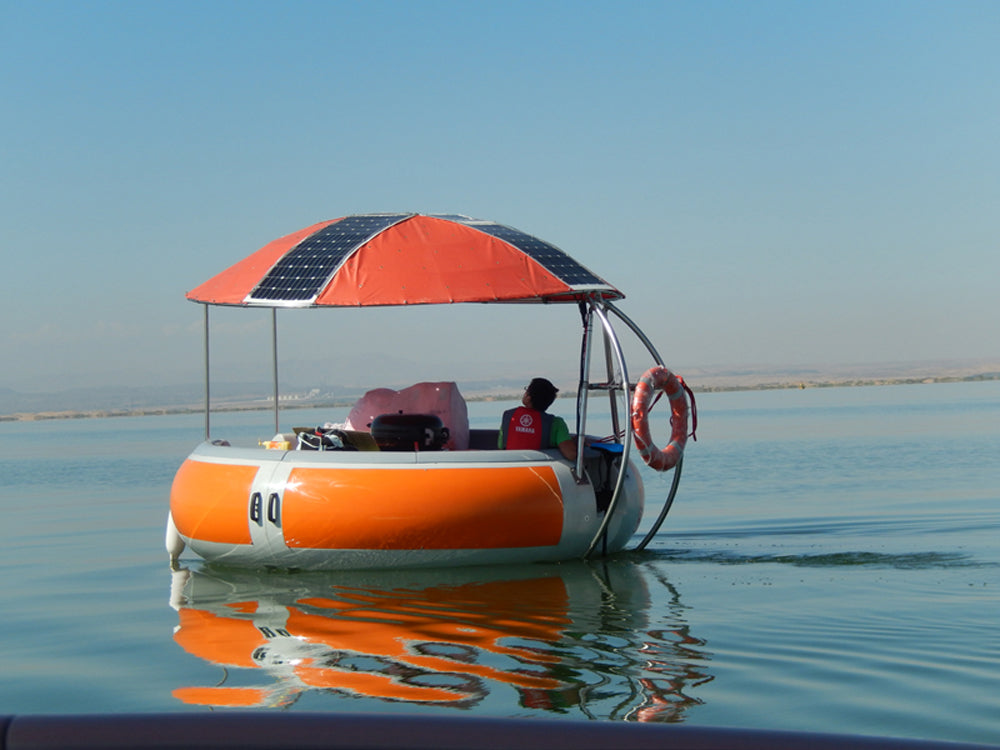

1. Flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.

2.  The junction box is sealed and waterproof. The Panel is highly stain-resistant and easily gets cleaned by the rain. Highly resistant to the harsh operating conditions of a marine environment.

3. It laminated with PET film at surface; it's very thin and lightweight, easy to transport and remove

4.  stainless eyelets at the edges for easy installation; can be easily affixed by adhesives, silicon glues, double sticky tape, zip ties or velcro.

5. Application -- Designed for 12V batteries, ideal for trailers, boats, cabins, tents, cars, trucks, trailers, yachts, trailers, roofs, or any other irregular surface.



The standard specification

Maximum power (pmax)

108W

Solar cell

SP solar cell

Maximum voltage (VMP)

18.15V

Maximum Current (IMP)

5.95A

Open circuit voltage (VOC)

21.78V

Short circuit current (ISC)

6.55A

Size

1445x415x3mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5
