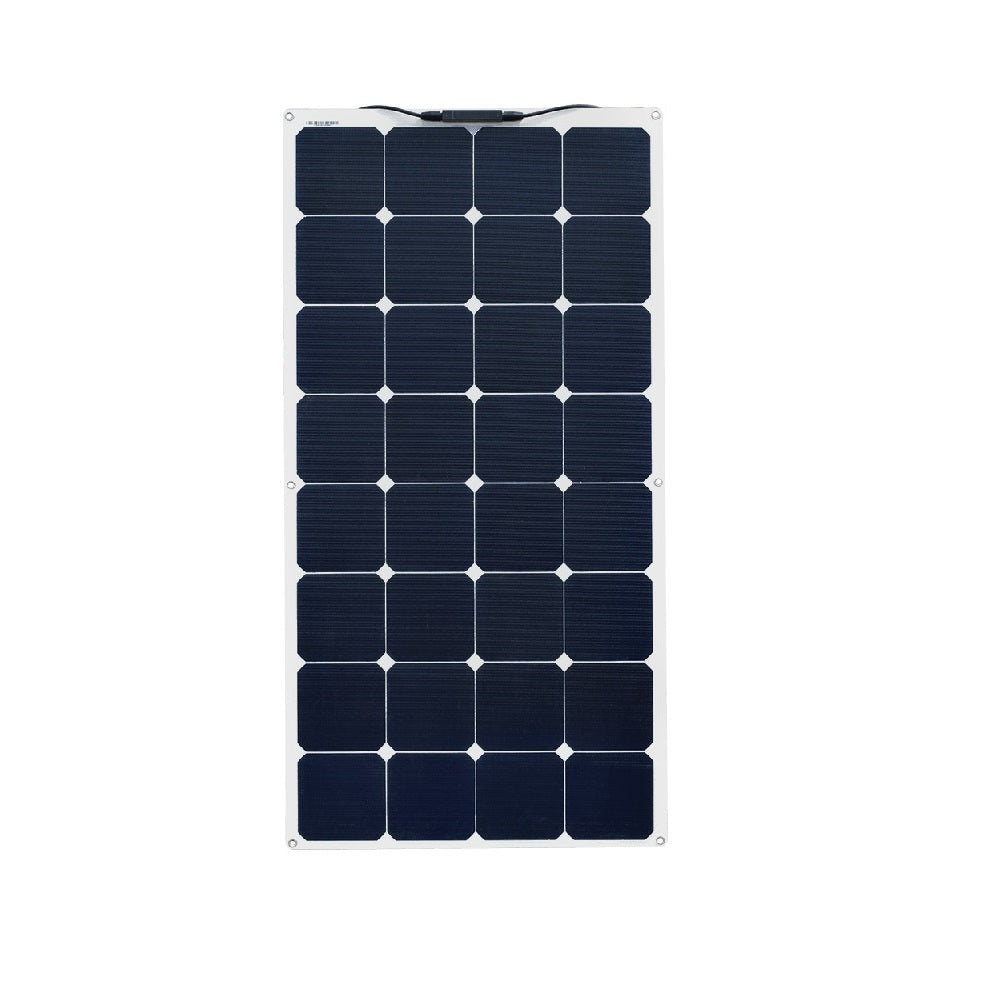

Solarparts@ 18V 100W Semi Flexible Solar Panel- 1050*540*3mm
Solarparts@ 18V 100W Semi Flexible Solar Panel- 1050*540*3mm

Solarparts@ 18V 100W Semi Flexible Solar Panel- 1050*540*3mm

Solarparts@ Flexible solar panels is a kind of glass-free solar panels. Compared with glass laminated solar panel, this flexible solar panel which laminated a very thin and transparent PET/ETFE film on the surface.  It is very thin & light, making it a ideal solar panel for marine use or placed on top of a truck or vehicle.  And it's easy to transport, install, hang and disassemble.



Solarparts@ Flexible Series Solar Panel

Model: PG-SP-FSP-100W

Product Description:

1. It adopt high quality mono cells, which with more flexibility and higher conversion rate.

2. The Panel is highly stain-resistant and easily gets cleaned by the rain. Highly resistant to the harsh operating conditions of a marine environment.

3. 6 stainless eyelets at the edges for easy installation; can be easily affixed by adhesives, silicon glues, double sticky tape, zip ties or velcro.

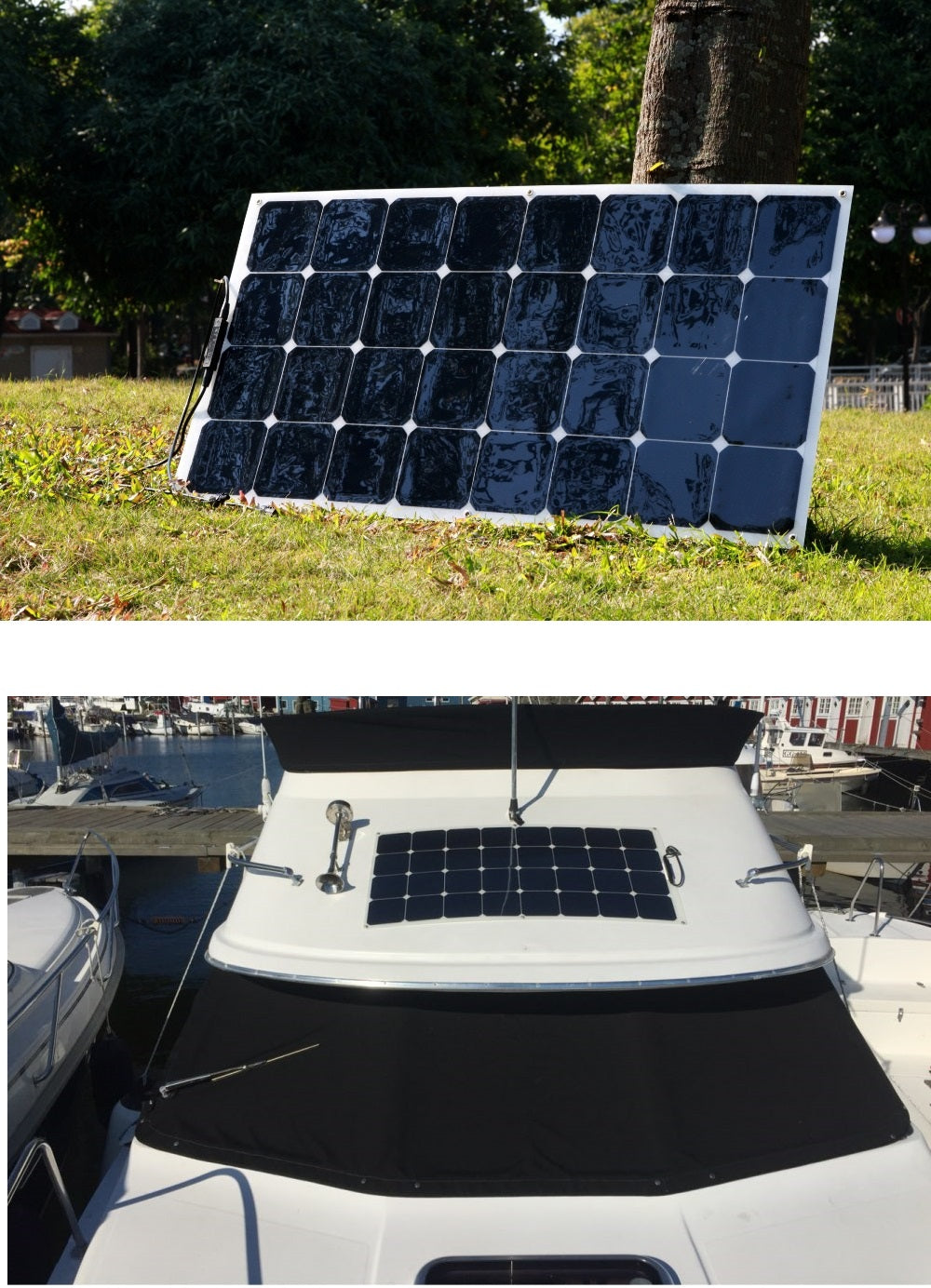

4. Application -- Designed for 12V batteries, ideal for trailers, boats, cabins, tents, cars, trucks, trailers, yachts, trailers, roofs, or any other irregular surface.

The standard specification

Maximum power (pmax)

100W

Solar cell

SP solar cell

Maximum voltage (VMP)

17.6V

Maximum Current (IMP)

5.68A

Open circuit voltage (VOC)

21.1V

Short circuit current (ISC)

6.07A

Size

1050x540x3mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5
