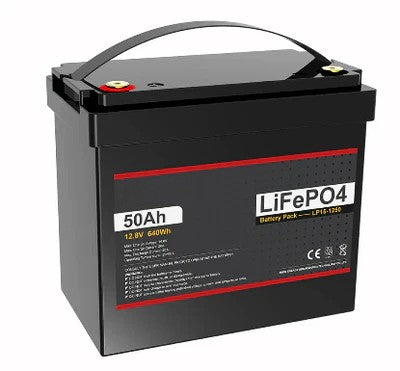

Solarparts@LiFe PO4 lithium battery 12.8V 50Ah
Solarparts@LiFe PO4 lithium battery 12.8V 50Ah

isolarparts

Solarparts@LiFe PO4 lithium battery 12.8V 50Ah

Precio de venta

Features:

1. 4000 cycles @80% DoD for effectively lower total of ownership cost;

2. Low maintenance batteries with stable chemistry;

3. Battery Management System (BMS) is incorporated against abuse;

4. up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation;

5. Save time and increase productivity with less down time thanks to superior charge/discharge efficiency;

6. Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C;

7. Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

Application

•Caravan
•Marine
•Golf Car
•Buggies
•Solar Storage
•Remote Monitoring
•Switching applications and more


 Specification

Model  JX220802
Nominal voltage 12.8V
Nominal Capacity 50Ah
Nominal energy 640Wh
Life Cycles 4000+ (80% DoD for effectively lower total of ownership cost)
Recommended Charge Voltage 14.6V
Recommended Charge Current 20.0A
End of discharge voltage 10.0V
Standard method Charge 10.0A
Discharge 25.0A
Maximum continuous current Charge 50.0A
Discharge 50.0A
BMS Cut-Off Voltage Charge <15.6 V (3.9V/Cell)
Discharge >8.0 V (2s) (2.0V/Cell)
Temperature Charge -4 ~ 113 ℉ (0 ~ 45℃ )
Discharge -4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature 23~95 ℉ (-5~35℃ )
Shipment voltage ≥12.8V
Case Material ABS+PC
Dimension (L x W x H) 228 x 144 x 210 mm
9.0 x 5.7 x 8.3”
Approx. Weight 16.53 lbs (7.5 kg)
