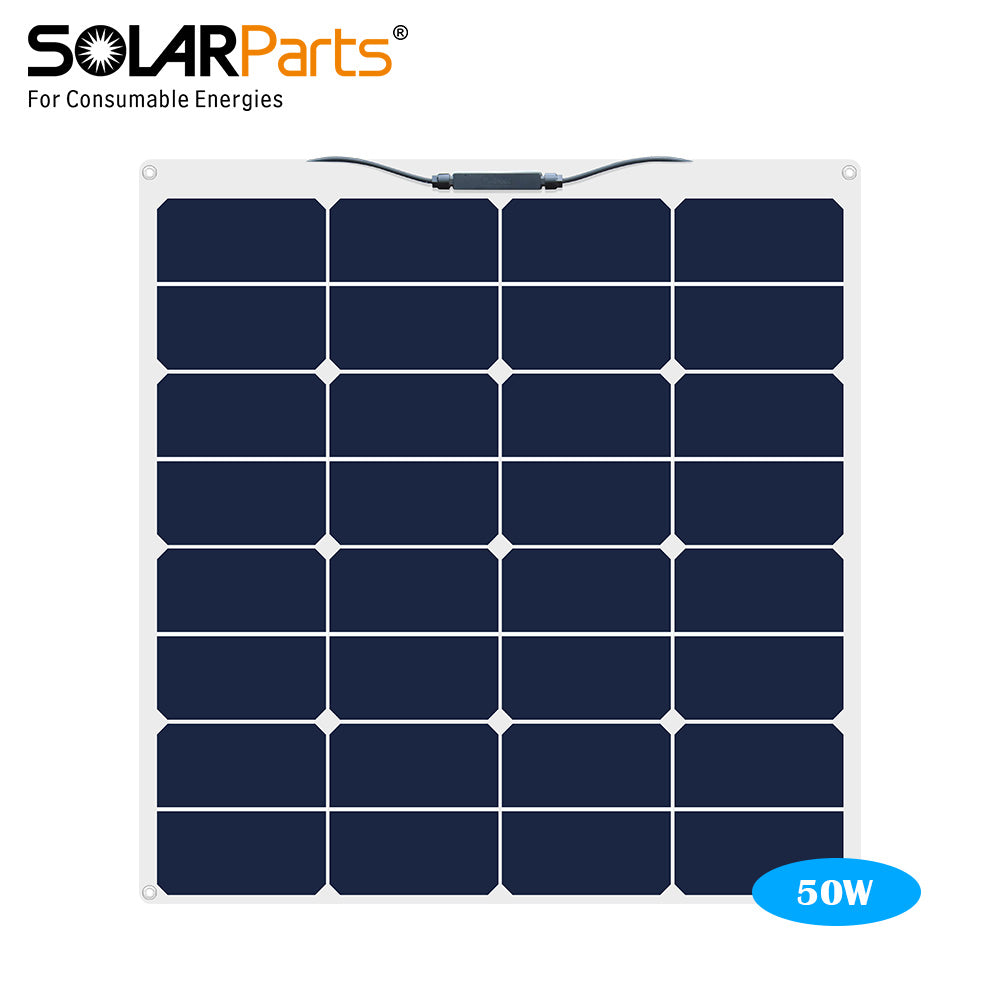

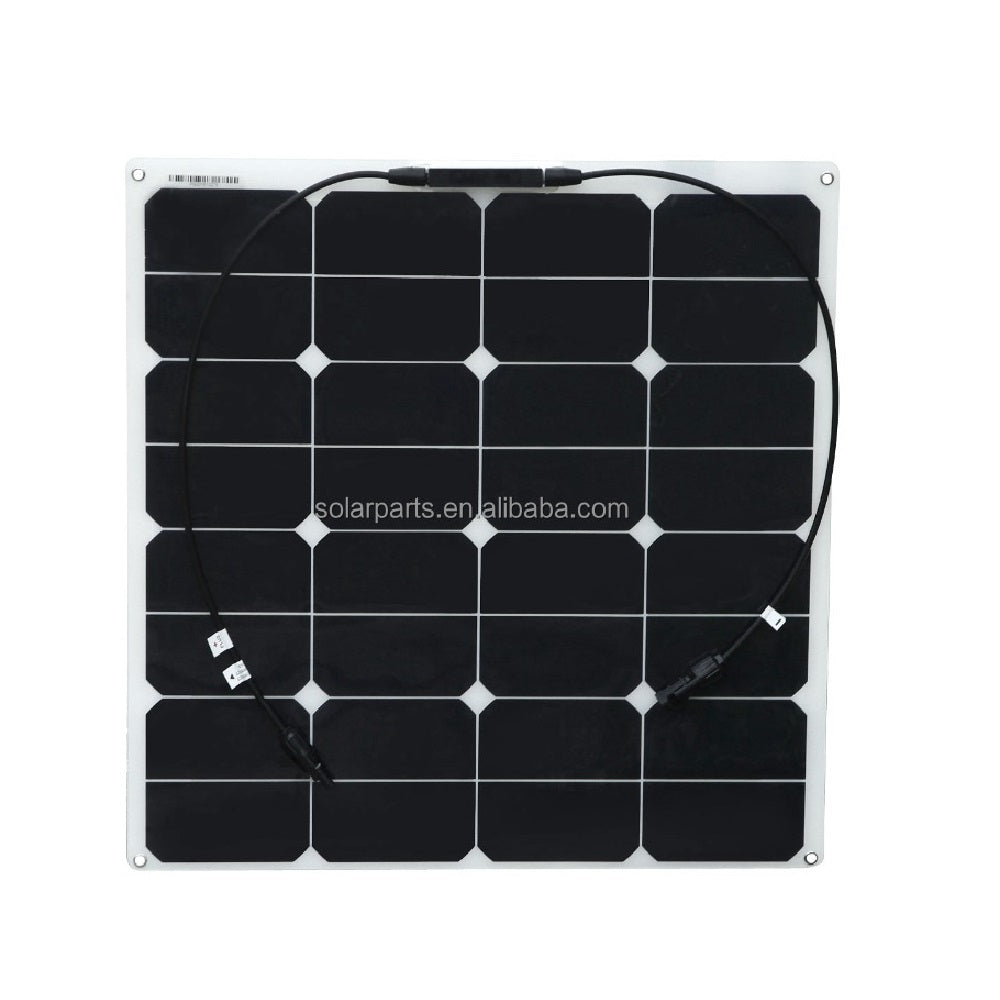

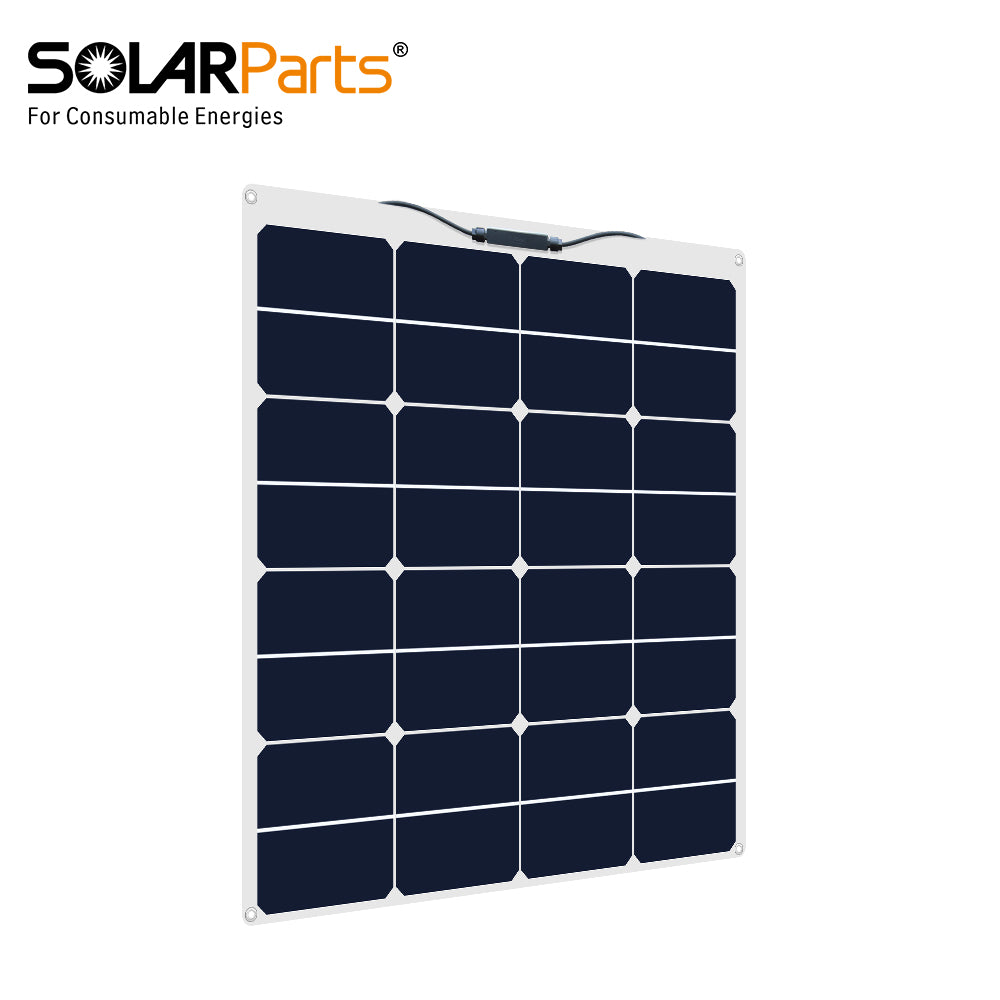

Solarparts@ Sunpower Flexible Solar Panel PET 18V 50W 545x535x3mm

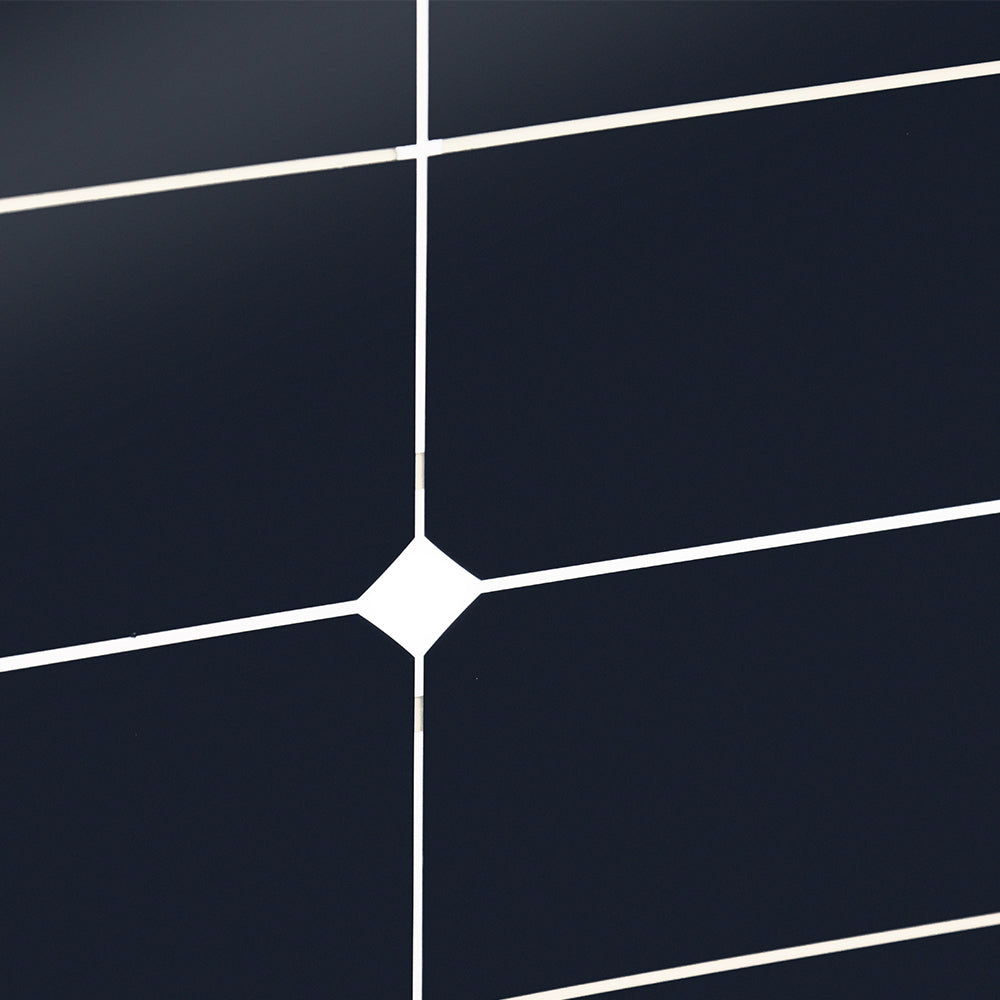

SP highest-efficiency solar cells and top-grade lightweight polymer materials are used to guarantee its high flexibility and adaptability.
Solarparts@ Flexible Series Solar Panel
Model: PG-SP-FSP-50W
Product Description：
Low degradation

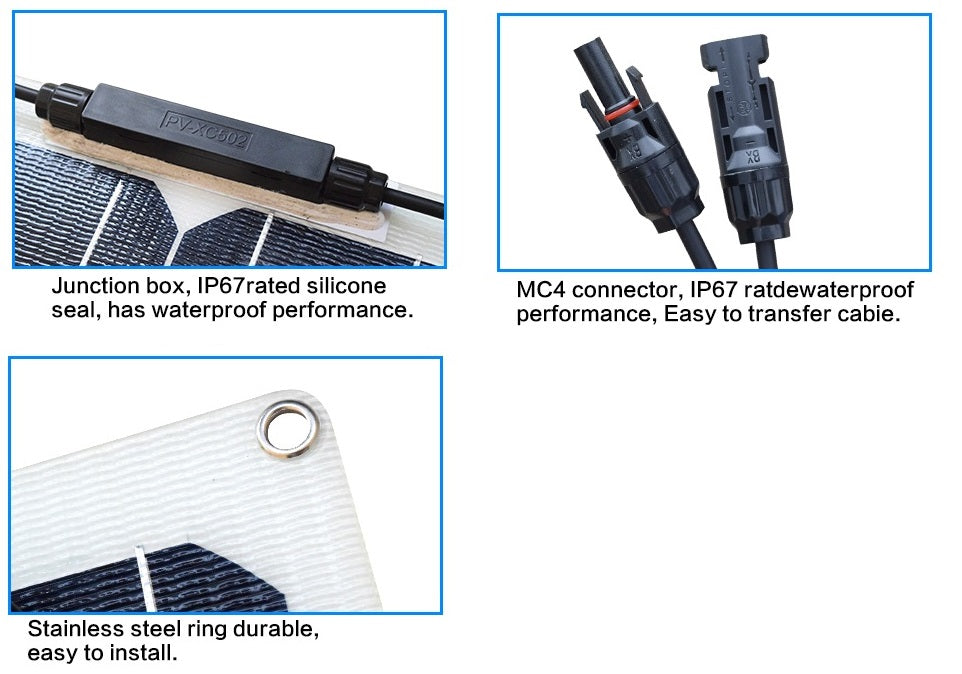

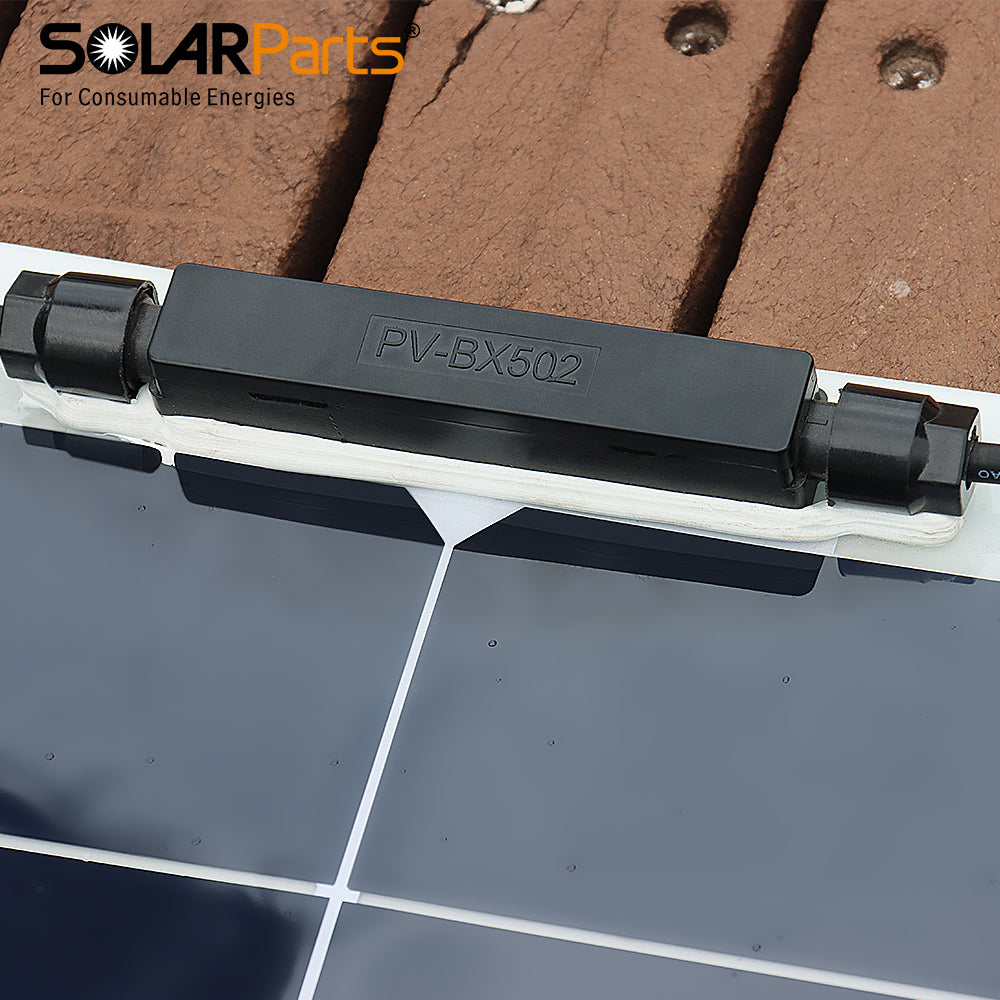

With IP65 junction box, resist power loss due to bending and squeezing.

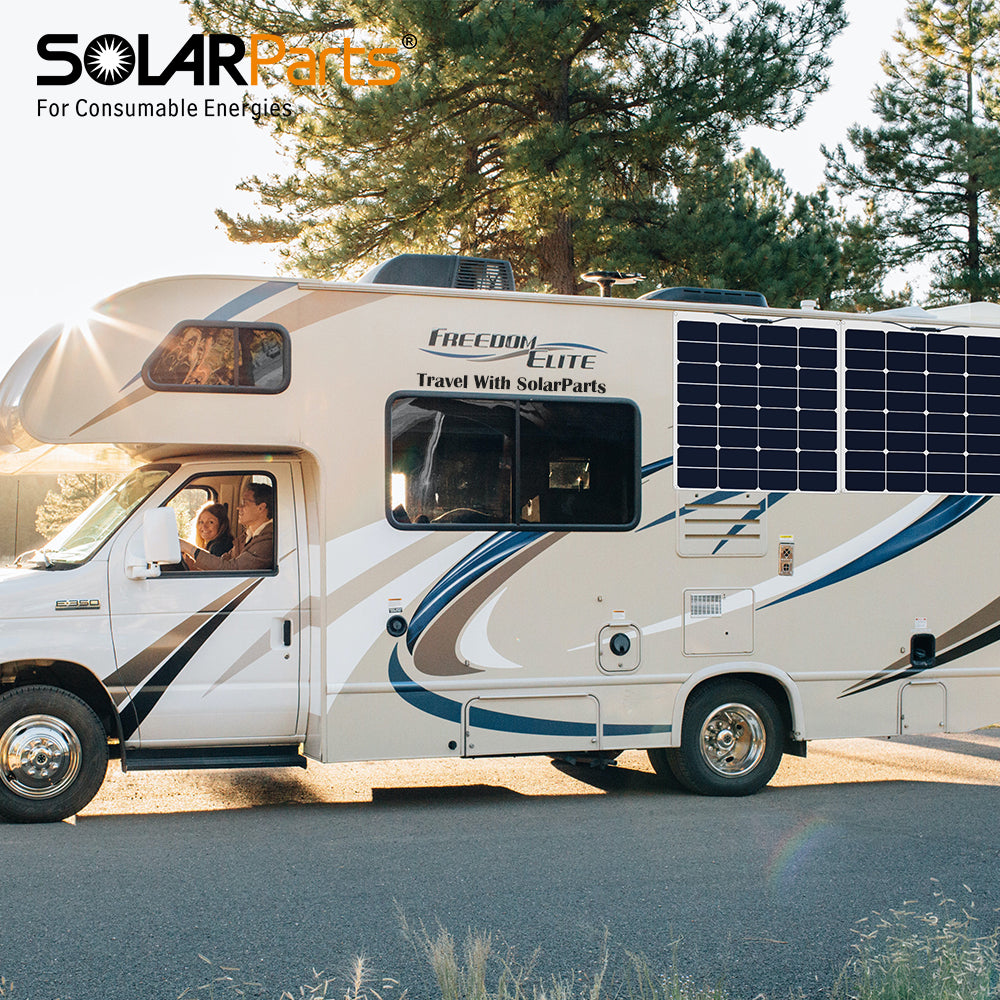

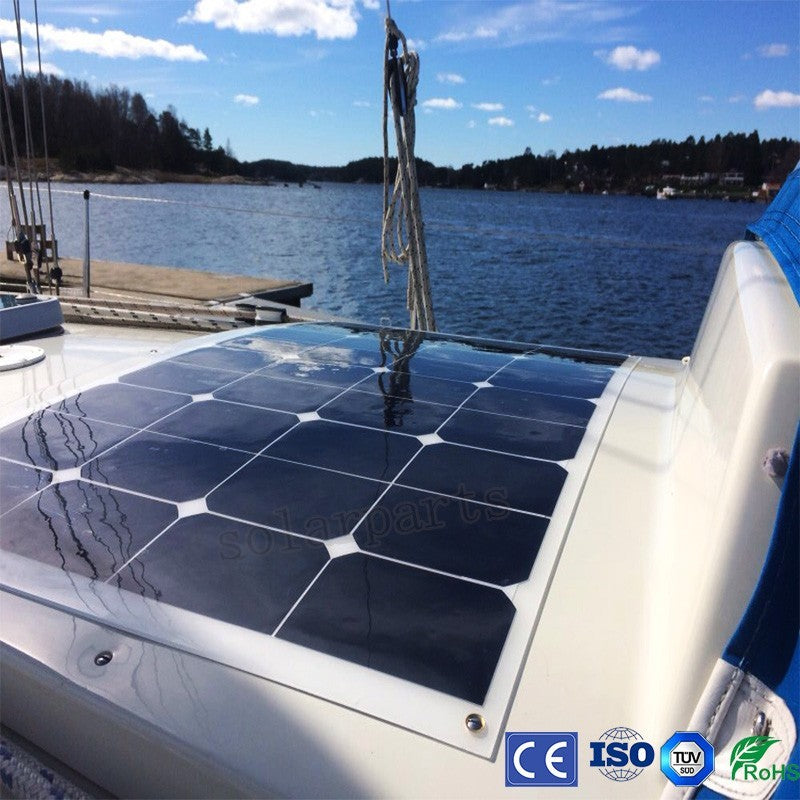

Powerfully flexible
Maximum flexibility up to 30 degrees, ideal for installation on most curved surface.
Fully compatible
Easily connect to various devices, fully compatible with mainstream inverters and trackers, with no system matching issues.

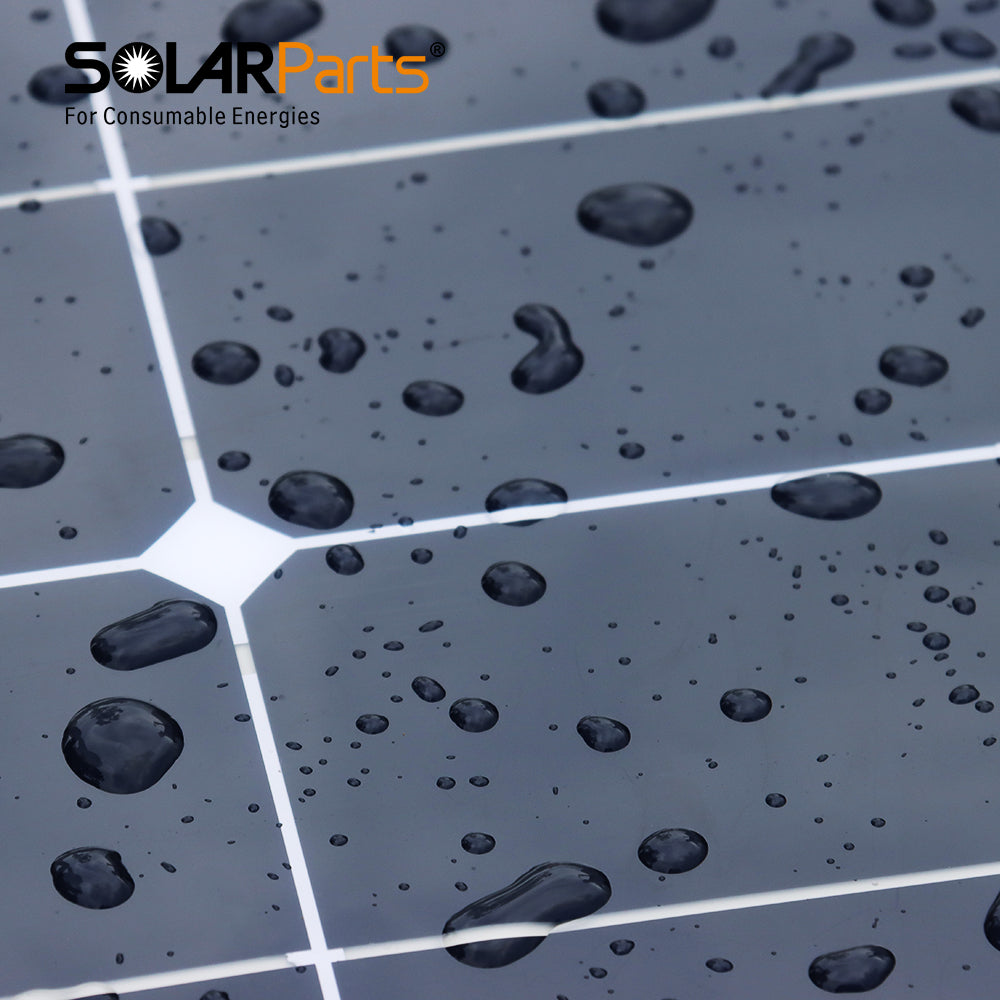

Long durability
With high light transmittance and excellent outdoor performance to give its longevity.
Easy Transportation
Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.
The standard specification
|
Maximum power (pmax) |
50W |
|
Solar cell |
SP solar cell |
|
Maximum voltage (VMP) |
17.6V |
|
Maximum Current (IMP) |
2.84A |
|
Open circuit voltage (VOC) |
21.1V |
|
Short circuit current (ISC) |
3.12A |
|
Size |
555x535x3mm |
|
Surface |
Customizable (ETFE/PET/TPT) |
|

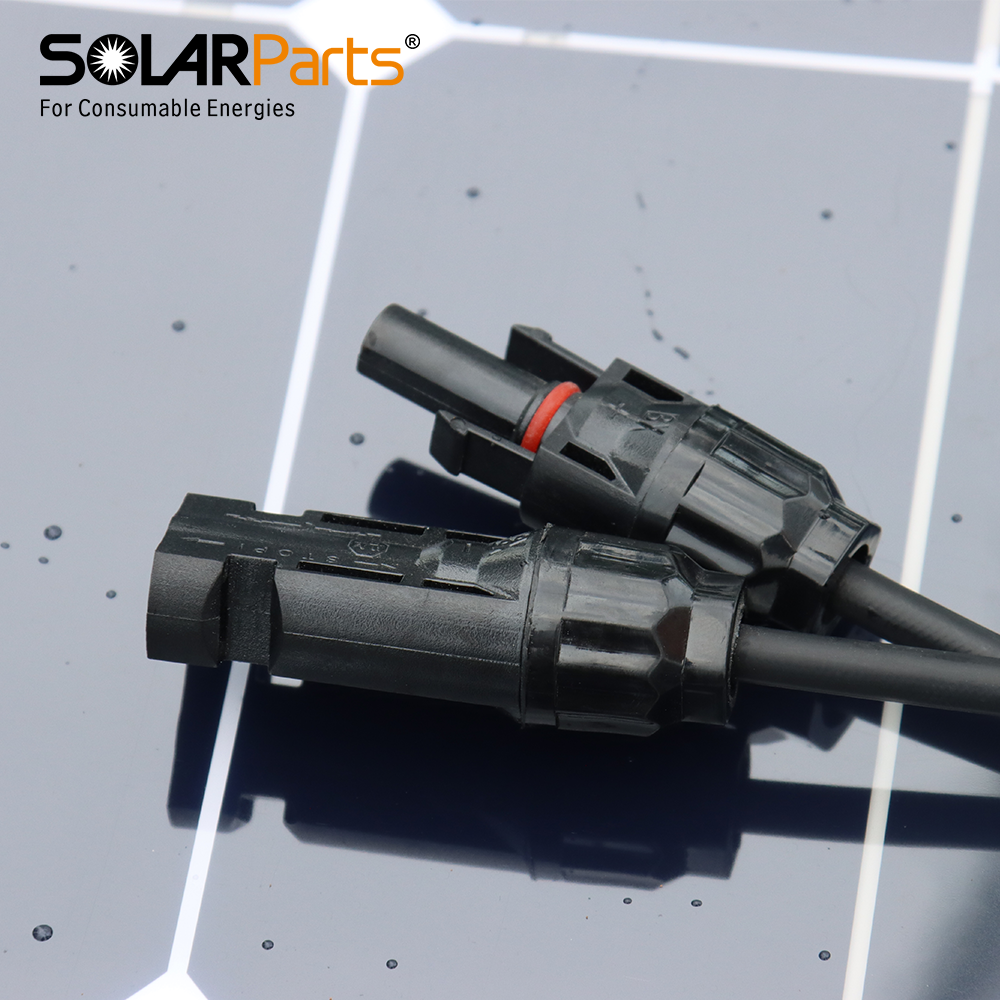

Output Interface |
Customizable (USB /DC/MC4) |
|
Standard test condition |
lrradiance 1000 W/m^2, temperature degrees deg am = 1.5 |
