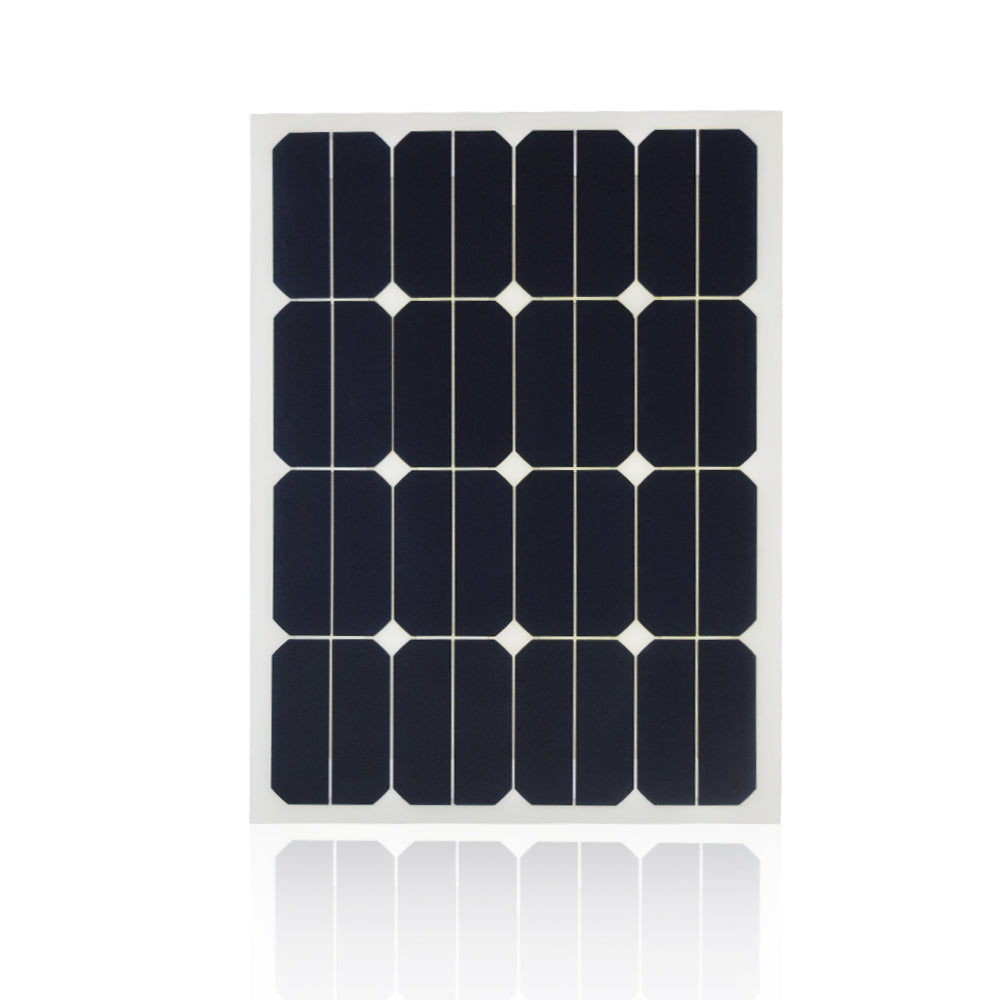

Solarparts@ 18V 30W Semi-Flexible Solar Panel -535x380x3mm
Solarparts@ 18V 30W Semi-Flexible Solar Panel -535x380x3mm

solarparts

Solarparts@ 18V 30W Semi-Flexible Solar Panel -535x380x3mm

Precio de venta

SP highest-efficiency solar cells and top-grade lightweight polymer materials are used to guarantee its high flexibility and adaptability.



Solarparts@ Flexible Series Solar Panel

Model: PG-SP-FSP-30W

Product Description:

Low degradation

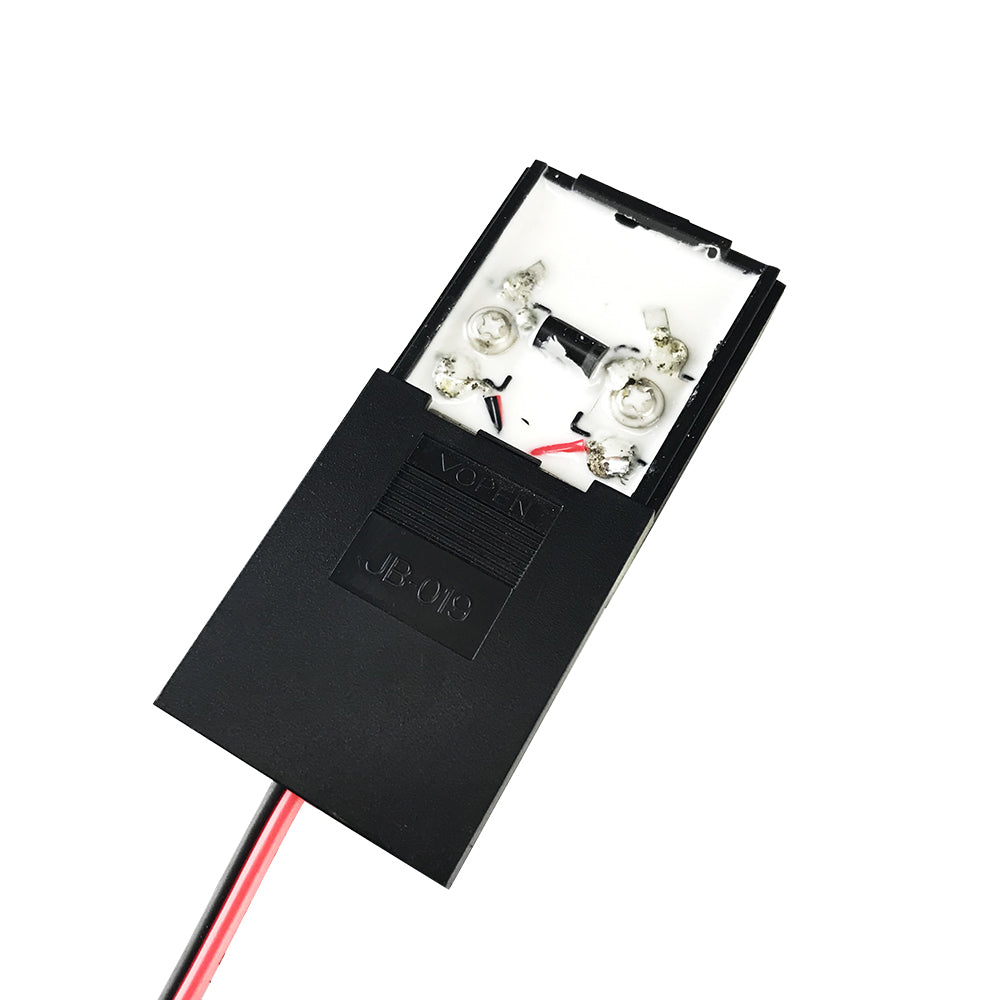

With IP65 junction box, resist power loss due to bending and squeezing.



Fully compatible

Easily connect to various devices, fully compatible with mainstream inverters and trackers, with no system matching issues.

Long durability

With high light transmittance and excellent outdoor performance to give its longevity.

Easy Transportation

Smart module packaging solutions are used to achieve high reliability, low-cost transportation and logistics.

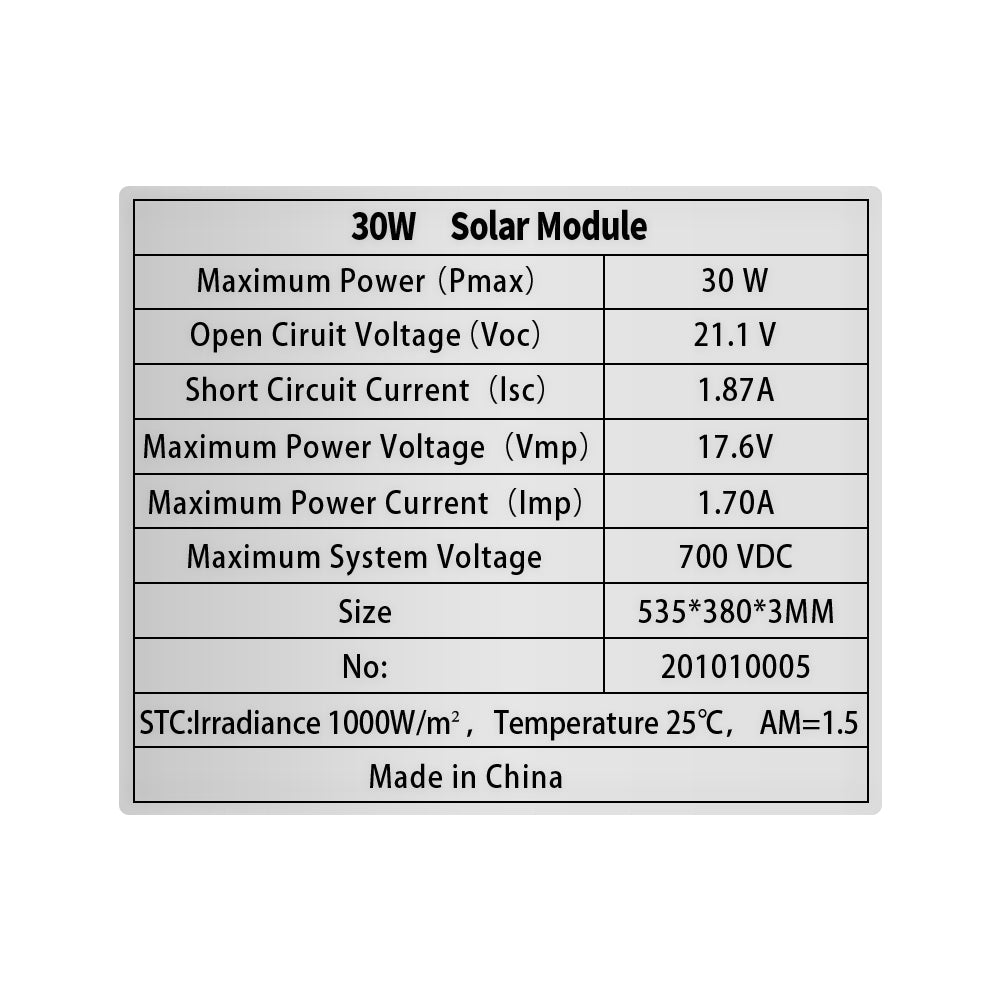

The standard specification

Maximum power (pmax)

30W

Solar cell

SP solar cell

Maximum voltage (VMP)

17.6V

Maximum Current (IMP)

1.71A

Open circuit voltage (VOC)

21.1V

Short circuit current (ISC)

1.88A

Size

535x380x3mm

Surface

Customizable (ETFE/PET/TPT)

Output Interface

Customizable (USB /DC/MC4)

Standard test condition

lrradiance 1000 W/m^2, temperature degrees deg am = 1.5
